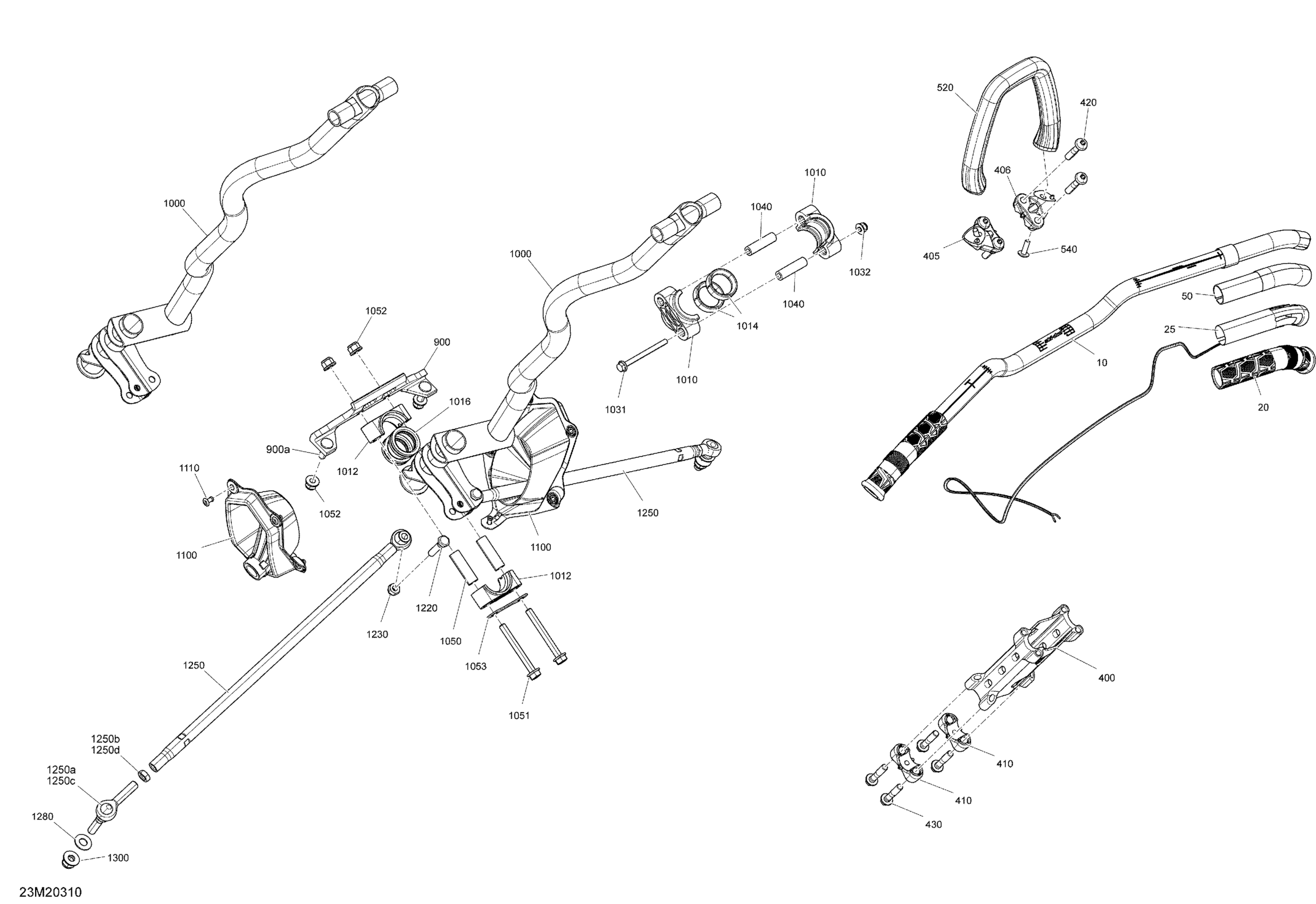

Ski-Doo SUMMIT 850 E-TEC Turbo - 2020 Steering - System Diagram

#

Description
Price

10

Black, Handlebar This part replaces 506153137.

506153219

Unavailable

20

Grip 148 mm

506153134

$23.05

25

Heated Film

506153135

$36.89

50

Thermal Insulation

506153177

$5.62

400

Riser Kit

860201632

$86.99

405

LH Handle Bar Support

506152867

$12.86

406

RH Handle Bar Support

506152928

$12.48

410

Steering Support

506152894

Unavailable

420

Button Head Torx Screw M8 X 38

250000904

Unavailable

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

Unavailable

520

Moulding Strap Ass'y

506153133

$49.20

540

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

900

Support Plate | Includes 900 to 900a

506152787

Unavailable

900a

Clinch Stud

250300038

Unavailable

1000

Tube Main

506153083

Unavailable

1010

Upper Half Housing

506152219

Unavailable

1012

Lower Half Housing

506153048

Unavailable

1014

Upper Vibration Ring

506152292

Unavailable

1016

Lower Vibration Ring

506152518

Unavailable

1031

Hex. Flange Screw M6 x 75

250001114

Unavailable

1032

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1040

Housing Bushing

506152297

Unavailable

1050

Housing Bushing

506152937

Unavailable

1051

Hex. Flange Screw M8 X 70

207687044

Unavailable

1052

Hex. Elastic Flange Nut M8

233281416

Unavailable

1053

Stopper Plate

506152938

Unavailable

1100

Cap

506153294

Unavailable

1110

Pop Rivet 3/16"

293150008

Unavailable

1220

Hex. Screw M8 X 35

207083544

Unavailable

1230

Hex. Elastic Stop Nut M8

232581414

Unavailable

1250

Tie Rod Ass'y | Includes 1250 to 1250f

506153140

$73.82

1250a

LH Threaded Ball Joint

506152344

Unavailable

1250b

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

1250c

RH Threaded Ball Joint

506152684

Unavailable

1250d

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

1280

Washer

506152582

Unavailable

1300

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable
