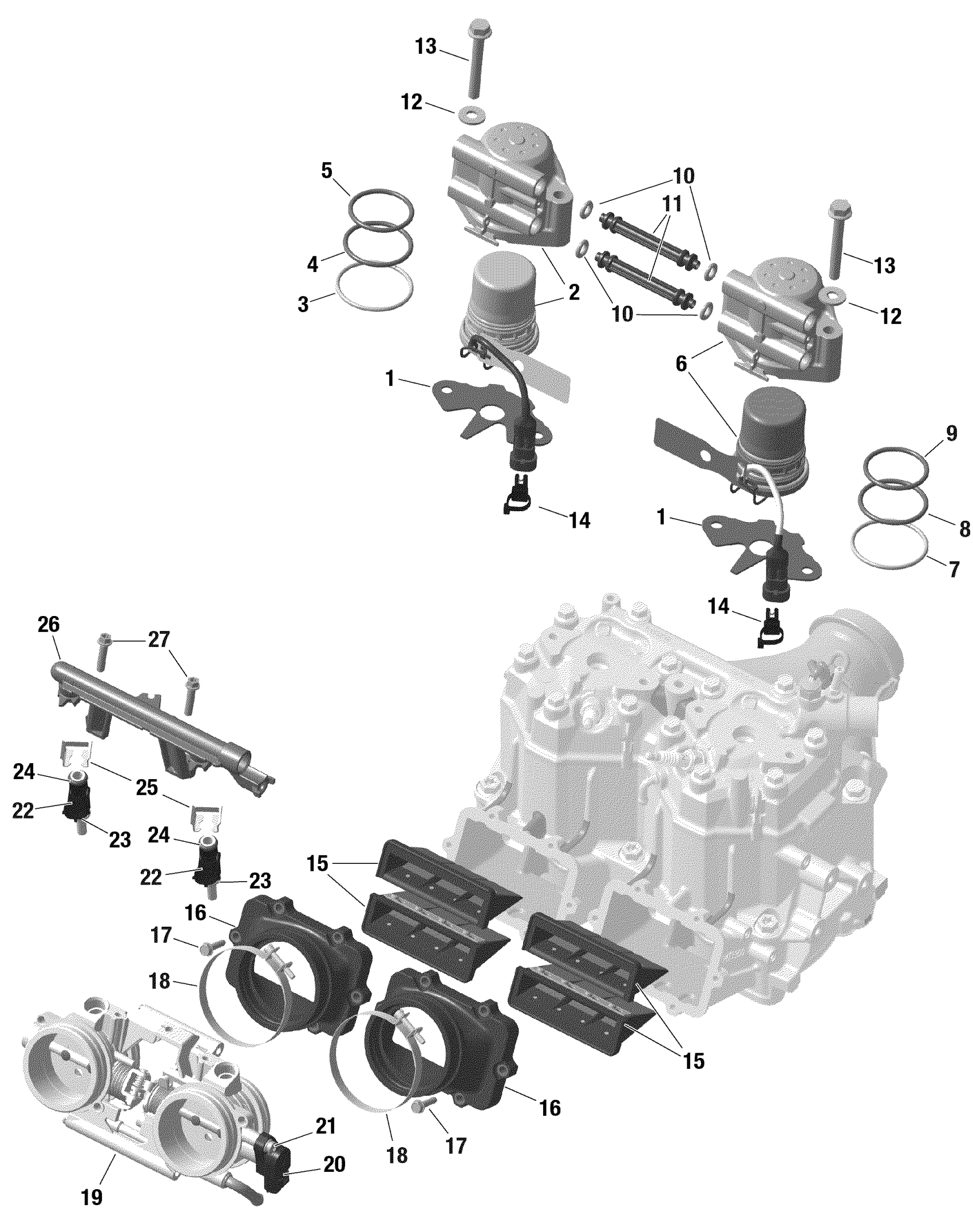

Ski-Doo SUMMIT 850 E-TEC Turbo - 2020 Engine - EFI - 849 Diagram

#

Description
Price

1

Gasket

420430056

$7.80

2

Injector PTO | Includes 2 to 5

420874863

$513.82

3

Crush Ring

415129497

$7.38

4

O-Ring

415129498

$12.51

5

O-Ring

415129499

$6.82

6

Injector MAG | Includes 6 to 9

420874864

$513.82

7

Crush Ring

415129497

$7.38

8

O-Ring

415129498

$12.51

9

O-Ring

415129499

$6.82

10

O-Ring

420430775

$3.38

11

Tube

420874190

$5.22

12

Washer

420901550

$2.06

13

Screw M8X60

420840096

$2.06

14

Tie Rap

420951785

$4.28

15

Reed Valve Ass'y

420924798

$39.20

16

Intake Socket

420867390

$109.20

17

Tapping Screw M5 X 22

420841550

$1.68

18

Clamp

420251209

$8.34

19

Throttle Body Socket | Includes no. 18-20

420685754

$355.35

20

Throttle Valve Position Sensor | Includes no. 2-3

420866680

$66.89

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Injection Valve Ass'y | Includes 18 to 20

420874887

$166.24

23

O-Ring

420431890

$4.95

24

O-Ring

420631220

$11.48

25

Injector Clip

420853030

$2.46

26

Fuel Rail

420874155

$23.05

27

Torx Flange Screw M6 X 25

420440234

$3.00
