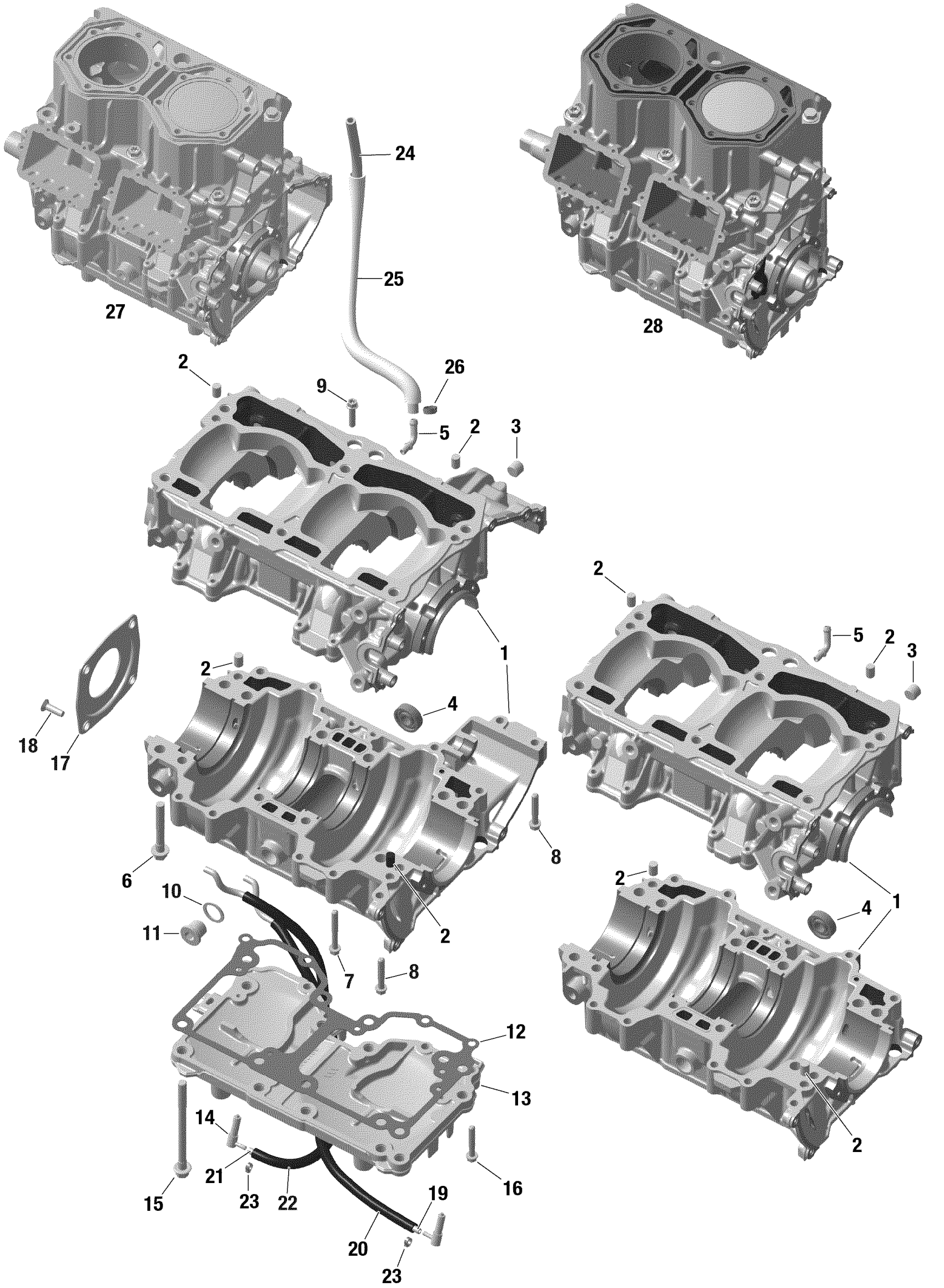

Ski-Doo SUMMIT 850 E-TEC Turbo - 2020 Engine - Crankcase - 849 Diagram

#

Description
Price

1

Crankcase | Includes 1 to 6

420893779

$1,194.58

2

Center Pin 8 X 12

420632010

Unavailable

3

Plug Screw M12x1,5

420840658

$7.31

4

Ball Bearing

420232100

Unavailable

5

Impulse Fitting

420924529

Unavailable

6

Hex. Screw M8 X 56.5

420941627

$8.34

7

Torx Flange Screw M6 X 45

420440324

$0.81

8

Torx Flange Screw M6 X 35

420440274

Unavailable

9

Torx Flange Screw M6 X 25

420440234

Unavailable

10

O-Ring

420430622

$3.61

11

Plug Screw

420640457

$14.54

12

Engine Support Gasket | Included in gasket kit

420430072

$23.82

13

Engine Support

420812688

$103.82

14

Check Valve

420956511

$28.57

15

Screw M8x105

420941518

$10.45

16

Torx Flange Screw M6 X 35

420440274

Unavailable

17

Oil Seal Cover

420812422

Unavailable

18

Screw M6 X 20

420941436

Unavailable

19

Oil Line 585 mm This part replaces 420201921.

420201928

Unavailable

20

Tube 390MM

420460042

Unavailable

21

Oil Line 585 mm This part replaces 420201921.

420201928

Unavailable

22

Slider Shoe This part replaces 420460045.

417223021

$6.09

23

Clamp

420851508

$12.52

24

Oil Line 310MM

420201551

$7.31

25

Protector Tube

420460047

$12.52

26

Clamp

420853653

Unavailable

27

Engine

420084914

Unavailable

27

Engine 849

420084947

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable
