Description

Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10b

415130720

Unavailable

10e

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10f

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10k

RH Rear Suspension Support

518332254

$102.28

10m

LH Rear Suspension Support

518332253

$102.28

10n

RH Footrest Reinforcement

518329789

$18.43

10p

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

10s

RH Roller

518329648

$180.74

10t

LH Roller

518328452

Unavailable

10u

RH Tunnel Liner

518329646

$33.05

10v

LH Tunnel Liner

518329647

$33.05

10y

Radiator Tunnel 154

518335121

Unavailable

10z

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

10ac

Rear Cap

518332481

$76.89

10ae

RH Footrest

518331822

$23.05

10af

Black, Dart 8 mm

293730047

Unavailable

10ag

Black, Dart 10 mm

293730060

Unavailable

10ah

Black, Plug

293730052

Unavailable

10aq

Rivet Avibulb 3/16

293150203

Unavailable

10at

Hemlock Rivet, 6.5 mm

293150096

$3.17

10au

Hemlock Rivet, 6.5 mm

293150119

$4.00

10av

Hemlock Rivet, 6.4 mm

293150174

$6.43

10aw

Collar Huck Magna-Grip 6.4

293150149

Unavailable

20

Black, Plug

293730052

Unavailable

30

Flat Washer 8 mm

234081410

Unavailable

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

Unavailable

42

Torx Head Screw M6 X 16

250000717

Unavailable

70

Hex Screw M8 X 30

250000942

Unavailable

75

Hemlock Rivet, 6.5 mm

293150096

$3.17

80

Flat Washer 8 mm

234081410

Unavailable

90

Hex. Flange Elastic Nut M8

233281414

Unavailable

95

Insert

293450275

Unavailable

96

Insert

293450275

Unavailable

100

Engine Chassis Module Ass'y | Includes 100 to 100n

518332722

Unavailable

100a

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

100b

Leg Bushing

505072690

Unavailable

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

Unavailable

100d

Leg Bushing

505072690

Unavailable

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

100f

Collar Huck Magna-Grip 6.4

293150149

Unavailable

100g

Bottom Plate

518332716

Unavailable

100h

Rivet Avibulb 3/16

293150203

Unavailable

100j

Insert M5 X 0.8

293450268

Unavailable

100m

Hex. Flange Screw M6 X 25

250000945

Unavailable

100n

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

110

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

115

Hex. Flange Screw M6 X 20

207662046

Unavailable

120

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

125

Hemlock Rivet 6.5 mm

293150120

$7.23

127

Rivet 6,4 mm

293150173

$3.38

128

Hemlock Rivet, 6.5 mm

293150119

$4.00

130

Hex. Flange Elastic Nut M8

233281414

Unavailable

140

Hex. Flange Screw M6 X 20

207662046

Unavailable

150

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

170

Insert M5 - 0.8

293450267

Unavailable

180

Hex. Flange Screw M6 X 16

207661646

Unavailable

200

Lateral Reinforcement

518332541

Unavailable

205

Hex. Flange Screw M8 X 20

207682044

Unavailable

210

Hex. Nut M8

232081414

Unavailable

230

Hex. Flange Screw M6 X 20

207662046

Unavailable

300

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

300a

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

Unavailable

400

Chassis Suspension Module | Includes 400 to 400b

518331592

Unavailable

400a

Insert

293450275

Unavailable

400b

Rivet Avibulb 3/16

293150203

Unavailable

405

Screw Hex M10 X 30

250001148

Unavailable

406

Flat Washer 10 mm

234001410

Unavailable

420

Hex. Flange Elastic Nut M10

250100165

Unavailable

425

Hex. Flange Screw M6 X 20

207662046

Unavailable

430

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

435

Hex. Flange Screw M6 X 20

207562056

Unavailable

500

Front Bottom Plate

518331615

Unavailable

510

Insert M5 X 0.8

293450268

Unavailable

540

Avex Rivet

390909100

$0.29

545

Rivet 6,4 mm

293150173

$3.38

800

LH Under Chassis Reinforcement

518332514

$11.00

810

RH Under Chassis Reinforcement

518332516

$11.00

820

Cross Member Support

518331733

$30.74

830

Hemlock Rivet, 6.5 mm

293150119

$4.00

850

Hemlock Rivet, 6.5 mm

293150119

$4.00

860

Deep Black LH Rear Footrest Reinforcement

518330858

$16.89

865

Deep Black, RH Rear Footrest Reinforcement

518335169

Unavailable

875

Rivet

293150183

$2.06

880

Rivet Magna-Grip 6,4 X 50,8

293150148

Unavailable

885

Collar Huck Magna-Grip 6.4

293150149

Unavailable

900

Deep Black, LH Diagonal Cross Member Ass This part replaces 518333270.

518331725

$108.43

910

Deep Black, RH Diagonal Cross Member Ass This part replaces 518333271.

518331726

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1100

Upper Colomn Support

518329974

Unavailable

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

Unavailable

1120

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

1130

Hex. Flange Screw M6 X 25

207662556

Unavailable

1140

Hex. Flange Screw M6 X 20

207662046

Unavailable

1160

Hemlock Rivet, 6.5 mm

293150119

$4.00

1170

Muffler Support Ass'y

518334031

Unavailable

1700

Front Protector

518329982

Unavailable

1710

Pop Rivet 3/16”

293150108

$1.23

3040

Dart

293730079

$1.92

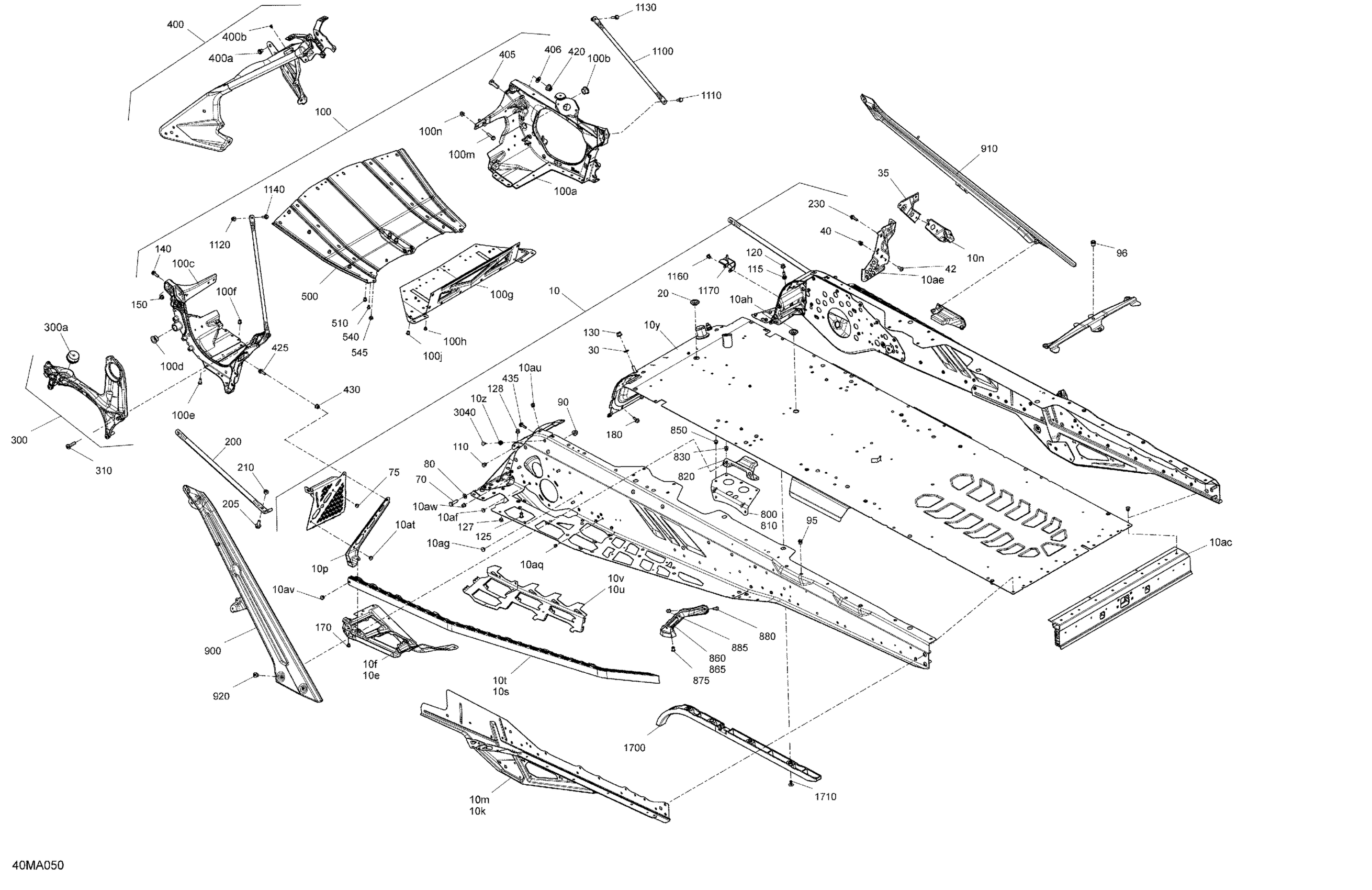

Ski-Doo SKANDIC SWT 600R E-TEC - 2021 Frame - System - SWT Diagram

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10b

LH Roller

Radiator Tunnel 154

Insert Half Hex Body M6 x 1.0

Black, Dart 8 mm

Black, Dart 10 mm

Black, Plug

Rivet Avibulb 3/16

Collar Huck Magna-Grip 6.4

Black, Plug

Flat Washer 8 mm

Insert

Torx Head Screw M6 X 16

Hex Screw M8 X 30

Flat Washer 8 mm

Hex. Flange Elastic Nut M8

Insert

Insert

Engine Chassis Module Ass'y | Includes 100 to 100n

Leg Bushing

LH Side Member Ass'y | Includes 100b to 100b2

Leg Bushing

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Bottom Plate

Rivet Avibulb 3/16

Insert M5 X 0.8

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Ornit Rivet 6,5 X 14.5

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Insert M5 - 0.8

Hex. Flange Screw M6 X 16

Lateral Reinforcement

Hex. Flange Screw M8 X 20

Hex. Nut M8

Hex. Flange Screw M6 X 20

Screw-Pan HD.Torx M8X30

Chassis Suspension Module | Includes 400 to 400b

Insert

Rivet Avibulb 3/16

Screw Hex M10 X 30

Flat Washer 10 mm

Hex. Flange Elastic Nut M10

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Hex. Flange Screw M6 X 20

Front Bottom Plate

Insert M5 X 0.8

Deep Black, RH Rear Footrest Reinforcement

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Upper Colomn Support

Hex. Flange Screw M6 X 16, Scotch Grip

Elastic Flange Nut M6 X 1.0

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 20

Muffler Support Ass'y

Front Protector
