Partiron

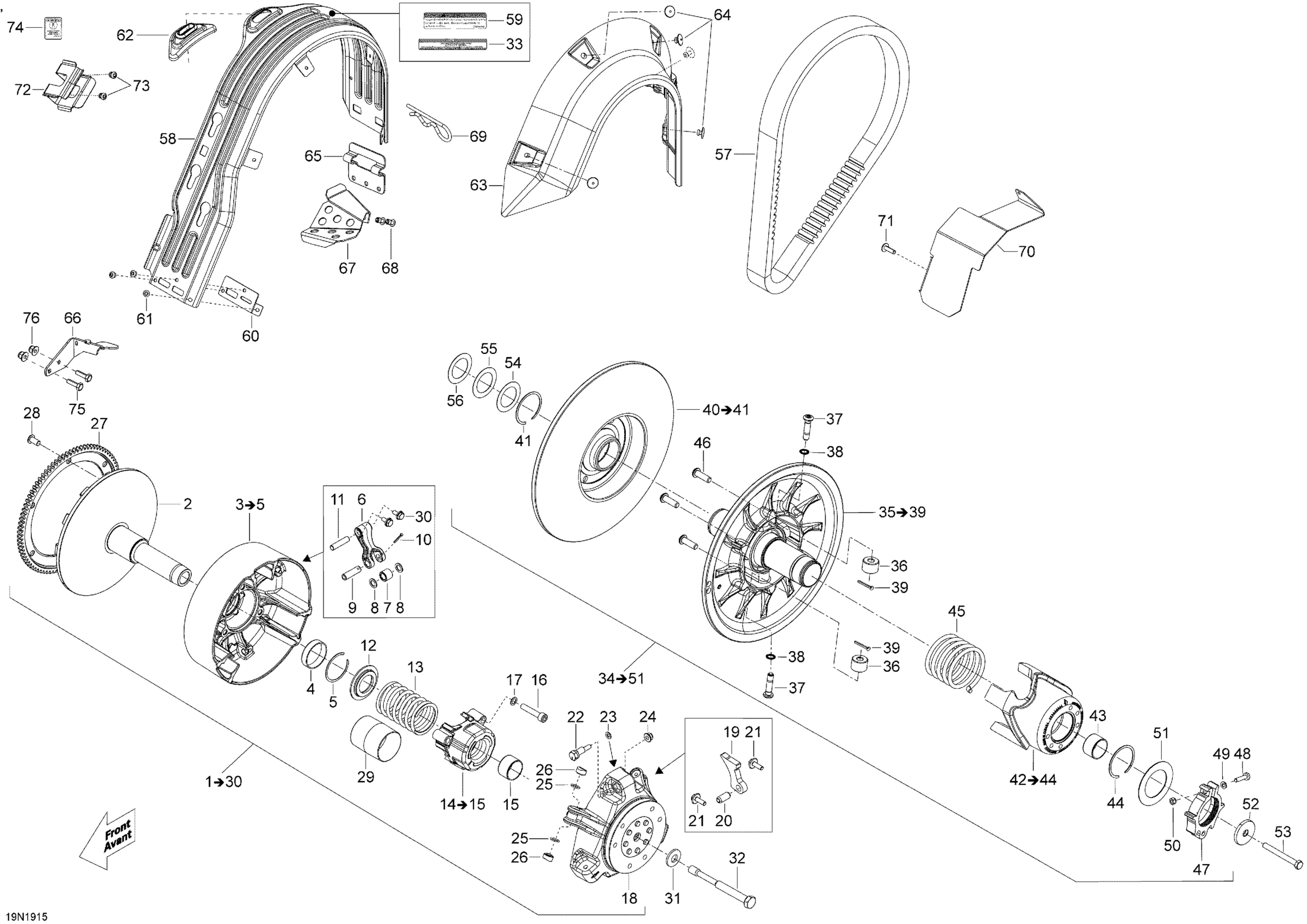

Ski-Doo Skandic SWT 600HO E-TEC, 2019 Pulley - Package SWT Diagram

#

Description
Price

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

5

Circlip

293370037

$3.02

6

Lever | Includes 10f to 10g

417222671

$32.28

7

Roller

417222947

$19.97

8

Stopper Washer

417004302

$15.99

9

Pin

417222594

$14.11

10

Cotter Pin

250400060

$1.60

11

Lever Axle

417223164

$4.25

11.1

Spring Seat

417222312

$8.28

12

Tra Spring

414993000

$14.75

13

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

15

Bushing

417009204

$16.12

14

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

16

Lock Washer 8 mm

250200009

Unavailable

17

Governor Cup Ass'y

417223669

$456.89

18

Ramp 600

417222444

$32.28

19

Spring Pin M10 X 22

250400050

$2.38

20

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

21

Calibration Screw

417223501

$27.66

22

Washer

417005600

$3.86

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

24

O-Ring

732401030

$0.95

24.1

Slider Shoe

417223271

$8.59

25

Ring Gear_Starter This part replaces 417223738.

417225070

Unavailable

26

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

27

Guard

417009205

$16.89

28

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

31

Conical Spring Washer M14

250200144

Unavailable

32

Drive Pulley Bolt

417120000

$63.82

33

Decal English

516005503

Unavailable

35

Fixed Flange Ass'y

417127466

$429.20

40

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

42

Cam Ass'y

417127459

Unavailable

45

Spring, White

417127243

$42.28

46

Button Head Torx Screw M8 X 25 S.Gr

250000757

Unavailable

47

Calibration Ass'y

415129604

Unavailable

48

Socket Screw M5 X 25

205052544

$1.34

49

Flat Washer M5

234051410

Unavailable

50

Elastic Stop Nut M5

232551414

Unavailable

51

Washer

417127155

Unavailable

52

Strength Washer

517302322

$11.09

53

Hex. Cap Screw M8 X 75

207287544

$4.24

54

Spacer

417300252

$5.17

55

Spacer

417300265

$2.12

56

Shim

504112000

$6.05

57

Drive Belt

417300551

Unavailable

58

Belt Guard

417300357

$86.12

59

Security Label, Belt Guard

516006900

Unavailable

60

Reinforcement

417300380

$5.17

61

Avex Rivet

390909200

Unavailable

62

Guide

417300381

$9.23

63

Side Protector

417300356

$13.25

64

Pop Rivet 3/16"

293150103

Unavailable

65

Belt Guard Bracket | Package SWT

417300413

$7.11

66

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

67

Brake Hose Cover | Package SWT

518327035

$11.02

68

Rivet Hucklok

293150163

$2.82

69

Hair Pin

114045200

Unavailable

70

Air Duct | North America

417300468

$46.89

70.1

Clinch Nut M6 Hexsert

605636003

$4.12

71

Torx Screw M6 X 20

250000722

Unavailable

72

Bracket

517281905

Unavailable

73

Avex Rivet

390909100

$0.29

74

Belt Decal, English

516005511

Unavailable
