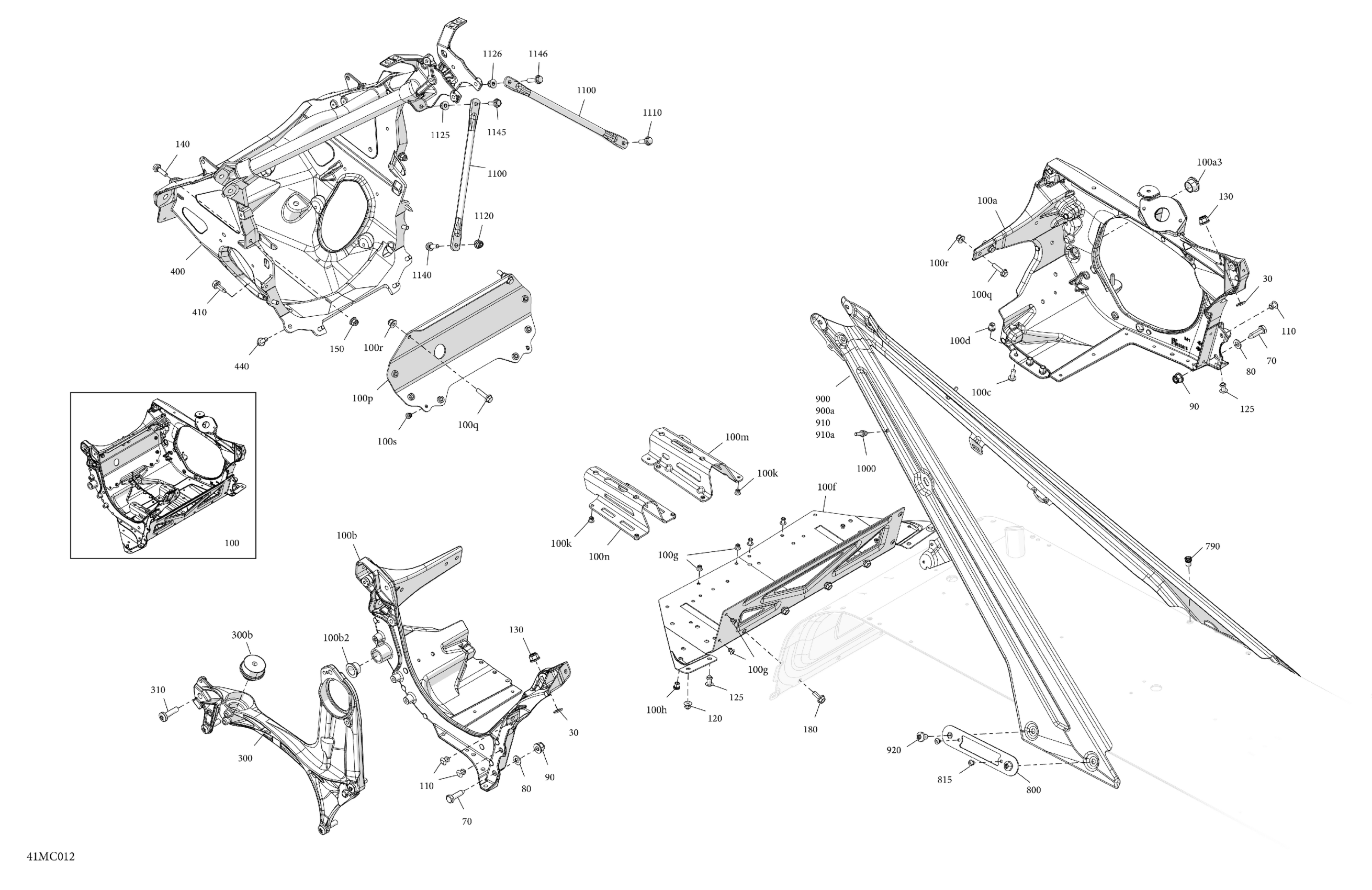

Ski-Doo RENEGADE 600R E-TEC - XRS COMPETITION - 2023 Frame - System - Front Section Diagram

#

Description
Price

30

Flat Washer 8 mm

234081410

$0.69

70

Hex Screw M8 X 30

250000942

$0.92

80

Flat Washer 8 mm

234081410

$0.69

90

Hex. Flange Elastic Nut M8

233281414

$1.14

100

Engine Chassis Module | Includes 100 to 100s

518334278

$666.89

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334521

$208.43

100a3

Leg Bushing

505072690

Unavailable

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

100b2

Leg Bushing

505072690

Unavailable

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

100d

Collar Huck Magna-Grip 6.4

293150149

$0.37

100f

Bottom Plate

518332716

$34.58

100g

Rivet Avibulb 3/16

293150203

$0.29

100h

Insert M5 X 0.8

293450268

$1.95

100k

Rivet Avibulb 3/16

293150203

$0.29

100m

RH Cross Link

518329814

Unavailable

100n

LH Central Cross Member Support

518333927

$30.74

100p

Front Member

518330100

$56.12

100q

Hex. Flange Screw M6 X 25

250000945

$3.61

100r

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100s

Rivet Avibulb 3/16

293150203

$0.29

110

Ornit Rivet 6,5 X 14.5

293150266

$1.94

120

Rivet Ornit 6,5 X 12.5

293150265

$1.94

125

Rivet Ornit 6,5 X 18.5

293150268

$1.94

130

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Flange Screw M6 X 20

207662046

$1.74

150

Elastic Flange Nut M6 X 1.0

233261416

$1.74

180

Hex. Flange Screw M6 X 16

207661646

$1.00

300

LH Side Member Ass'y | Includes 300 to 300b

518333783

$270.74

300b

Vibration Damper

512061516

$57.66

310

Screw-Pan HD.Torx M8X30

250001060

$0.65

400

Chassis Suspension Module

518334459

$653.05

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

440

Hex. Flange Screw M6 X 16

207661636

$1.06

790

Insert

293450278

$4.09

800

Member Fixation Plate

518329480

$10.03

815

Avibulb Rivet 4.8 X 12.1

293150237

$0.29

900

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$108.43

900a

LH Rear Diagonal Cross Member

518333356

$108.43

910

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$108.43

910a

RH Rear Diagonal Cross Member

518332559

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

1000

Protruding Stud M5 x 12

250300651

$1.92

1100

Upper Colomn Support

518329974

$20.74

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

1120

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1125

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1126

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1140

Hex. Flange Screw M6 X 20

207662046

$1.74

1145

Hex. Flange Screw M6 X 20

207662046

$1.74

1146

Hex. Flange Screw M6 X 25

207662556

$3.61
