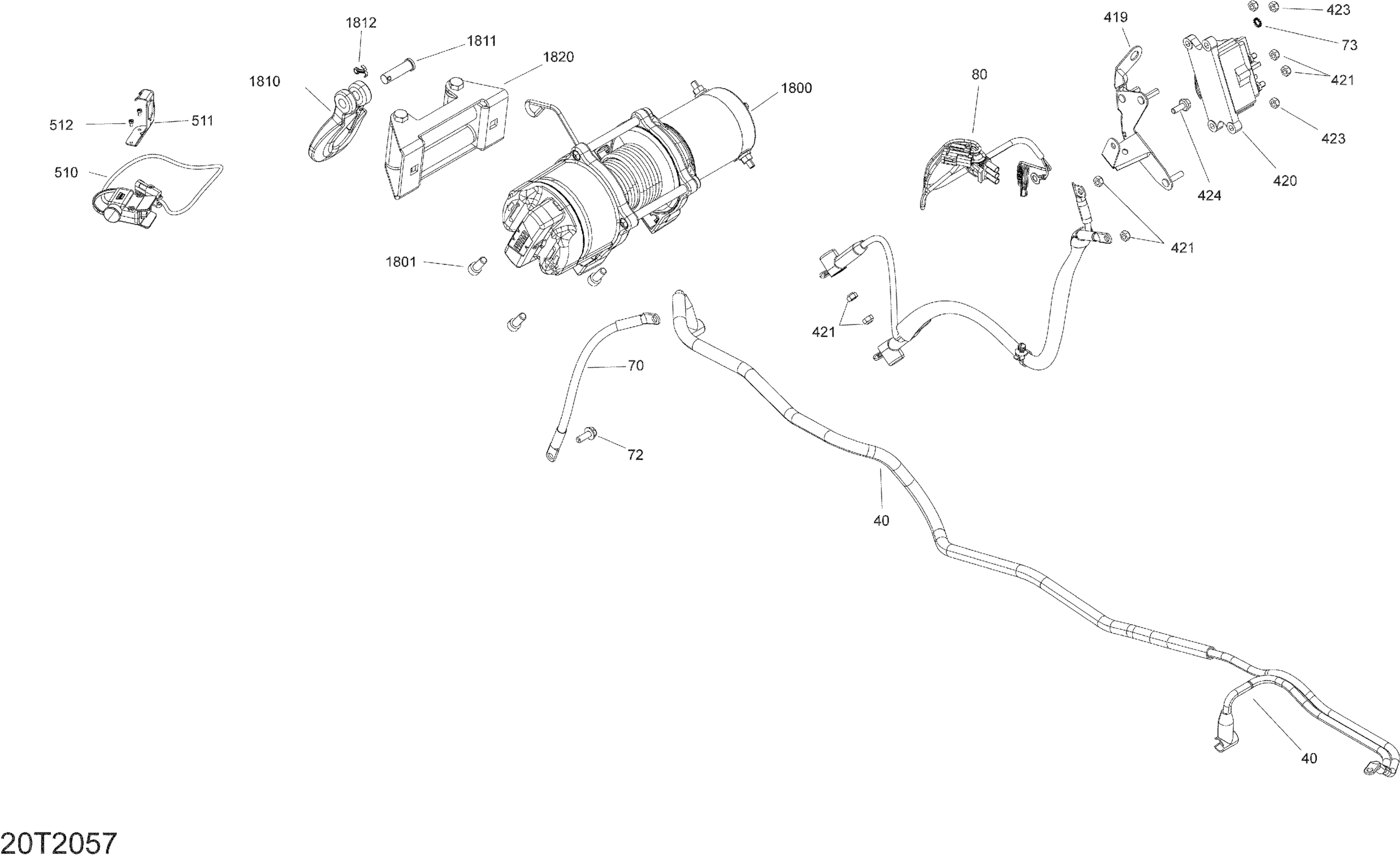

Can-Am Outlander MAX 6X6 - 1000 EFI - 2020 Electrical System - Winch Diagram

#

Description

Price

40

Connector Ass'y

710004375

Unavailable

70

Negative Cable

710005163

Unavailable

72

Hex. Flange Screw M6 X 16

210261640

Unavailable

73

External Serrated Lock Washer 6 mm

234461608

Unavailable

80

Winch Cable | Model With Winch

710005164

Unavailable

419

Module Support

710004935

Unavailable

420

Winch Solenoid | XT Models

710001000

Unavailable

421

Elastic Stop Nut M6

232561414

Unavailable

423

Elastic Stop Nut M6

232561414

Unavailable

424

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

510

Winch Switch

710005241

Unavailable

511

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

Unavailable

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

Unavailable

1800

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

1801

Socket Head Screw M8 X 20

205082044

Unavailable

1802

Lock Washer 8 mm

234181401

Unavailable

1810

Winch Hook Kit

705014949

Unavailable

1811

Clevis Pin

250400021

Unavailable

1812

Cotter Pin

250400022

Unavailable

1820

Fairlead_Roller Kit

715007699

Unavailable
