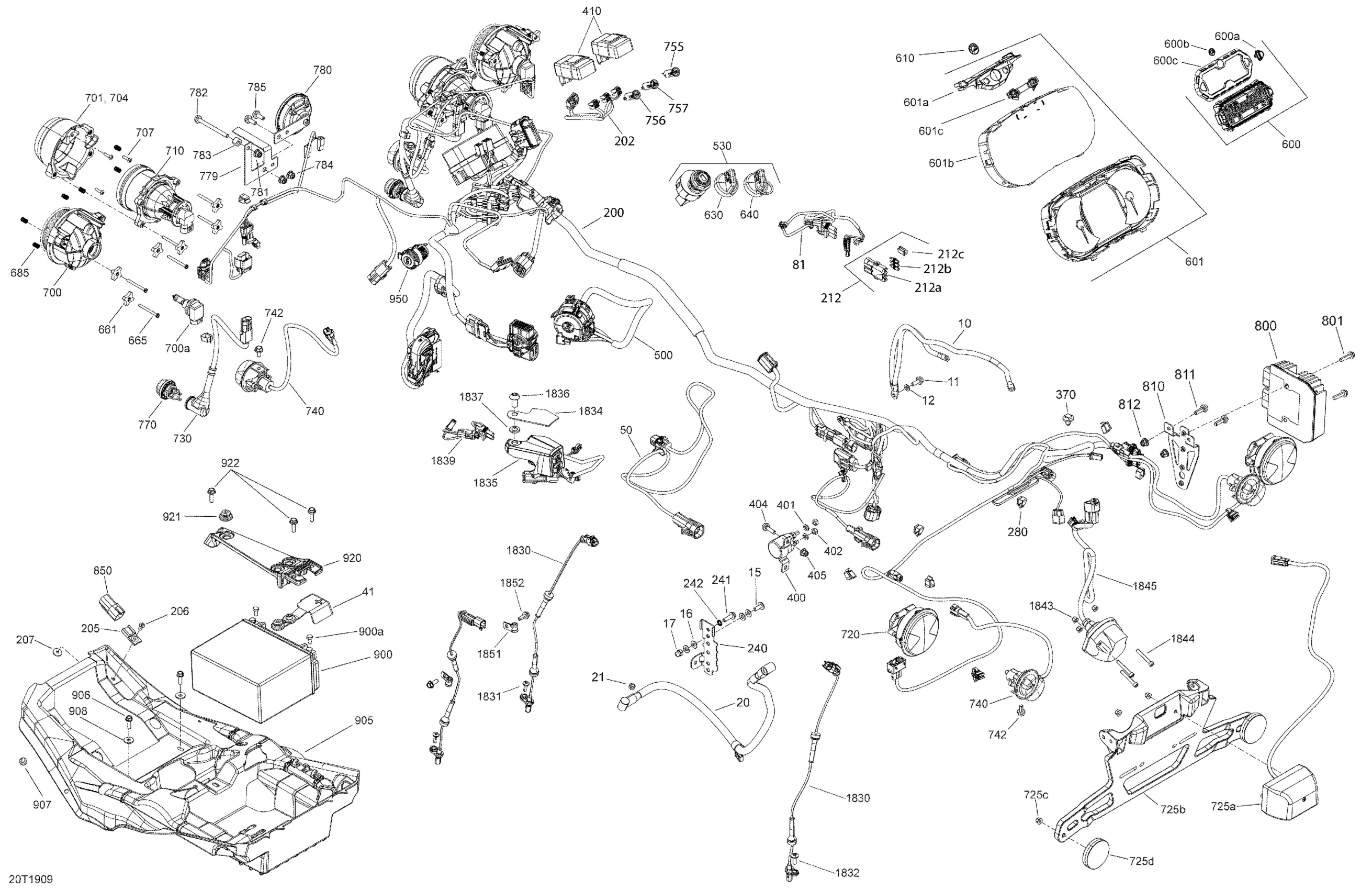

Can-Am Outlander MAX 570 EFI - PRO NORDIC - T3, 2019 Electrical T3 - PRO Nordic Diagram

#

Description
Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

12

Lock Washer Helical M6

234161601

$1.49

15

Torx Head Screw M6 X 16

250000717

$2.19

16

Flat Washer

224061121

$1.49

17

Domed Nut M6

232361493

$2.09

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561414

$1.78

41

Battery Cable Cap

710006729

$7.20

50

Extension Cable 02 Sensor

710005819

$21.99

81

Winch Cable

710005246

$43.99

200

No ABS Cable

710006170

$1,009.99

202

Indicator Light Cable

710005840

$19.99

205

Clip

270000141

$11.99

206

Pop Rivet 3/16"

390402300

$1.49

207

Washer | DS 650 X

391301600

$1.49

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.19

242

External Serrated Lock Washer 6 mm

234461608

$1.49

280

Clip

414227300

$1.69

370

Mount Dart

293730040

$1.49

400

Starter Relay

710007777

$49.99

401

Lock Washer Helical M6

234161601

$1.49

402

Elastic Stop Nut M6

232561414

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$1.49

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

410

Flasher Unit

710003239

$78.49

500

LH Multi Fonction Control

710006211

$174.99

530

Ignition Switch

710008400

$78.49

600

Speedometer

710006216

$339.99

600a

Trim Ring Ass'y

710001183

$19.99

600a1

BRP Logo13 mm

704904615

$13.99

600b

Button

715900265

$13.71

601

Speedometer | Package XTP

710006331

Unavailable

601a

Cap Support | XTP

705004366

$15.49

601b

Lens | XTP

415129349

$25.99

601c

Speedometer Button | XTP

415129355

$16.49

610

BRP Logo 20MM x 2MM | XTP

516006224

$14.49

610

BRP Logo13 mm

704904615

$13.99

630

Grey, Electronic Key

710002183

$59.99

640

Black, Electronic Key

710000817

$59.99

661

Handle

572106600

$10.99

665

Hex. Screw K40 X 45

250000718

$2.19

685

Spring

517168600

$7.59

700

Low Beam | Includes 54 to 55

710006177

$119.99

700a

Bulb 12V 55W

715900141

$41.49

701

RH High Front Housing

710002291

$28.99

704

LH High Front Housing

710002292

$22.49

707

Phillips Screw K40 X 16

250000723

$1.49

710

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$42.99

720

Tail Light Ass'y | Includes 32 to 33

710001645

$84.99

720a

Bulb

520000758

$9.29

725a

License Plate Light | Europe

710005563

$126.99

725b

Plate Support | Europe

708300434

$27.99

725c

Hex. Flange Elastic Nut M5

233251414

$1.91

725d

Red Reflector

705011221

$14.99

730

Position Light Harness

710005676

$15.49

740

Flasher | Europe

710002964

$34.30

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.99

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

757

Pilot Lamp | Model-Europe

710003909

$21.99

770

Day Light | Europe

710001726

$35.99

779

Horn Support

710006113

$13.49

780

Horn

710004791

$39.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

782

Hex. Flange Screw M6 X 70

207667044

$1.49

783

Bushing

708001129

$11.99

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

785

Hex. Flange Screw M6 X 16

207661644

$1.49

800

Voltage Regulator

710005842

$189.99

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.99

810

Rectifier Support

710001752

$9.29

811

Hex. Flange Screw M6 X 20

207662044

$2.09

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

850

Connector Plug

710004904

$8.99

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$149.95

900a

Battery Bolt Kit

250000282

$7.49

905

Battery Support

710008370

$50.99

906

Hexagonal Head Screw

210262050

$2.19

907

Rubber Bumper

293830005

$8.29

908

Stainless Steel Flat Washer

234062670

$2.19

920

Retaining Plate

710009129

$8.69

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$1.49

950

DC Outlet

710001248

$38.99

1830

Speed Sensor

710006981

$83.99

1831

Torx Screw K50 X 16

250000720

$1.69

1832

Torx Truss Screw M6 X 16

250000721

$1.69

1834

Top Plate

715004008

$21.99

1835

Multifonction Housing Ass'y

710004990

$154.99

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.69

1837

Washer

503192496

$1.49

1843

Hex. Flange Elastic Nut M5

233251414

$1.91

1844

Socket Head Screw M5 X 35

205053588

$1.99

1845

Trailer Harness

710005846

$229.99

1851

Clamp

293650256

$5.59

1852

Hex. Flange Screw M6 X 16

210261640

$2.19
