Description

Price

10

Propeller Shaft | Includes 1 to 2

705400913

$203.05

10a

Rubber Boot

715900118

$13.83

10b

Oetiker Gear Clamp 36.1MM

509000045

$3.55

10

Propeller Shaft | Includes 1 to 2

705400913

$203.05

15

Rubber Boot

705401093

$4.60

16

Oetiker Gear Clamp

293650199

$7.16

20

Coupling Sleeve

705401969

$27.66

25

Front Bushing Shaft Kit | 4X4

703500678

$104.58

25a

Wear Ring | 4X4

705400036

$25.35

30

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

30a

Drain Plug | After May 30, 2014

705501885

$12.68

30b

Screw | 4X4

705401601

$9.29

30c

Screw | After May 30, 2014

705401602

$6.45

30d

Nut | 4X4

705401603

$36.89

30e

Shim | 4X4

705401604

$55.35

30f

Ball Bearing | After May 30, 2014

705401605

$30.74

30g

Ball Bearing | 4X4

705401606

$49.20

30h

Ball Bearing | After May 30, 2014

705402848

$46.12

30j

Ball Bearing | After May 30, 2014

705401608

$49.20

30k

Front Cover | After May 30, 2014

705401610

$143.05

30m

Pinion 10 Teeth | After May 30, 2014

705402841

$207.66

30n

Gear 36 Teeth | After May 30, 2014

705401612

$383.05

30p

Vent Valve | After May 30, 2014

705401613

$14.37

30q

Differential | Package-DPS, XT, XTP

705402182

$1,174.99

30r

Oil Seal | After May 30, 2014

705401615

$18.43

30s

Seal | After May 30, 2014

705401616

$13.83

30t

O'Ring | After May 30, 2014

705401617

$7.37

30u

Gasket | 4X4

705401618

$17.66

30v

Shim

705401769

$6.75

30w

Shim

705401770

$6.45

30x

Flat Washer M10 | 4X4

250200014

$1.17

30y

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

30z

Front Pinion Cover | After May 30, 2014

705401792

$143.05

35

Fill Level Plug | 4X4

705500504

$7.61

36

Copper Washer | 4X4

705500506

$0.36

40

RH CV Joint | Includes 40 to 40j

705402236

$233.82

40a

CV Joint

705401344

$253.82

40b

RH Plunging Joint

705401348

$249.20

40c

Circlip Joint | Not shown

705401349

$5.38

40d

Boot Kit, Wheel Side

705401345

$41.51

40e

Oetiker Clamp

715900282

$4.39

40f

Oetiker Clamp, Small

715900283

$4.39

40g

Boot Kit, Differential Side

705401346

$41.51

40h

Oetiker Clamp, Large

715900284

$4.39

40j

Oetiker Clamp, Small

715900261

$4.39

45

LH Knuckle

705403307

$175.35

46

RH Knuckle

705403308

$175.35

50

LH CV Joint

705402235

$233.82

50

LH CV Joint

705402235

$233.82

50a

CV Joint

705401344

$253.82

50b

LH Plunging Joint

705401350

$249.20

50c

Circlip Joint | Not shown

705401349

$5.38

50d

Boot Kit, Wheel Side

705401345

$41.51

50e

Oetiker Clamp

715900282

$4.39

50f

Oetiker Clamp, Small

715900283

$4.39

50g

Boot Kit, Differential Side

705401346

$41.51

50h

Oetiker Clamp, Large

715900284

$4.39

50j

Oetiker Clamp, Small

715900261

$4.39

60

Ball Bearing

293350150

$52.99

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

80

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 125

230602546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

115

Hex. Flange Screw M8 X 55

207685544

$4.41

120

Hex. Flange Elastic Nut M8

233281414

$1.14

135

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

150

Conical Spring Washer M18

250200171

$5.28

160

Hex. Flange Castellated Nut M18

232291413

$2.82

165

Valve Cap

293000110

$1.18

170

Cotter Pin

250400071

$1.74

240

Flat Washer M12

250200102

$1.74

250

Hex Flange Screw M12 X 20

250001042

$1.56

310

Flat Washer M10 | 4X4

250200014

$1.17

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

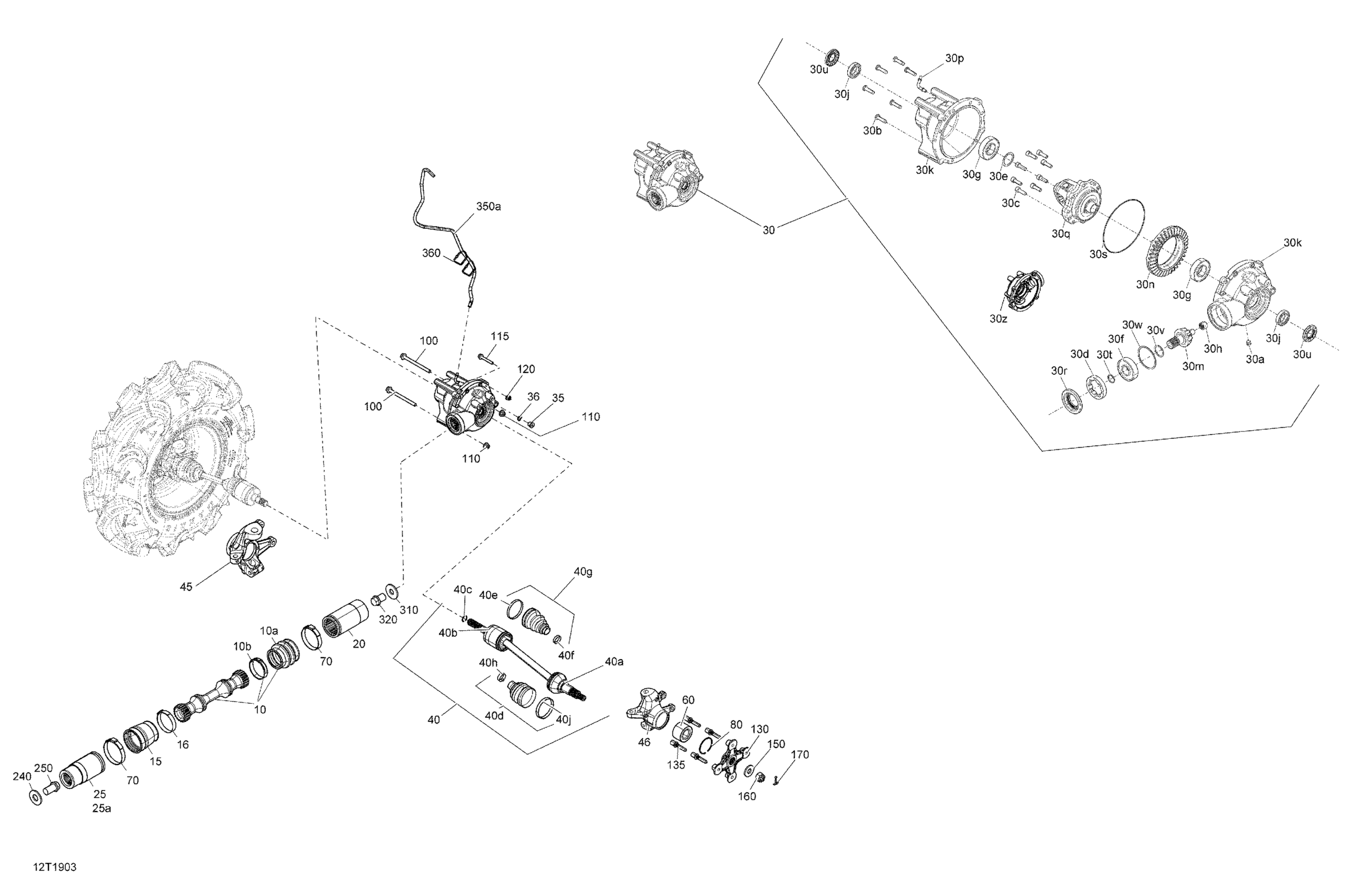

Can-Am Outlander MAX 570 EFI - PRO NORDIC - T3, 2019 Front Drive - 570 EFI Diagram
