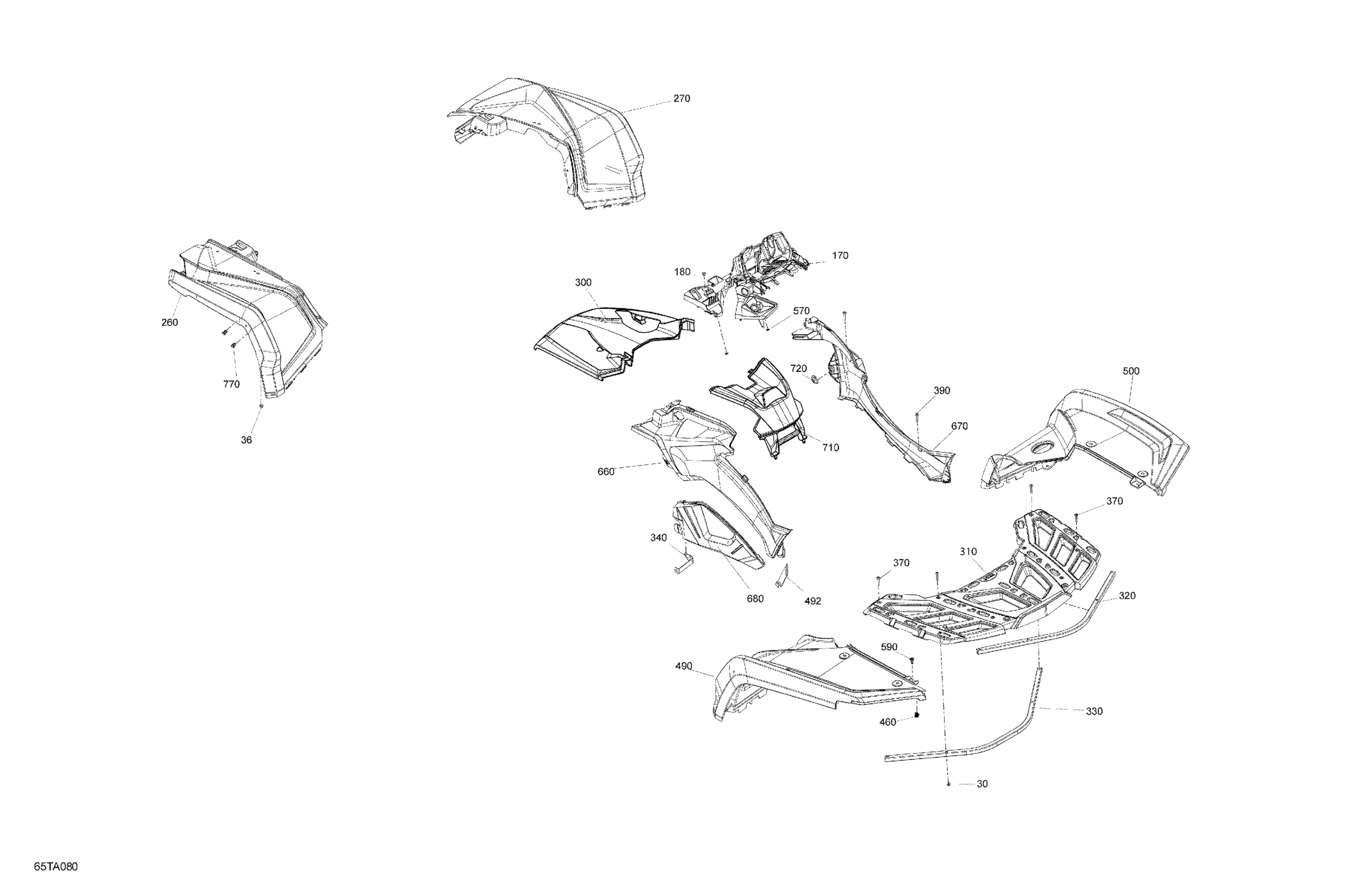

Can-Am Outlander 1000R EFI - XMR - 2021 Body - Fender Kit Diagram

Description

Price

Flange Elastic Nut M6

233261434

$3.61

Flange Elastic Nut M6

233261434

$3.61

170

Console Support Ass'y | Model-Europe/International

715006101

$54.58

180

Rubber Bumper

293830005

$5.33

260

Granit Gray, LH Front Fender

715007053

$189.97

270

Granit Gray, RH Front Fender

715007059

$189.97

300

Black, Hood

708302435

$133.82

310

Rack Kit

715007070

$184.58

320

Sectional Bent Tube

705016640

$35.35

330

Bent Sectional Tube

705016092

$39.20

340

LH Inner Fender Bracket

705007140

$19.20

370

Black, Torx Screw M6 X 35

250000646

$0.78

390

Insert Half Hex Body M6 x 1.0

250100199

$2.54

460

Edge Clip

517302785

$0.70

490

Granit Gray, LH Rear Fender

715007066

$128.43

492

Heat Shield

707002457

$3.98

500

Granite Grey, RH Rear Fender

705014396

$128.43

570

Push Nut

732610072

$1.72

590

Torx Screw M6 X 20

250000722

$1.34

660

LH Pannel | Deep Black

705005236

$69.20

670

RH Panel | Deep Black

705009121

$55.35

680

Deflector Body Panel Kit

715007294

$51.51

710

Console Cap Ass'y | Package XTP

715007684

$32.28

720

Grommet

705003264

$3.43

770

Tuflok Plastic Rivet

293150230

$1.21
