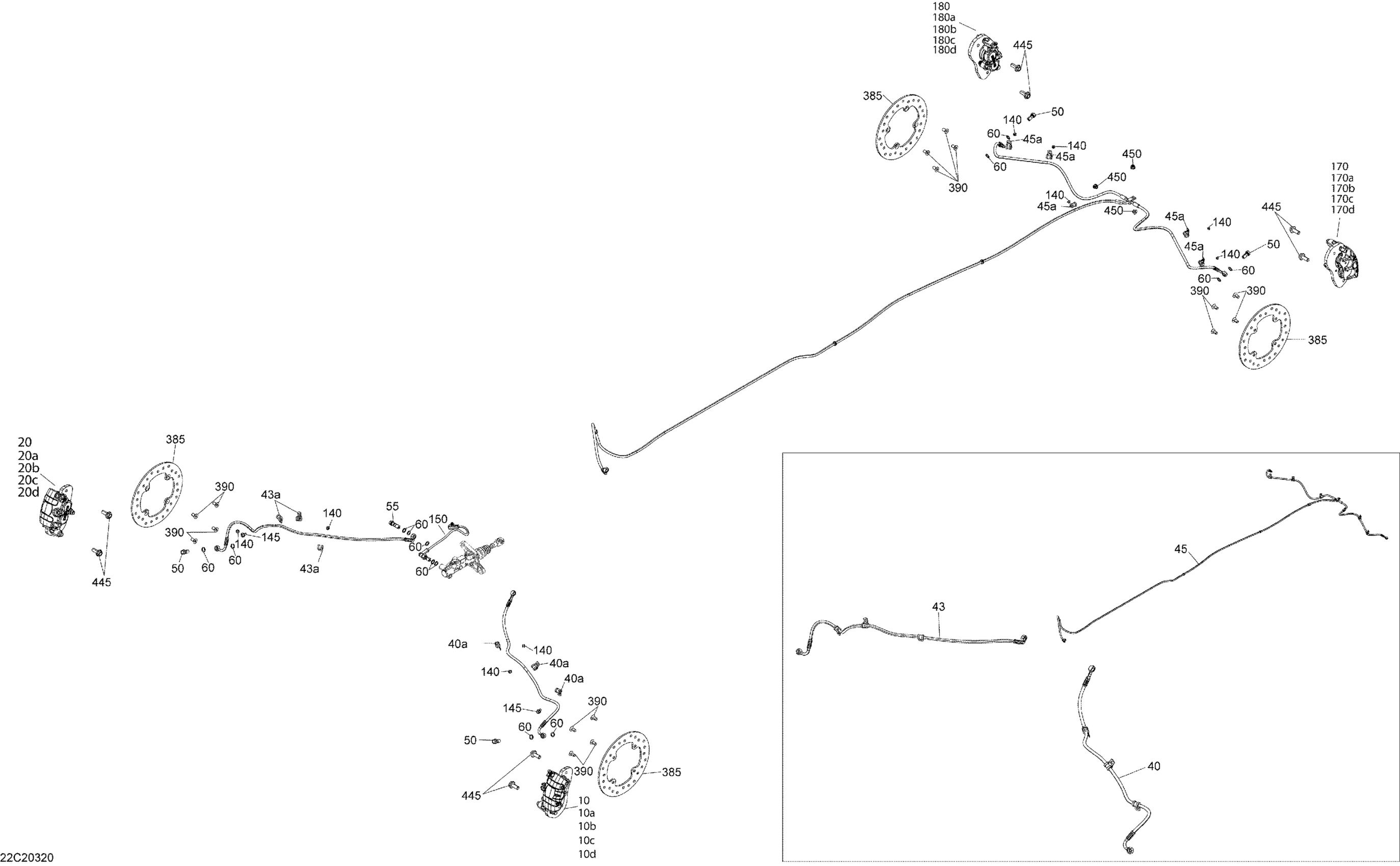

Can-Am Maverick Sport 1000R - XXC - 2020 Brakes - Brake Line Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$360.49

10a

LH Brake Pads

715900379

$79.49

10b

Bleeding Screw

705601017

$6.35

10c

Cap Spring Kit

715900385

$17.59

10d

Pin Kit | Packages STD & PRO

715900384

$12.12

20

RH Front Brake Caliper | RH Front

705601888

$370.99

20a

RH Brake Pads

715900380

$79.49

20b

Bleeding Screw

705601017

$6.35

20c

Cap Spring Kit

715900385

$17.59

20d

Pin Kit | Packages STD & PRO

715900384

$12.12

40

LH Front Caliper Hose | Includes 40 to 40a

705601860

$86.99

40a

Clamp

293650256

$5.49

43

RH Front Caliper Hose | Includes 43 to 43a

705601861

$86.99

43a

Clamp

293650256

$5.49

45

Rear Hose Caliper | Includes 45 to 45a

705601700

$163.99

45a

Clamp

293650256

$5.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Double Banjo Bolt

705601723

$7.90

60

Copper Washer

705601628

$4.44

140

Pop Rivet 3/16"

390402200

$0.35

145

Hex. Flange Screw M6 X 10

210261040

$1.48

150

Brake Switch

705601250

$59.49

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$259.49

170a

LH Brake Pads

715900386

$79.49

170b

Bleeding Screw

705601017

$6.35

170c

Pin Kit | Packages STD & PRO

715900384

$12.12

170c

Pin Kit | Packages STD & PRO

715900384

$12.12

170d

Cap Spring Kit

715900385

$17.59

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$328.49

180a

RH Brake Pads

715900387

$79.49

180b

Bleeding Screw

705601017

$6.35

180c

Pin Kit | Packages STD & PRO

715900384

$12.12

180c

Pin Kit | Packages STD & PRO

715900384

$12.12

180d

Cap Spring Kit

715900385

$17.59

385

Brake Disc

705601511

$66.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

445

Hex. Flange Screw M10 X 25

207502546

$2.11

450

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
