Description

Price

7a

Pressure And Temperature Sensor

707000995

Unavailable

7b

Hex. Flange Screw M6 X 25

207662554

Unavailable

7c

Panel Nut M6 X 1.0

250100198

Unavailable

7d

Foam Filter

707000586

$6.00

100

LH Breakaway Lateral Tower Leg | Includes 100 to 100f

708200437

$79.00

100b

Grommet

709000582

Unavailable

100c

Panel Nut M6 X 1.0

250100208

Unavailable

100d

Panel Nut M5 X 0.8

250000958

Unavailable

100f

Black, Nylon Cap

414916600

Unavailable

500

RH Breakaway Lateral Tower Leg | Includes 500 to 500f

708200438

$79.00

500b

Grommet

709000582

Unavailable

500c

Panel Nut M6 X 1.0

250100208

Unavailable

500d

Panel Nut M5 X 0.8

250000958

Unavailable

500f

Black, Nylon Cap

414916600

Unavailable

530

Hex. Flange Screw M6 X 30

207663054

Unavailable

540

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

545

Front Skid Plate

708200405

$30.00

550

Hex. Flange Screw M6 X 20

207662044

Unavailable

560

Hex. Flange Screw M8 X 25

207682544

Unavailable

565

Flat Washer M8

234082430

$2.06

570

Hex. Flange Elastic Nut M8

233281434

Unavailable

1500

LH Side Vent

708200860

$35.00

1600

RH Side Vent

708200859

$35.00

1650

Tuflok Plastic Rivet

293150230

Unavailable

2000

Front Air Duct Module

708200362

$89.00

2050

Tuflok Plastic Rivet

293150230

Unavailable

2051

Tuflok Plastic Rivet

293150230

Unavailable

2450

LH Front Union Link

708200493

$10.00

2455

Tuflok Plastic Rivet

293150230

Unavailable

2460

RH Front Union Link

708200494

$10.00

2465

Tuflok Plastic Rivet

293150230

Unavailable

2500

Sub-Frame Type Structure | Includes 2500 to 2500b

708200446

$79.00

2500b

Panel Nut M5 X 0.8

250000958

Unavailable

2550

Hex. Flange Screw M6 X 20

207662044

Unavailable

2555

Tuflok Plastic Rivet

293150230

Unavailable

2560

Hexagonal Head Screw

210262050

Unavailable

2580

Oval Washer

705000321

Unavailable

2590

Spring

705003911

$4.00

2600

Latch

705007379

$29.00

2610

Hex. Flange Screw M6 X 35

207663544

Unavailable

2620

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

2630

Hood Cable

517305742

$43.00

3000

LH Hood Hinge | Includes 3000 to 3000h

708200673

$92.00

3000h

Flat Washer M5

234051670

$1.74

3100

RH Hood Hinge | Includes 3100 to 3100h

708200674

$92.00

3100h

Flat Washer M5

234051670

$1.74

3150

Torx Truss Screw M5 X 16, T25

250000578

Unavailable

3500a

Front Storage Bin

708200957

$70.00

3500b

Heat Shield Sheet

708200490

Unavailable

3500c

Stopper

705006633

$8.00

3550

Tuflok Plastic Rivet

293150230

Unavailable

4000a

Manta Green, Hood

708201237

$540.00

4000b

Panel Nut M5 X 0.8

250000958

Unavailable

4000c

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

Unavailable

4000c1

Hex. Elastic Nut M8 Brass

232581200

Unavailable

4000d

Flat Washer 8 mm

234082410

Unavailable

4000f

Hex. Jam Nut M8

232180600

Unavailable

4000g

Lug

705002223

$26.00

4000h

Neoprene Seal 3000Mm Long

219704371

Unavailable

4000j

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

4060

Torx Truss Screw M5 X 16, T25

250000578

Unavailable

4070

Flat Washer M5

234051670

$1.74

4500a

Manta Green, LH Front Fairing

708201238

$215.00

4500b

Polyurethane Stopper

705006634

$5.00

4500c

Rubber Pad

293830143

$18.00

4600a

Manta Green, RH Front Fairing

708201239

$215.00

4600b

Polyurethane Stopper

705006634

$5.00

4650

Tuflok Plastic Rivet

293150230

Unavailable

4660

Tuflok Plastic Rivet

293150230

Unavailable

4680

Torx Truss Screw M5 X 20

250000715

Unavailable

5000a

Manta Green, Front Fascia

708201236

$510.00

5000b

Stopper

705006633

$8.00

5040

Tuflok Plastic Rivet

293150230

Unavailable

5050

Torx Truss Screw M5 X 20

250000715

Unavailable

5051

Flat Washer M5

234051670

$1.74

5052

Tuflok Plastic Rivet

293150230

Unavailable

5500a

Molded Frame

705009339

$73.00

5500b

Front Grille

705009340

$56.00

5500c

Grille

708200937

$57.00

5500d

Black, Grille Trim

705009952

$18.00

5500f

Mounting Plate

705010273

$10.00

5500g

Flat Clip

705004838

$8.00

5550

Torx Screw Nylon

250000732

Unavailable

5560

Flat Washer M5

234051670

$1.74

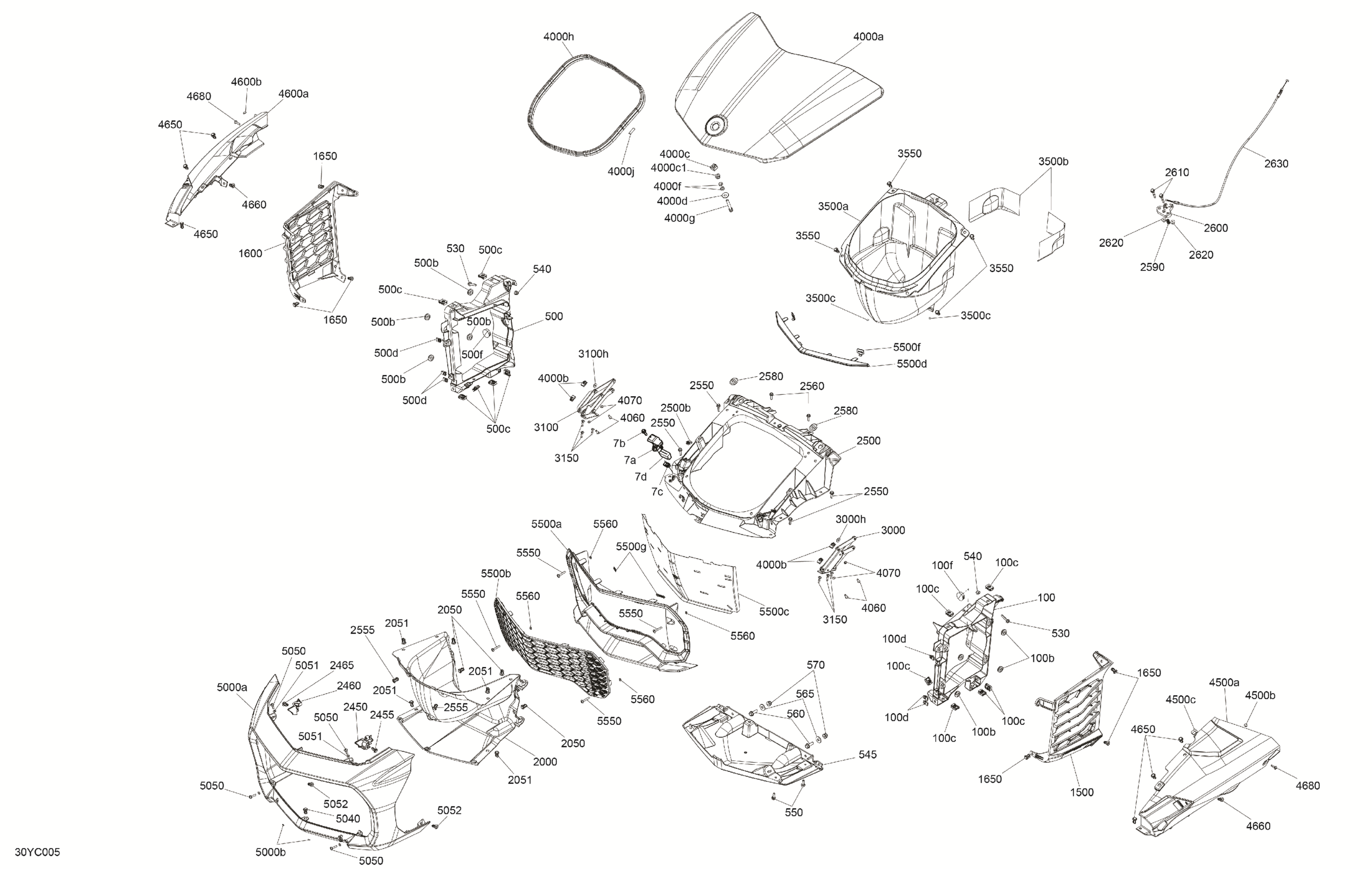

Can-Am F3 SPORT - Manta Green, 2023 Body - Front Storage Tray Diagram

Pressure And Temperature Sensor

Hex. Flange Screw M6 X 25

Panel Nut M6 X 1.0

Grommet

Panel Nut M6 X 1.0

Panel Nut M5 X 0.8

Black, Nylon Cap

Grommet

Panel Nut M6 X 1.0

Panel Nut M5 X 0.8

Black, Nylon Cap

Hex. Flange Screw M6 X 30

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Hex. Flange Screw M8 X 25

Hex. Flange Elastic Nut M8

Tuflok Plastic Rivet

Tuflok Plastic Rivet

Tuflok Plastic Rivet

Tuflok Plastic Rivet

Tuflok Plastic Rivet

Panel Nut M5 X 0.8

Hex. Flange Screw M6 X 20

Tuflok Plastic Rivet

Hexagonal Head Screw

Oval Washer

Hex. Flange Screw M6 X 35

Hex. Flange Elastic Nut M6 x 1.0

Torx Truss Screw M5 X 16, T25

Heat Shield Sheet

Tuflok Plastic Rivet

Panel Nut M5 X 0.8

Elastic Nut Housing M8 | Included 10a6 to 10a6a

Hex. Elastic Nut M8 Brass

Flat Washer 8 mm

Hex. Jam Nut M8

Neoprene Seal 3000Mm Long

Vinyl Tubing, Low Temp 3000Mm Long

Torx Truss Screw M5 X 16, T25

Tuflok Plastic Rivet

Tuflok Plastic Rivet

Torx Truss Screw M5 X 20

Tuflok Plastic Rivet

Torx Truss Screw M5 X 20

Tuflok Plastic Rivet

Torx Screw Nylon
