Description

Price

100

LH Console Support | Included 100 to 100b

708400170

$100.00

100b

Panel Nut M5 X 0.8

250000958

$3.48

110

Panel Nut M6 X 1.0

250100208

$1.07

300

RH Console Support | Included 300 to 300b

708400171

$105.00

300b

Panel Nut M5 X 0.8

250000958

$3.48

310

Panel Nut M6 X 1.0

250100208

$1.07

500

Torx Screw M6 X 25

250000758

$1.74

510

Hex. Flange Elastic Nut M6

233261494

$1.26

600

Upper Fairing

708400208

$37.00

610

Panel Nut M6 X 1.0

250100208

$1.07

710

Panel Nut M6 X 1.0

250100208

$1.07

800

Rear Gauge Trim

709402490

$20.74

810

Torx Screw M6 X 20

250000722

$1.34

815

Torx Screw M6 X 20

250000722

$1.34

900

LH Slider Support

708400053

$35.00

910

Torx Truss Screw M6 X 25

250000807

$1.74

920

Torx Truss PT K40 x 12

250001131

$1.74

1000

RH Slider Support

708400054

$38.00

1010

Torx Truss Screw M6 X 25

250000807

$1.74

1020

Torx Truss PT K40 x 12

250001131

$1.74

1200

Front Gauge Trim

709402487

$20.74

1230

Torx Truss PT K40 x 12

250001131

$1.74

1235

Torx Truss PT K40 x 12

250001131

$1.74

1700

Deep Black, LH Consol Fairing

708400341

$230.00

1720

Tuflok Plastic Rivet

293150230

$1.21

1800

Deep Black, RH Consol Fairing

708400339

$230.00

1820

Tuflok Plastic Rivet

293150230

$1.21

2600

Black Deep Nose Fairing

708400011

$38.00

2610

Torx Truss PT K40 x 12

250001131

$1.74

2615

Torx Truss PT K40 x 12

250001131

$1.74

2620

Torx Screw M5 X 25

250000762

$1.74

2630

Elastic Flange Nut M5

233251494

$1.74

2700

LH Upper Console Header

708400016

$28.00

2710

Torx Truss Screw M5 X 16, T25

250000578

$1.74

2712

Flat Washer M5

234051670

$1.74

2720

Black, Torx Screw M6 X 35

250000646

$0.78

2730

Torx Truss PT K40 x 12

250001131

$1.74

2740

Torx Screw Nylon

250000732

$1.74

2800

RH Upper Console Header

708400017

$28.00

2810

Torx Truss Screw M5 X 16, T25

250000578

$1.74

2812

Flat Washer M5

234051670

$1.74

2820

Black, Torx Screw M6 X 35

250000646

$0.78

2830

Torx Truss PT K40 x 12

250001131

$1.74

2840

Torx Screw Nylon

250000732

$1.74

2900

LH Housing Rear View Mirror Ass'y

705015049

$275.00

3200

RH Housing Rear View Mirror Ass'y

705015050

$275.00

3500

Hex. Flange Screw M6 X 25

250000793

$1.74

3505

Hex. Flange Screw M6 X 16

210261650

$1.22

3510

Panel Nut M6 X 1.0

250100208

$1.07

3520

Flat washer M6

250200164

$0.83

3600

Hex. Flange Screw M6 X 25

250000793

$1.74

3605

Hex. Flange Screw M6 X 16

210261650

$1.22

3610

Panel Nut M6 X 1.0

250100208

$1.07

3620

Flat washer M6

250200164

$0.83

3800

Switch Trim Ass'y | Included 3800 to 3800c

708400545

$105.00

3800a1

Switch Bezel

708400205

$15.00

3800c

Rear Fog Light Decal

704908774

$48.00

3810

Cap

708400046

$4.00

4000a

Black Polycarbonate, LH Acces Panel

708400238

$23.00

4000b

Cover Latch Quarter Turn

708400065

$2.99

4100a

Black Polycarbonate, RH Acces Panel

708400239

$23.00

4100b

Cover Latch Quarter Turn

708400065

$2.99

4500

Gauge Cover | Included 4500 to 4525

219400531

$202.00

4510

Not Available As Spare Part - Friction Washer

Unavailable

4520

Not Available As Spare Part - Friction Washer

Unavailable

4525

Not Available As Spare Part - Friction Washer

Unavailable

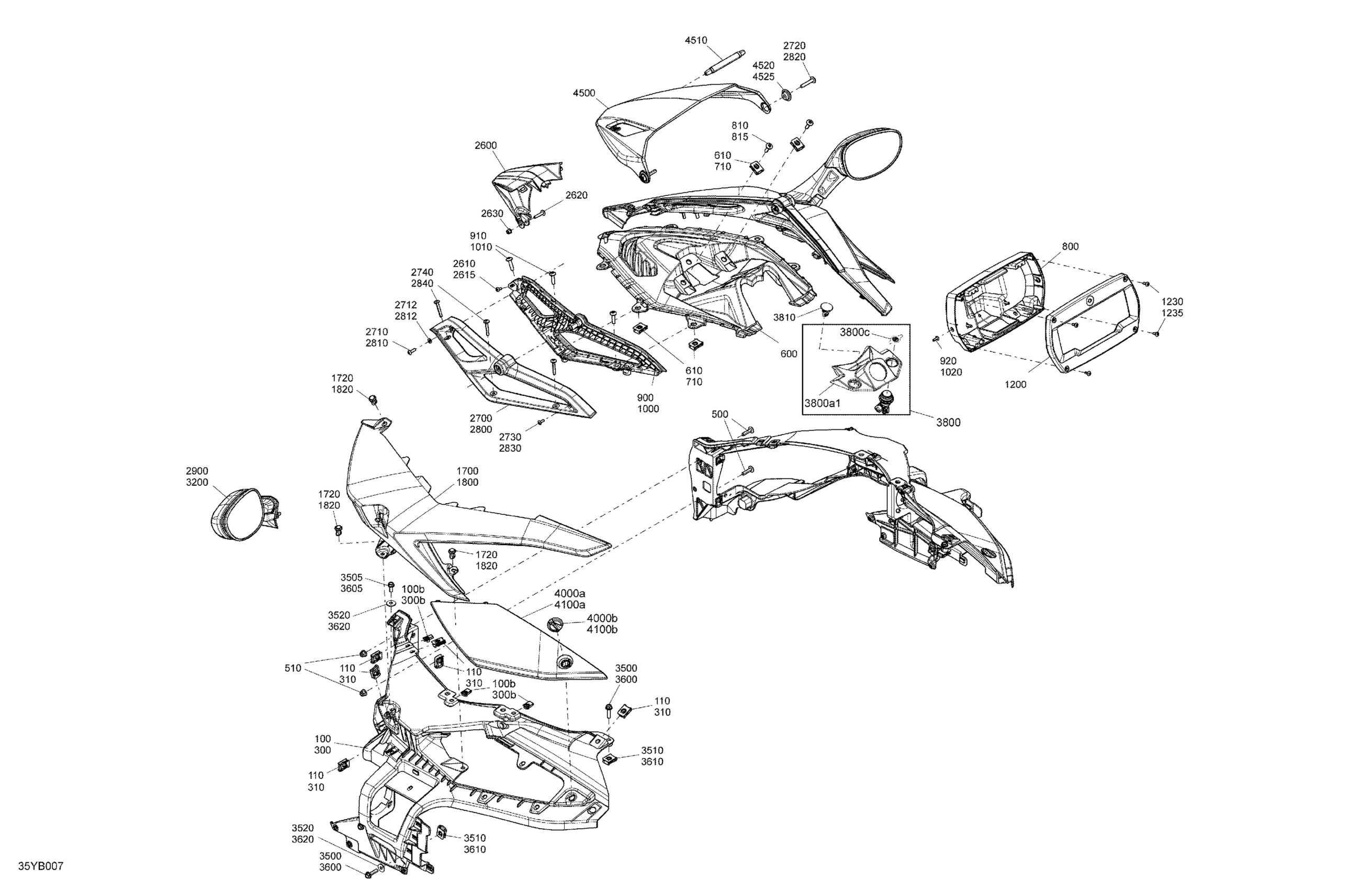

Can-Am F3 S - Special Series - Manta Green, China, 2022 Body - Console Diagram

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer
