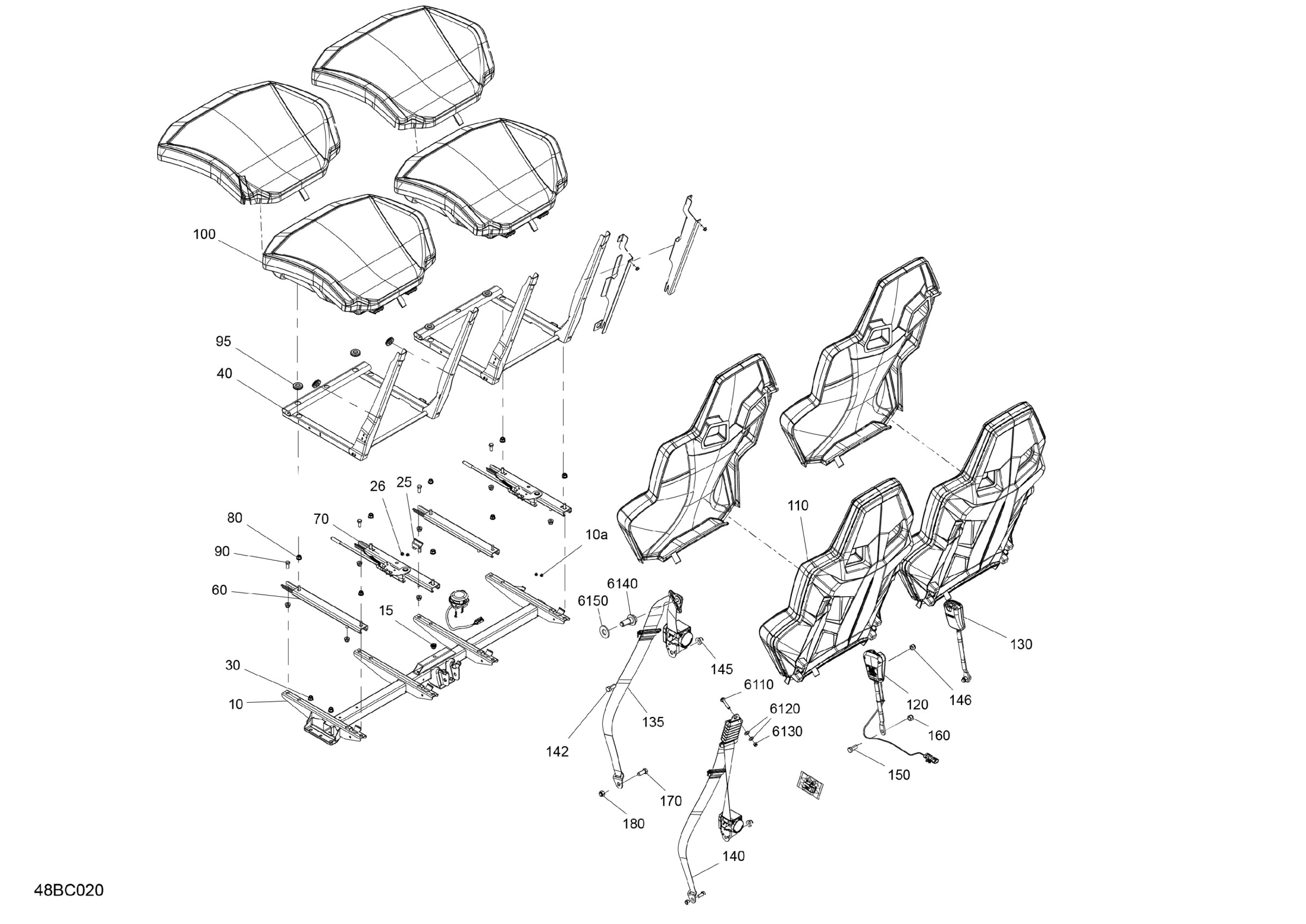

Can-Am Commander MAX 1000R EFI - XTP - International, 2023 Body - Seat Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a9

708003472

$359.97

10a

Pop Rivet 3/16"

390402200

$0.26

15

Insert Half Hex Body M6 x 1.0

250100199

$2.54

25

Seat Stopper

708003672

$2.75

26

Pop Rivet 3/16"

390402200

$0.26

30

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Seat Frame

708002423

$313.82

60

LH Seat Rail

708003314

$50.74

70

RH Slide

708003316

$32.28

80

Hex. Flange Elastic Nut M8

233281414

$1.14

90

Hex. Screw M8 X 20

207182044

$0.61

95

Grommet

517303756

$3.15

100

Cushion Ass'y

708003278

$235.35

110

LH Seat Base Ass'y | Left Seat

715006782

$323.05

110

RH Seat Base Ass'y | Right Seat

715006783

$323.05

120

Driver Buckle

708002331

$69.20

130

Passenger Buckle

708002329

$64.58

135

Safety Belt

708002835

$235.35

140

Safety Belt

708003378

$230.74

142

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

145

Elastic Flange Nut M12

233221416

$2.33

146

Lock Nut Nylon 7/16

250100183

$1.64

150

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

160

Lock Nut Nylon 7/16

250100183

$1.64

170

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

180

Lock Nut Nylon 7/16

250100183

$1.64

6110

Safet Belt Screw

708002443

$16.89

6120

Position Washer

708000891

$1.15

6130

Lock Nut Nylon 7/16

250100183

$1.64

6140

Safety Belt screw

708002504

$5.52

6150

Flat Washer M12

250200102

$1.74
