Description

Price

110

Hazard Lights Switch

710006107

$18.43

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

150

Switch 2X4

710005489

$32.28

160

Differential Lock Switch

710005470

$46.12

170

Multifonction Switch

710006650

$87.66

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

200

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

210

Inter Allumage *Ignition

710007870

$55.35

215

Key Switch Protector

710005739

$2.69

242

Screw PT Type K-50 X 16

250000959

$1.74

260

Junction Block Cover

710006707

$6.45

300

Main Wiring Harness | Includes 300 to 300c

710006754

$876.89

300a

Fusebox Support

710006640

$7.69

300c

Connector Support

710006706

$5.00

308

Black, Dart

293730006

$0.81

320

Throttle Pedal Harness

710006837

$226.12

321

Torx Screw K50 X 16

250000720

$1.39

330

Operator Presence Wiring Harness

710007043

$54.58

352

Position Light Harness

710005676

$13.52

400

Wiring Harness Support

710006649

$22.28

410

Screw PT Type K-50 X 16

250000959

$1.74

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

$1.21

440

Panel Nut M6 X 1.0

250100198

$1.73

442

Washer M6

250200029

$1.83

444

Torx Screw M6 X 20

250000712

$1.74

450

Torx Screw K50 X 16

250000720

$1.39

600

Multifunction Gauge MID | Model XTP

710007409

$341.51

700

LH Headlamp | Includes 700 to 700a

710008313

$203.05

700a

Halogen Bulb H8 12V 35W

219800149

$41.51

710

RH Beam Ass'y

710005730

$203.05

710a

Halogen Bulb H8 12V 35W

219800149

$41.51

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

$2.75

716

Grommet

709000582

$4.38

720

Handle

572106600

$9.31

722

Hex. Screw K40 X 45

250000718

$1.74

724a

Spring

517168600

$6.91

725

Flat Washer 4 mm, Stainless

234042600

$0.92

760

Deep Black, LH Front Headlight Trim

710008973

$19.20

762

Screw PT Type K-50 X 16

250000959

$1.74

770

Deep Black, RH Front Headlight Trim

710008974

$19.20

1100

12V Power Outlet

710005374

$27.27

1500

Turn Signal | Europe

710001721

$198.43

1501

Hex. Forming Screw M5 X 16

210251650

$0.92

1502

Lock Washer 5 mm | Europe

234151401

$0.46

1503

Flasher Decal | Europe

704902614

$16.89

1550

Flasher Unit

710003239

$78.43

1580

Horn

710004791

$37.66

1585

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1586

Hex. Flange Screw M6 X 20

207662054

$0.83

1590

Flasher | Europe

710002964

$35.35

1591

Torx Truss Screw M6 X 16

250000721

$1.39

1592

Flat Washer 6 mm

234061410

$1.04

1600

Day Light | Europe

710001726

$36.89

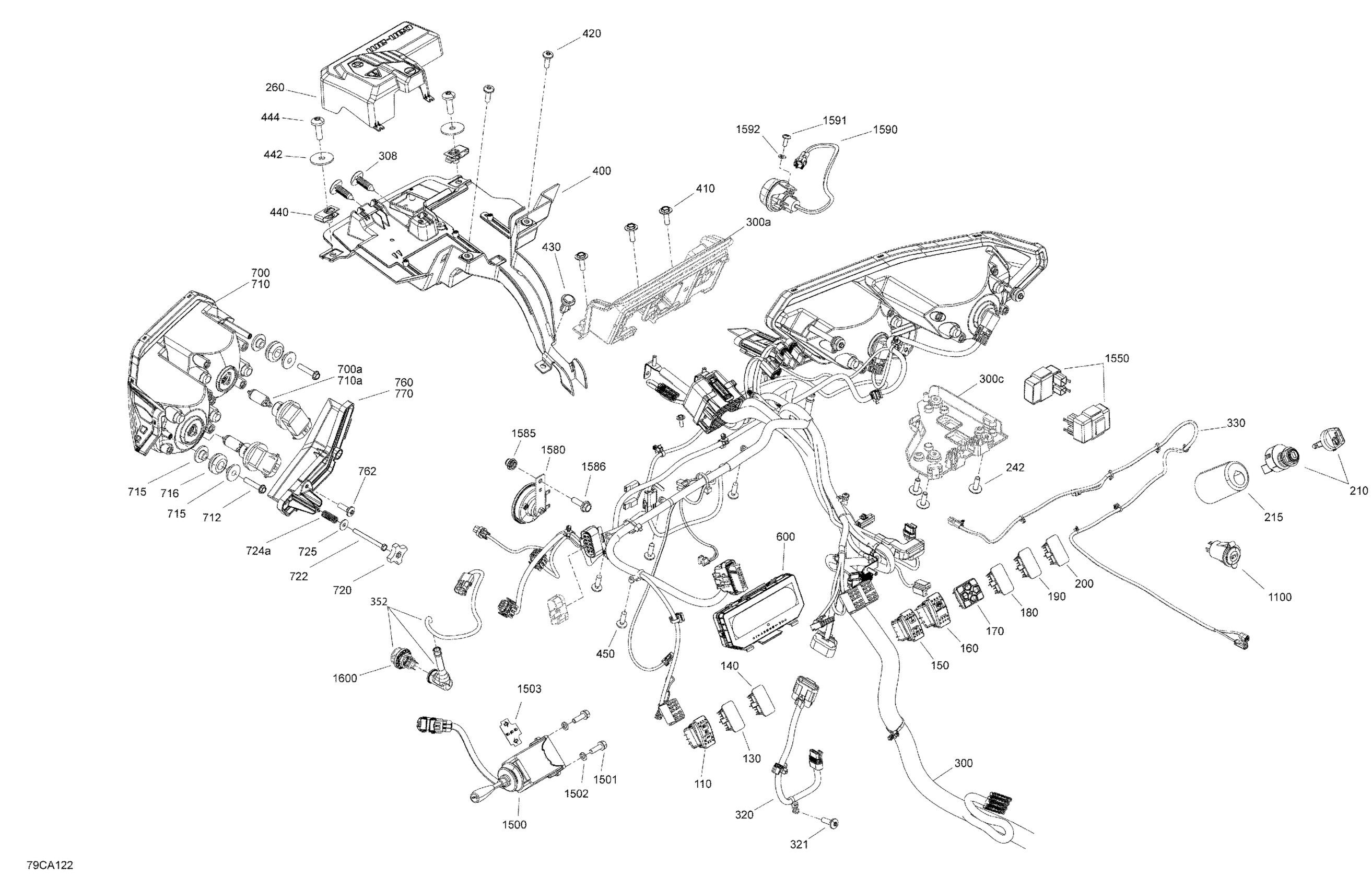

Can-Am Traxter T MAX HD10 - DPS - T Regulation, 2021 Electric - Front System Diagram
