Description

Price

10

Seat Member | Includes 10 to 10a8

703501076

$139.99

10a

Pop Rivet 3/16"

390402200

$0.26

20

Hex. Flange Screw M8 X 25

207682534

$0.90

30

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Seat Plate

708002511

$10.98

41

Pop Rivet 3/16"

293150103

$0.54

50

Operator Seat Member | Includes 50 to 50a7

708001723

$313.82

50a

Pop Rivet 3/16"

390402200

$0.26

60

Mid Seat Member

708002815

$193.82

70

Passenger Seat Member

708002821

$193.82

90

LH Cushion Ass'y

708002481

$235.35

95

LH Cushion Ass'y

708002544

$276.89

100

RH Cushion Ass'y

708001498

$272.28

110

Central Cushion Ass'y

708001629

$235.35

120

Backrest Ass'y

708001701

$359.97

130

Backrest Ass'y | Includes 130 to 130d

708002514

$332.28

130a

Rubber Bumper

293830005

$5.33

140

Backrest Ass'y

708003155

$332.28

150

Seat Base Pivot

708002581

$9.98

160

Hex. Flange Screw M8 X 45

207684544

$3.68

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Hex. Flange Elastic Nut M8

233281414

$1.14

190

Bushing

708001903

$3.08

200

Torx Screw Truss Head K50X20 T20

250000760

$1.74

210

Hex. Screw M6 X 45

207064544

$2.02

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

230

Hex. Screw M8 X 20

207182044

$0.61

250

Pin

250400069

$3.08

260

Hairpin Cotter

269800431

$1.00

270

Latch

269501487

$12.97

280

Grommet

517303756

$3.15

290

Rubber Bumper

293830005

$5.33

300

LH Rail

708000848

$50.74

310

RH Rail | Package XT, Cab

708002001

$36.89

320

Seat Stopper

708003672

$2.75

330

Pop Rivet 3/16"

390402200

$0.26

350

Cover

708002293

$36.89

500a

Headrest

708002853

$55.35

540

Driver Buckle

708002331

$69.20

550

Middle Buckle

708003163

$64.58

560

Passenger Buckle

708002329

$64.58

570

LH Safety Belt

708003082

$230.74

575

RH Safety Belt

708003200

$230.74

580

Central Safety Belt

708003688

$230.74

605

Hex. Screw M12 X 80

207028046

$3.25

610

Elastic Flange Nut M12

233221416

$2.33

620

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

625

Flat Washer M12

250200102

$1.74

630

Lock Nut Nylon 7/16

250100183

$1.64

700

Passenger Detection Switch

710008103

$72.28

710

Torx Screw Truss Head K50X20 T20

250000760

$1.74

6110

Torx Screw Truss Head K50X20 T20

250000760

$1.74

6120

Torx Screw M6 X 20

250000722

$1.34

6130

Flat Washer M6.6 X 22

250200162

$1.91

6140

Elastic Flange Nut M12

233221416

$2.33

6150

Lock Nut Nylon 7/16

250100183

$1.64

6155

Safety Belt screw

708002504

$5.52

6160

Safety Belt Screw

708000890

$3.68

6170

Position Washer

708000891

$1.15

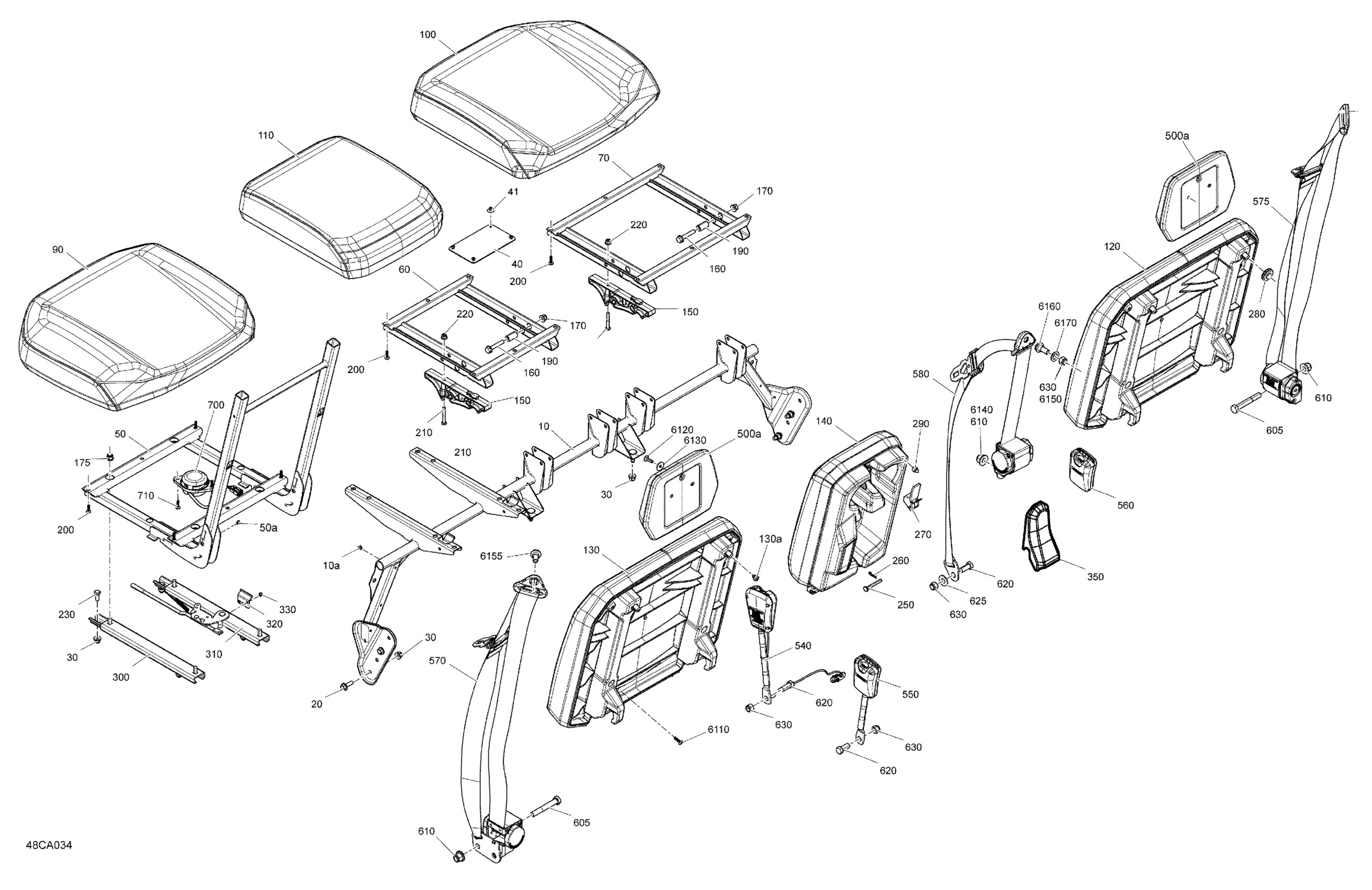

Can-Am Traxter T MAX HD10 - DPS - T Regulation, 2021 Body - Seat Diagram
