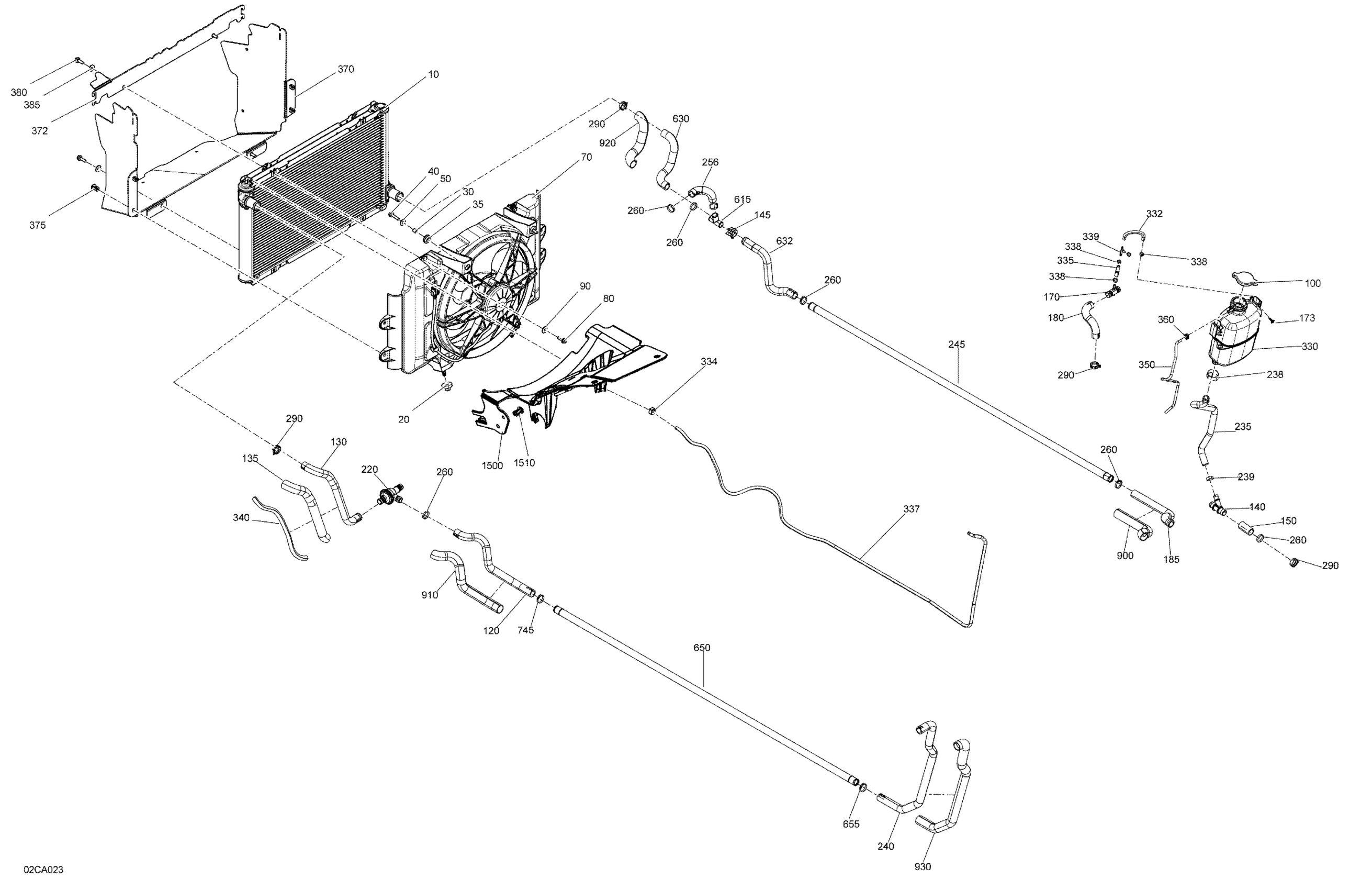

Can-Am Defender MAX HD8 - BASE_DPS_XT - 2021 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

Unavailable

20

Grommet

709200948

Unavailable

30

Bushing

293900105

Unavailable

35

Grommet

709000582

$4.38

40

Hex. Flange Screw M6 X 25

207662544

Unavailable

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200534

Unavailable

80

Hex. Flange Screw M6 X 20

207662044

Unavailable

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

Unavailable

120

Hose

709201028

Unavailable

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

Unavailable

140

Y Fitting

509001200

Unavailable

145

Retainer

275500590

Unavailable

150

Hose

709200299

Unavailable

170

T-Fitting

509000510

$11.52

173

Torx Screw K50 X 16

250000720

$1.39

180

Hose Engine Out

709200915

Unavailable

185

Hose

709200971

Unavailable

220

Thermostat Housing

709200986

Unavailable

235

Hose Coolant Tank Out

709201103

Unavailable

238

Oetiker Gear Clamp

293650165

$4.32

239

Oetiker Gear Clamp

293650165

$4.32

240

Hose

709200969

Unavailable

245

Heater Tubing

709200658

Unavailable

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Gear Clamp

509000162

$5.84

290

Norma Spring Clamp

293650166

Unavailable

330

Coolant Tank

709201323

Unavailable

332

Was 415129508 Bleeder Hose

219704416

Unavailable

334

Oetiker Clamp

293650042

Unavailable

335

Bleeding Hose

709200606

Unavailable

337

Was 415129508 Bleeder Hose

219704416

Unavailable

338

Crimp Clamp, 15.3-706R

293650047

Unavailable

339

Y-Fitting

293710059

Unavailable

340

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

350

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

Unavailable

360

Spring Clamp

414554800

$0.83

370

Front Radiator Deflector

705013987

$50.74

372

Front Radiator Deflector

705014486

$50.74

375

Tuflok Plastic Rivet

293150230

Unavailable

380

Hex. Flange Screw M6 X 20

207662044

Unavailable

385

Flat Washer 6 mm

234062410

$0.64

615

T-Fitting

509000219

Unavailable

630

Formed Radiator Hose OUT

709201440

Unavailable

632

Hose Radiator Out

709201029

Unavailable

650

Heater Tubing

709200658

Unavailable

655

Gear Clamp

509000162

$5.84

745

Gear Clamp

509000162

$5.84

900

Tubing 35 MM 1000MM Long

219704428

Unavailable

900

Tubing 35 MM 1000MM Long

219704428

Unavailable

910

Tubing 35 MM 1000MM Long

219704428

Unavailable

920

Tubing 35 MM 1000MM Long

219704428

Unavailable

930

Tubing 35 MM 1000MM Long

219704428

Unavailable

1500

Front Air Deflector

709201036

Unavailable

1510

Tuflok Plastic Rivet

293150230

Unavailable
