Description

Price

10

Squadron Green, LH Front Fender | Green Model

705012590

$285.35

15

Panel Nut M6 X 1.0

250100198

Unavailable

20

Squadron Green, RH Front Fender | Green Model

705012591

$285.35

25

Panel Nut M6 X 1.0

250100198

Unavailable

30

Tuflok Plastic Rivet

293150230

Unavailable

40

Washer

503192494

Unavailable

100

Multi Purpose Support

705013766

$40.74

105

Torx Screw M6 X 20

250000722

Unavailable

110

Panel Nut M6 X 1.0

250100198

Unavailable

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

116

Stainless Steel Flat Washer

234062670

$1.74

120

Hex. Flange Screw M6 X 75

207667554

$3.61

130

Push Nut

732610072

Unavailable

135

Bushing

293900125

$2.75

160

Squadron Green, Front Hood

705014054

$130.74

320

Grille

705013590

$24.58

330

Clip

517306478

Unavailable

395

Screw M4 X 16

250000725

Unavailable

400

Deep Black, Front Fascia

705013591

$213.05

410

Torx Screw M8 X 30

250000886

Unavailable

420

Washer

503192494

Unavailable

430

Hex. Flange Elastic Nut M8

233281414

Unavailable

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$11.15

455

RH Front Reflector

704905073

$11.15

510

Torx Screw M6 X 20

250000722

Unavailable

520

Panel Nut M6 X 1.0

250100198

Unavailable

525

Torx Screw M6 X 20

250000722

Unavailable

530

Stainless Steel Flat Washer

234062670

$1.74

550

Torx Screw K50 X 16

250000720

$1.39

555

Flat Washer M5

234051670

Unavailable

860

LH Front Lateral Panel

705008152

$59.97

870

RH Front Lateral Panel

705008153

$59.97

935

Torx Screw K50 X 16

250000720

$1.39

940

Deep Black, LH Rear Body Panel

705013658

$106.12

941

Black, Nylon Cap

414916600

$4.32

945

Tuflok Plastic Rivet

293150230

Unavailable

950

Deep Black, RH Rear Body Panel

705013659

Unavailable

955

Tuflok Plastic Rivet

293150230

Unavailable

960

Torx Screw M6 X 20

250000722

Unavailable

970

Panel Nut M6 X 1.0

250100198

Unavailable

975

Tuflok Plastic Rivet

293150230

Unavailable

1000

Deep Black, LH Central Panel

705019037

Unavailable

1005

Torx Truss Screw M6 X 25

250000807

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1020

Deep Black, RH Central Panel

705019038

Unavailable

1025

Torx Truss Screw M6 X 25

250000807

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1030

Pop Rivet 3/16”

293150108

$1.23

1035

Pop Rivet 3/16”

293150108

$1.23

1100

LH Middle Side Panel

705013660

$106.12

1105

Torx Truss Screw M6 X 25

250000807

$1.74

1110

Insert

707900133

Unavailable

1115

Tuflok Plastic Rivet

293150230

Unavailable

1120

Torx Truss Screw M6 X 25

250000807

$1.74

1122

Flat Washer M6.6 X 22

250200162

Unavailable

1125

Stainless Steel Flat Washer

234062670

$1.74

1130

Torx Truss Screw M6 X 25

250000807

$1.74

1135

Flat Washer M6.6 X 22

250200162

Unavailable

1150

LH Middle Cage Cover

705010601

$36.12

1155

Flat Washer M6.6 X 22

250200162

Unavailable

1156

Torx Truss Screw M6 X 25

250000807

$1.74

1160

RH Middle Cage Cover

705010602

$36.12

1165

Flat Washer M6.6 X 22

250200162

Unavailable

1166

Torx Truss Screw M6 X 25

250000807

$1.74

1167

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

1200

RH Middle Side Panel

705013661

$106.12

1205

Torx Truss Screw M6 X 25

250000807

$1.74

1210

Insert

707900133

Unavailable

1215

Tuflok Plastic Rivet

293150230

Unavailable

1220

Torx Truss Screw M6 X 25

250000807

$1.74

1222

Flat Washer M6.6 X 22

250200162

Unavailable

1225

Stainless Steel Flat Washer

234062670

$1.74

1230

Torx Truss Screw M6 X 25

250000807

$1.74

1235

Flat Washer M6.6 X 22

250200162

Unavailable

1300

LH Rear Cage Cover Kit

715006542

$27.66

1330

Tuflok Plastic Rivet

293150230

Unavailable

1335

Washer

503192494

Unavailable

1400

RH Rear Cage Cover Kit

715006543

$26.12

1430

Tuflok Plastic Rivet

293150230

Unavailable

1435

Washer

503192494

Unavailable

1880

Tuflok Plastic Rivet

293150230

Unavailable

2100

Tuflok Plastic Rivet

293150230

Unavailable

5400

LH Rear Deflector

705016336

Unavailable

5410

Flat Washer 8 mm, Nylon

292001663

Unavailable

5450

RH Rear Deflector

705016337

Unavailable

5460

Flat Washer 8 mm, Nylon

292001663

Unavailable

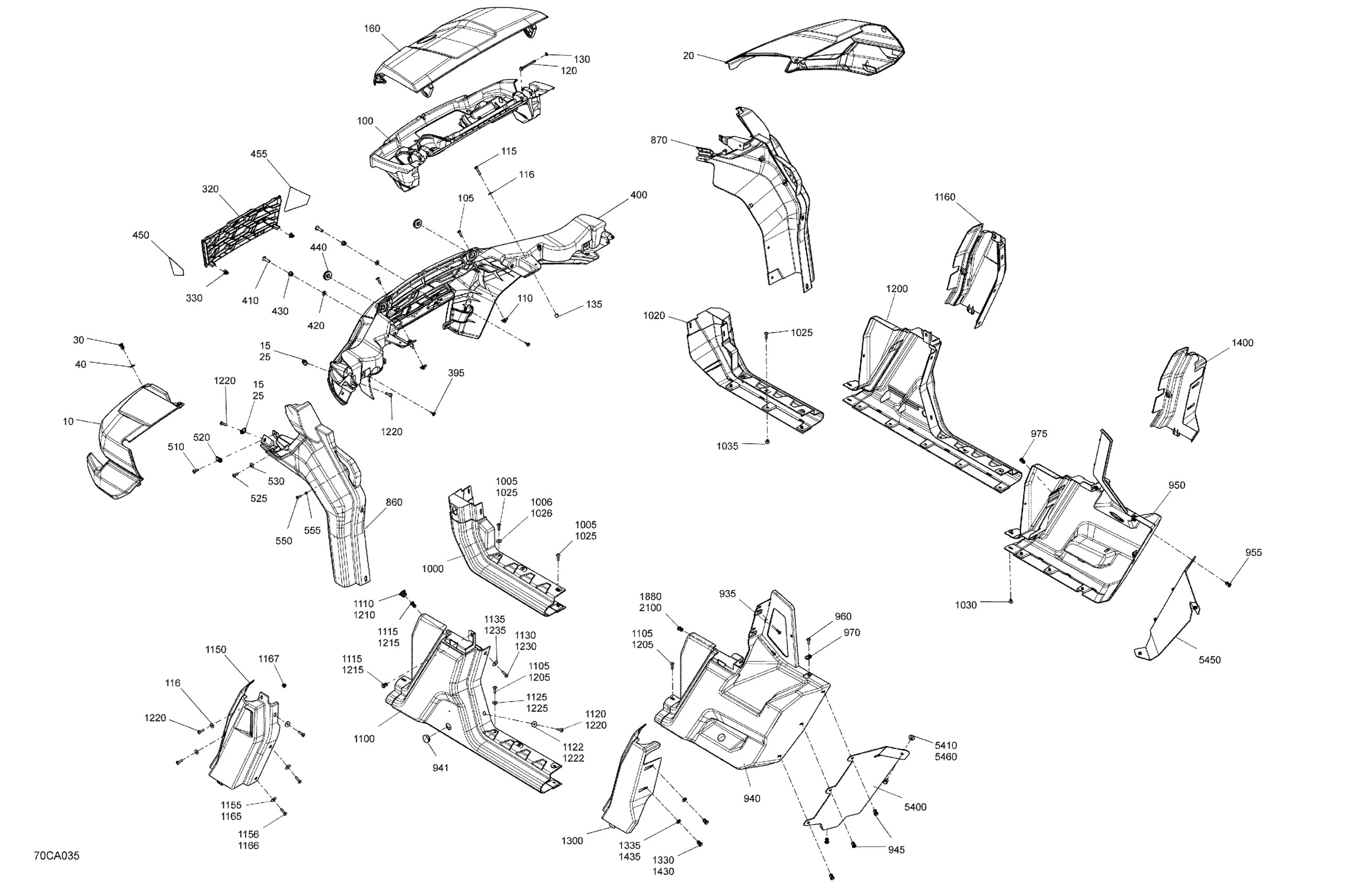

Can-Am Traxter MAX HD8 - DPS - CE, 2021 Body - System Diagram

Panel Nut M6 X 1.0

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

Washer

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Push Nut

Clip

Screw M4 X 16

Torx Screw M8 X 30

Washer

Hex. Flange Elastic Nut M8

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Flat Washer M5

Tuflok Plastic Rivet

Deep Black, RH Rear Body Panel

Tuflok Plastic Rivet

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Tuflok Plastic Rivet

Deep Black, LH Central Panel

Deep Black, RH Central Panel

Insert

Tuflok Plastic Rivet

Flat Washer M6.6 X 22

Flat Washer M6.6 X 22

Flat Washer M6.6 X 22

Flat Washer M6.6 X 22

Insert Half Hex Body M6 x 1.0

Insert

Tuflok Plastic Rivet

Flat Washer M6.6 X 22

Flat Washer M6.6 X 22

Tuflok Plastic Rivet

Washer

Tuflok Plastic Rivet

Washer

Tuflok Plastic Rivet

Tuflok Plastic Rivet

LH Rear Deflector

Flat Washer 8 mm, Nylon

RH Rear Deflector

Flat Washer 8 mm, Nylon
