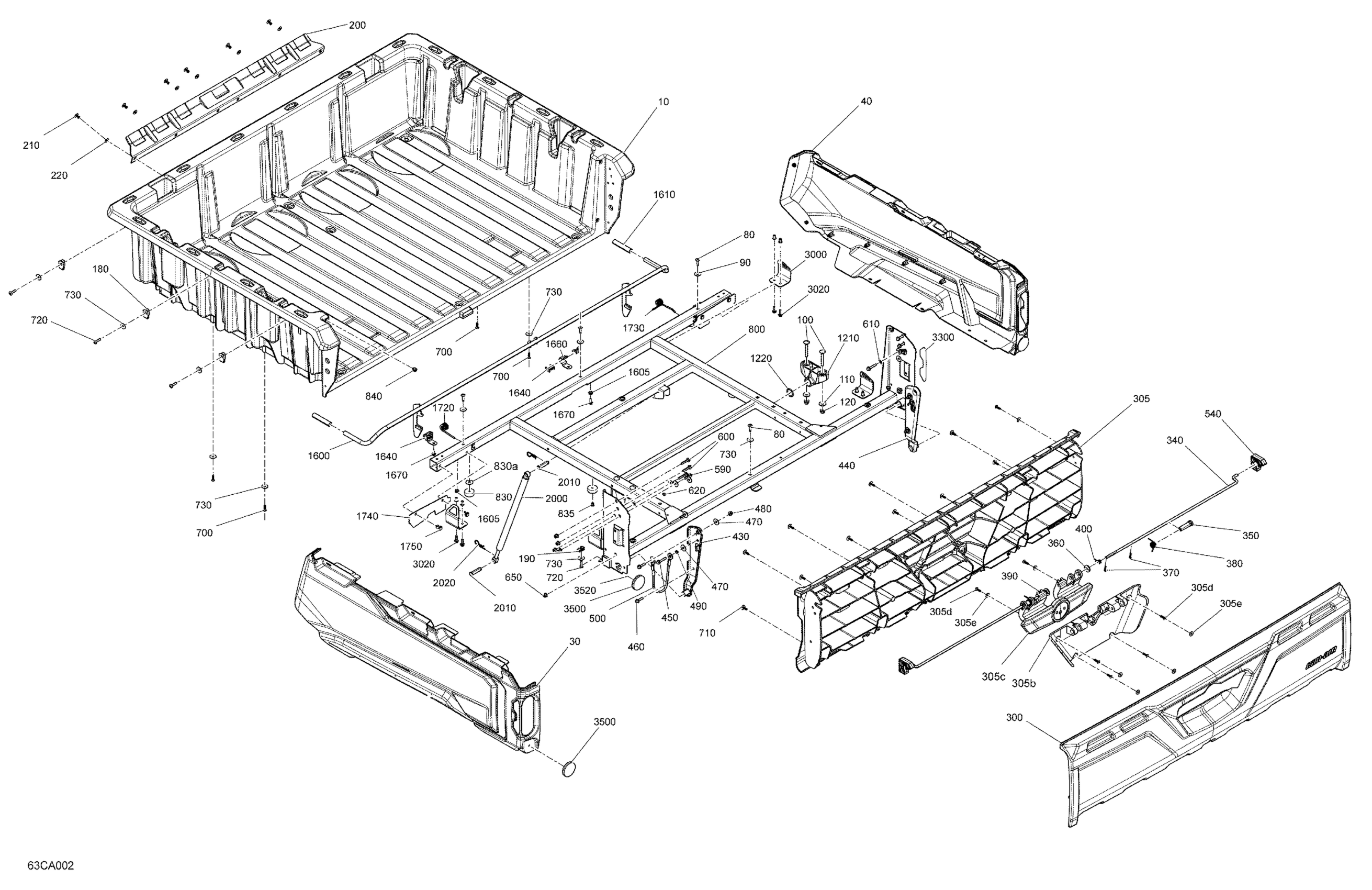

Can-Am Traxter MAX HD8 - DPS - CE, 2021 Body - Cargo Diagram

#

Description
Price

10

Cargo Box Inside Kit

715006551

$424.58

30

LH Panel Exterior

708304328

Unavailable

40

RH Panel

708302579

Unavailable

80

Torx Screw M6 X 25 | XT Models

250000728

Unavailable

90

Flat Washer M6.6 X 22

250200162

Unavailable

100

Carriage Bolt M8 X 60

207786044

Unavailable

110

Flat Washer 8 mm

234082410

$1.11

120

Hex. Flange Elastic Nut M8

233281414

Unavailable

180

Panel Nut M6 X 1.0

250100224

$1.70

190

Panel Nut M6 X 1.0

250100198

Unavailable

200

Deflector

708302584

Unavailable

210

Pop Rivet 3/16”

293150108

$1.23

220

Washer

517124300

Unavailable

300

Outside Tailgate

708301227

Unavailable

305

Panel Cargo Box Ass'y | Includes 305 to 305f

708302914

Unavailable

305b

Handle Support

708302913

Unavailable

305c

Handle

708302911

Unavailable

305d

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

305e

Washer M5

250200025

Unavailable

340

Handle Rod

708301500

Unavailable

350

Bushing Hinge

708304564

Unavailable

360

Washer

708301653

Unavailable

370

Hairpin Cotter

269800431

Unavailable

380

Spring

705009468

$4.62

390

Spring

705009470

$12.91

400

Spring

705009471

$12.91

430

LH Tailgate Support

708304219

Unavailable

440

RH Tailgate Support

708304221

Unavailable

450

Hex. Flange Screw M6 X 35

207663554

Unavailable

460

Hex. Flange Screw M6 X 25

207662554

$1.48

470

Flat Washer M6.6 X 22

250200162

Unavailable

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

490

Bushing

708300737

Unavailable

500

Cable

708301491

Unavailable

540

Latch Stopper

708304062

Unavailable

590

Hex. Flange Screw M6 X 25

207662554

$1.48

600

Hex. Flange Screw M6 X 35

207663554

Unavailable

610

Flat Washer

224061121

$0.44

620

Bushing

708300737

Unavailable

650

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

700

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

710

Washer M5

250200025

Unavailable

720

Torx Truss Screw M6 X 25

250000807

$1.74

730

Flat Washer M6.6 X 22

250200162

Unavailable

800

Open Carrier Frame

708303654

Unavailable

830

Rubber Stopper | Includes 830 to 830a

708303134

Unavailable

830a

Washer

224060251

Unavailable

835

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

840

Rubber Bumper

293830005

$5.33

1210

Support Pivot

708303735

Unavailable

1220

O-Ring

293300131

Unavailable

1600

Latch Lever

708303088

Unavailable

1605

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

1610

Cap Latch Lever

708300358

Unavailable

1640

Half Ring

705500033

$4.92

1660

Clamp Retainer

708301479

Unavailable

1670

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

1720

LH Torsion Spring

708303190

Unavailable

1730

RH Torsion Spring

708303191

Unavailable

1740

Deflector

708303097

Unavailable

1750

Tuflok Plastic Rivet

293150230

Unavailable

2000

Gas Shock Absorber

715007129

$50.74

2010

Pin Clevis

250400098

Unavailable

2020

Hair Pin

414575600

Unavailable

3000

Retaining Plate

708301480

Unavailable

3020

Hex. Flange Screw M6 X 20

207662054

$0.83

3300

Reflector

704905074

$11.15

3500

Red Reflector

705011221

Unavailable

3520

Elastic Stop Nut M5

232551414

Unavailable
