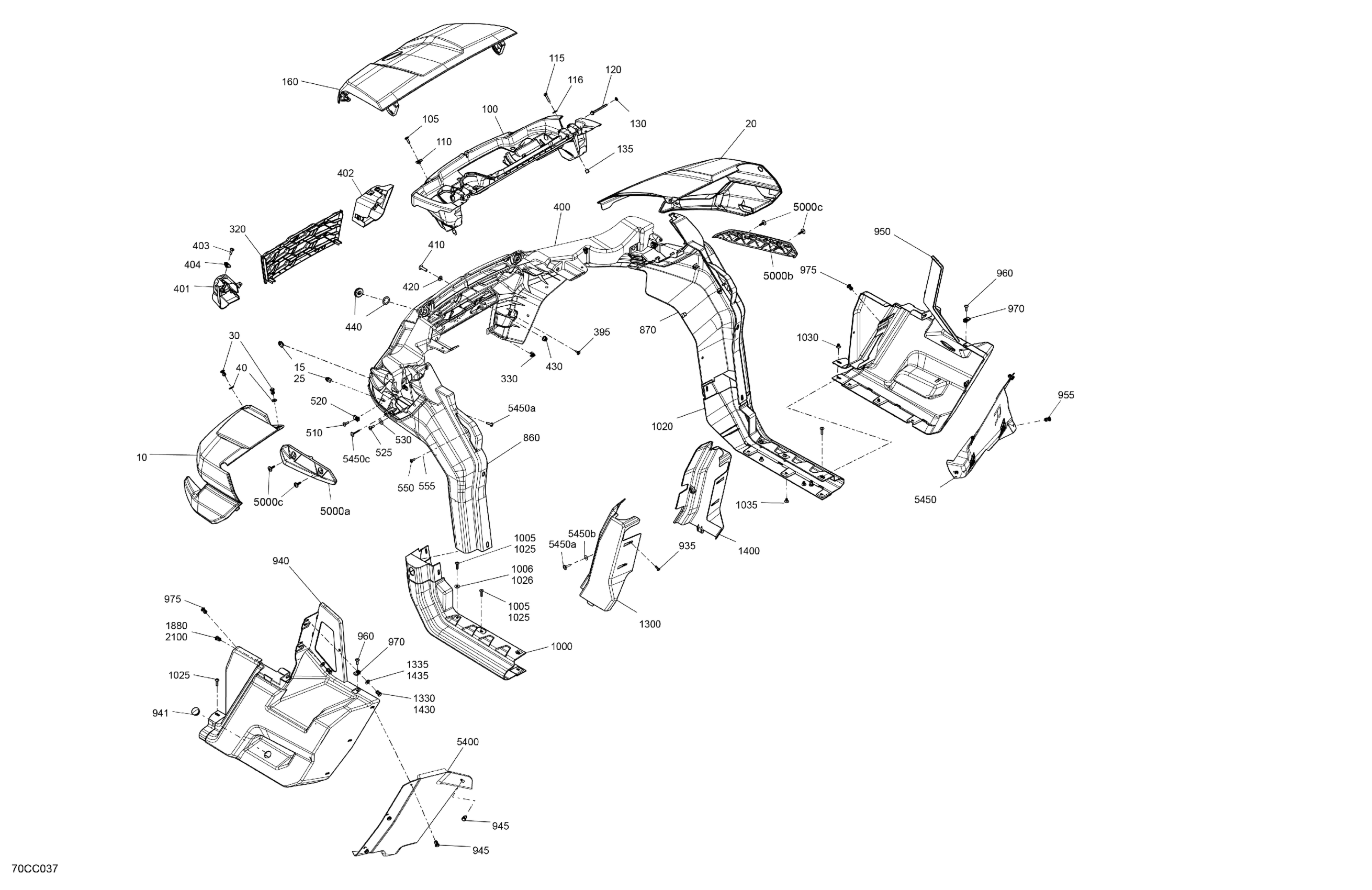

Can-Am Traxter HD10 - XU - T Regulation, 2023 Body - System Diagram

#

Description
Price

10

Timeless Black, LH Front Fender

705015673

$184.30

15

Panel Nut M6 X 1.0

250100198

$1.73

20

Timeless Black, RH Front Fender

705015674

$184.30

25

Panel Nut M6 X 1.0

250100198

$1.73

30

Tuflok Plastic Rivet

293150230

$1.21

40

Washer

503192494

$3.01

100

Multi Purpose Support

705013766

$39.52

105

Torx Screw M6 X 20

250000722

$1.34

110

Panel Nut M6 X 1.0

250100198

$1.73

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

116

Stainless Steel Flat Washer

234062670

$1.74

120

Hex. Flange Screw M6 X 75

207667554

$3.61

130

Push Nut

732610072

$1.72

135

Bushing

293900125

$2.69

160

Timeless Black, Front Hood

705015666

$340.27

320

Grille

705013590

$23.85

330

Clip

517306478

$1.03

395

Screw M4 X 16

250000725

$2.87

400

Deep Black, Front Fascia

705014165

$206.69

401

LH Flasher Cap

705012285

$10.67

402

RH Flasher Cap

705012286

$10.67

403

Torx Screw M6 X 20

250000722

$1.34

404

Panel Nut M6 X 1.0

250100198

$1.73

410

Torx Screw M8 X 30

250000886

$1.74

420

Washer

503192494

$3.01

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Grommet

705010718

$2.69

510

Torx Screw M6 X 20

250000722

$1.34

520

Panel Nut M6 X 1.0

250100198

$1.73

525

Torx Screw M6 X 20

250000722

$1.34

530

Stainless Steel Flat Washer

234062670

$1.74

550

Torx Screw K50 X 16

250000720

$1.39

555

Flat Washer M5

234051670

$1.74

860

LH Front Lateral Panel

705008152

$55.94

870

RH Front Lateral Panel

705008153

$55.94

935

Torx Screw K50 X 16

250000720

$1.39

940

Deep Black, LH Rear Body Panel

705013658

$99.22

941

Black, Nylon Cap

414916600

$4.19

945

Tuflok Plastic Rivet

293150230

$1.21

950

Deep Black, RH Rear Body Panel

705013659

$99.22

955

Tuflok Plastic Rivet

293150230

$1.21

960

Torx Screw M6 X 20

250000722

$1.34

970

Panel Nut M6 X 1.0

250100198

$1.73

975

Tuflok Plastic Rivet

293150230

$1.21

1000

Deep Black, LH Central Panel

705019037

$64.15

1005

Torx Truss Screw M6 X 25

250000807

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1020

Deep Black, RH Central Panel

705019038

$67.13

1025

Torx Truss Screw M6 X 25

250000807

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1030

Pop Rivet 3/16”

293150108

$1.19

1035

Pop Rivet 3/16”

293150108

$1.19

1300

LH Rear Cage Cover Kit

715006542

$24.60

1330

Tuflok Plastic Rivet

293150230

$1.21

1335

Washer

503192494

$3.01

1400

RH Rear Cage Cover Kit

715006543

$25.34

1430

Tuflok Plastic Rivet

293150230

$1.21

1435

Washer

503192494

$3.01

1880

Tuflok Plastic Rivet

293150230

$1.21

2100

Tuflok Plastic Rivet

293150230

$1.21

5000a

LH Front Deflector

705015795

$25.34

5000b

RH Front Deflector

705015796

$25.34

5000c

Torx Screw Truss Head PT.K50 X 25

250000907

$1.48

5400

LH Rear Deflector

705016336

$46.24

5450

RH Rear Deflector

705016337

$46.24

5450a

Torx Truss Screw M6 X 25

250000807

$1.74

5450b

Stainless Steel Flat Washer

234062670

$1.74

5450c

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56
