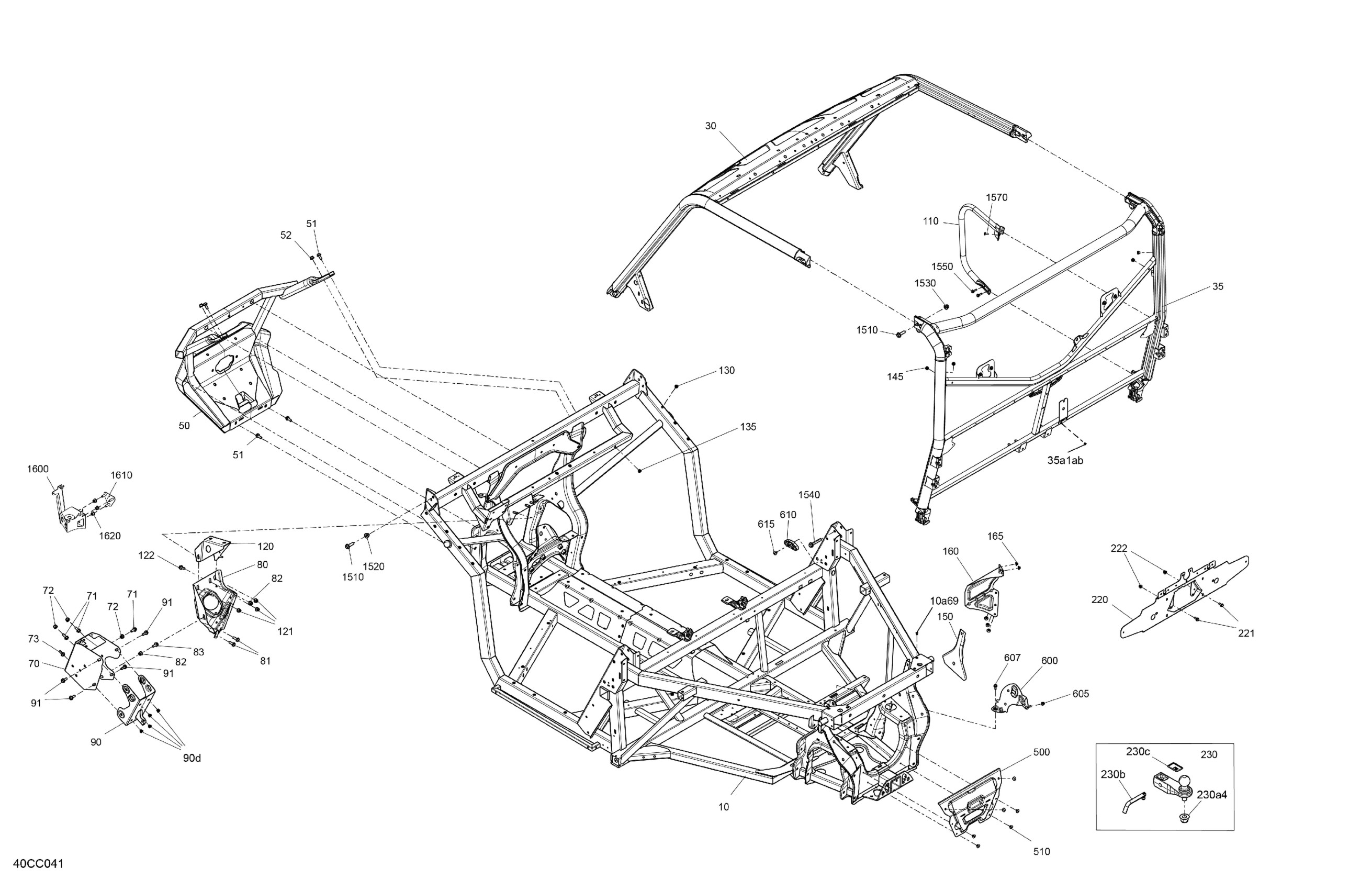

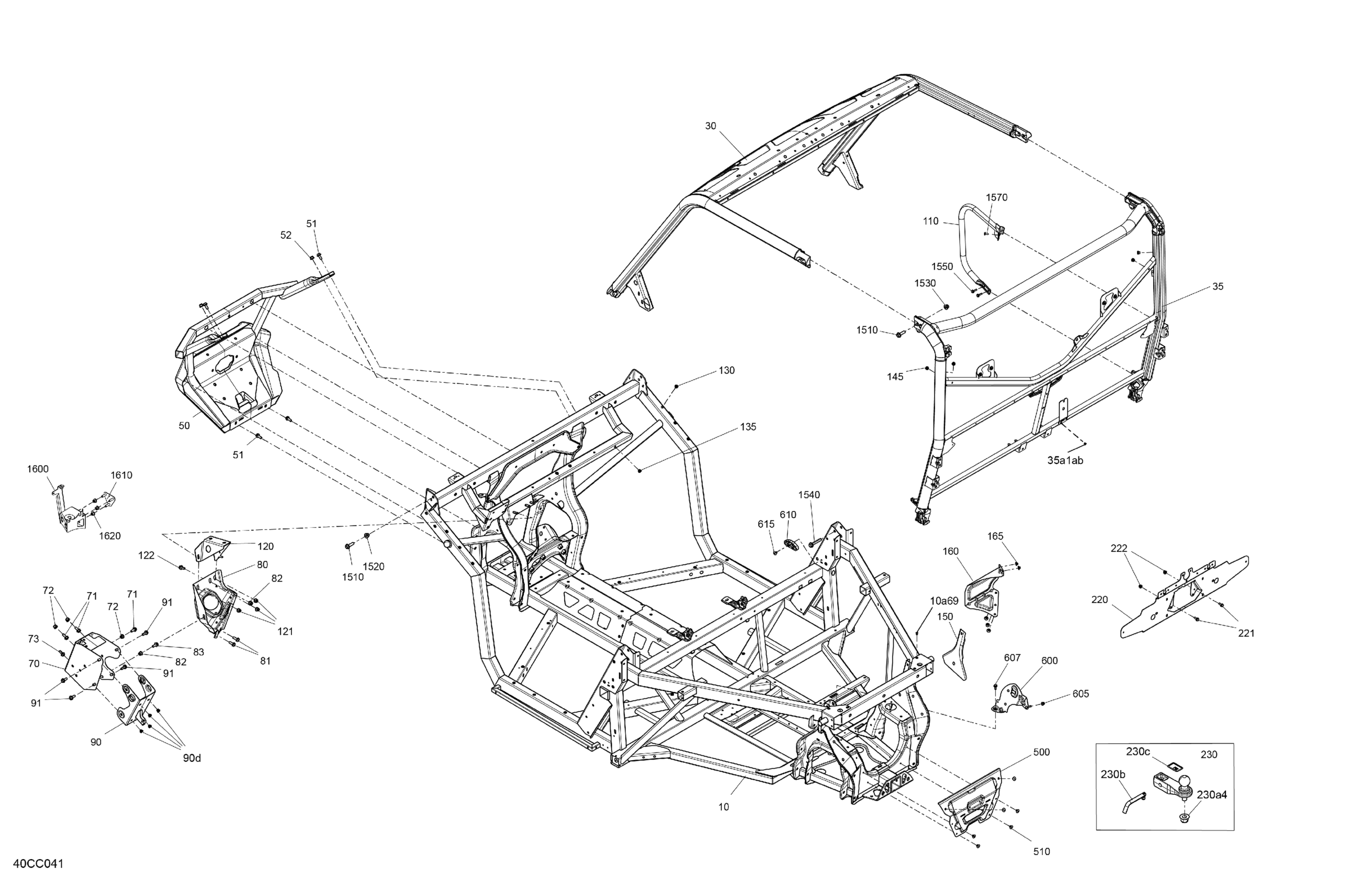

Can-Am Traxter HD10 - XU - T Regulation, 2023 Frame - System Diagram

#

Description
Price

10

Deep Black, Chassis Kit

715009079

$2,589.99

10a69

Pop Rivet 3/16"

390402200

$0.26

30

Front Cage Ass'y

715008424

$649.99

35

Rear Cage Ass'y | Includes 35 to 35a1ab

715009067

$549.99

35a1ab

Pop Rivet 3/16"

390402200

$0.26

50

Deep Black, Front Bumper

705207588

$493.25

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Elastic Flange Nut M8

233281416

$1.25

70

Module Support

705209388

$50.72

71

Hex. Flange Screw M8 X 20

207682044

$0.92

72

Hex. Elastic Flange Nut M8

233281416

$1.25

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

80

Power Steering Support

705208741

$63.40

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

82

Hex. Elastic Flange Nut M8

233281416

$1.25

83

Hex. Flange Screw M8 X 20

207682044

$0.92

90

Steering Column Support | Includes 90 to 90d

705209190

$33.55

90d

Insert Half Hex Body M6 x 1.0

250100199

$2.54

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

110

Deep Black, RH Guard

705210930

$41.01

120

Support

705208742

$27.58

121

Hex. Elastic Flange Nut M8

233281416

$1.25

122

Hex. Flange Screw M8 X 20

207682044

$0.92

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Insert Half Hex Body M6 x 1.0

250100199

$2.54

145

Insert Half Hex Body M6 x 1.0

250100199

$2.54

150

Heat Shield

705014849

$2.59

160

Heat Shield

707002709

$46.24

165

Pop Rivet 3/16"

293150103

$0.52

220

Licence Plate Support

705014656

$103.70

221

Hex. Flange Screw M6 X 16

207661644

$0.61

222

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

230

Drawbar Ass'y | Includes 230 to 230c

705208230

$166.49

230a4

Elastic Flange Nut M20

250100104

$9.71

230b

Hitch Pin

705204490

$52.96

230c

Hitch Approval Decal

704906897

$16.39

500

Rear Chassis Reinforcement

705207753

$30.57

510

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

600

Voltage Regulator Support

710007522

$15.64

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

610

Spacer

705208203

$17.13

615

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

1600

Module Support

705601905

$76.84

1610

Support

705209564

$8.84

1620

Hex. Elastic Flange Nut M8

233281416

$1.25

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Hex. Flange Elastic Nut M10

233201436

$1.74

1530

Flange Elastic Nut M10

233201466

$2.63

1540

Hex. Flange Screw M10 X 6

207606046

$3.38

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1570

Torx Truss M6X14

250000789

$4.41
