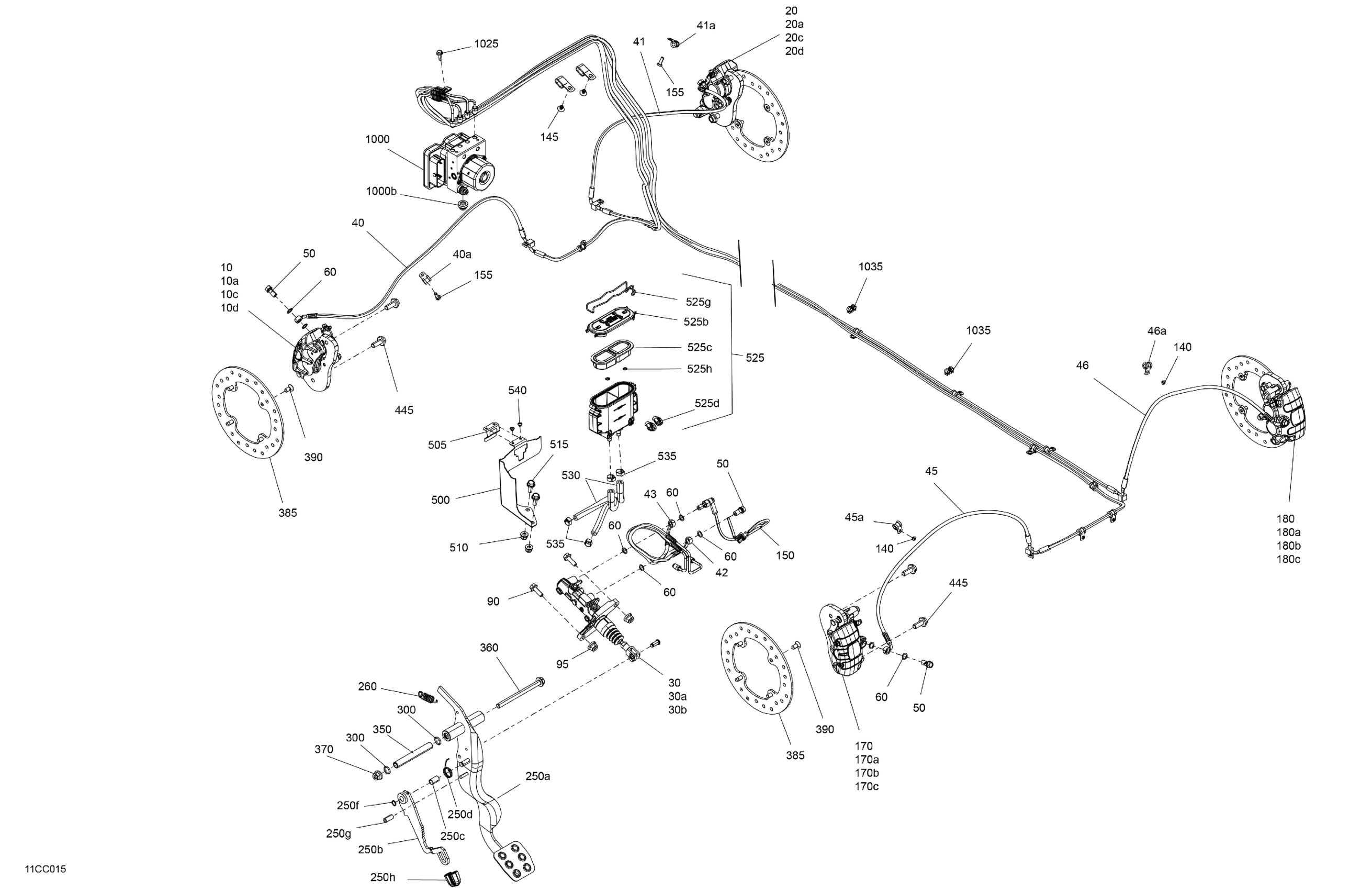

Can-Am Traxter HD10 - XU - T Regulation, 2023 Mechanic - Brake System Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$223.85

10a

LH Brake Pads

715900379

$108.18

10c

Bleeding Screw

705601017

$5.90

10d

Cap Spring Kit

715900385

$16.39

20

RH Front Brake Caliper | RH Front

705601888

$223.85

20a

RH Brake Pads

715900380

$108.18

20c

Bleeding Screw

705601017

$5.90

20d

Cap Spring Kit

715900385

$16.39

30

Master Cylinder | Includes 30 to 30b

705601803

$261.16

30a

Boot Rod Kit

715900373

$47.73

30b

Fork Kit

715900374

$24.60

40

LH Front Caliper Hose | Includes 40 to 40a

705601906

$133.55

40a

Clamp

293650256

$4.36

41

RH Front Caliper Hose | Includes 41 to 41a

705601907

$145.49

41a

Clamp

293650256

$4.36

42

Front Master Cylinder Hose

705601915

$133.55

43

Rear Master Cylinder Hose

705601916

$131.31

45

LH Rear Caliper Hose | Includes 45 to 45a

705601908

$145.49

45a

Clamp

293650256

$4.36

46

RH Rear Caliper Hose | Includes 46 to 46a

705601909

$145.49

46a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

60

Copper Washer

705601628

$4.21

90

Hex. Flange Screw M8 X 25

207682544

$0.90

95

Hex. Elastic Flange Nut M8

233281416

$1.25

140

Pop Rivet 3/16"

390402200

$0.26

145

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

150

Brake Switch

705601669

$47.73

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

170

LH Rear Brake Caliper | LH Rear

705601928

$196.99

170a

LH Brake Pads

715900381

$108.18

170b

Bleeding Screw

705601017

$5.90

170c

Cap Spring Kit

715900385

$16.39

180

RH Rear Brake Caliper | RH Rear

705601929

$196.99

180a

RH Brake Pads

715900382

$108.18

180b

Bleeding Screw

705601017

$5.90

180c

Cap Spring Kit

715900385

$16.39

250a

Brake Pedal | Includes 250 to 250a

705601777

$51.46

250b

Lever

705601725

$10.82

250c

Bushing

705601722

$7.60

250d

Spring

705601729

$8.85

250f

Circlip

705601770

$2.68

250g

Hose

219704549

$46.24

250h

Adjustment Handle

708002655

$13.99

260

Brake Pedal Spring

705600792

$8.42

300

O-Ring

293300144

$3.79

350

Inside Sleeve

705601373

$10.12

360

Hex. Flange Screw, M10 X 130

230603046

$6.08

370

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Brake Disc

705601511

$101.46

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

445

Hex. Flange Screw M10 X 25

207502546

$1.74

500

Support

705601567

$12.64

505

Stopper Bracket

705601608

$5.90

510

Hex. Flange Elastic Nut M8

233281414

$1.14

515

Hex. Flange Screw M8 X 20

207682044

$0.92

525

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$105.19

525b

Diaphragm Cover Ass'y

219800350

$16.39

525c

Diaphragm Cover Ass'y

219800350

$16.39

525d

Oil Level Sensor

705601073

$49.22

525g

Spindle Lock

705601294

$13.51

525h

Push Nut | Not shown

211100002

$0.83

530

Hose

705601603

$8.58

535

Oetiker Clamp

293650046

$2.33

540

Pop Rivet 3/16"

390402200

$0.26

1000

Module ESP Wet Prog & Grommet Kit | Includes 1000 to 1000b

703501118

$1,379.07

1000b

Shock Damper

710003279

$9.28

1025

Hex. Flange Screw M6 X 16

207661644

$0.61

1035

Hose Clip

705601818

$16.39

2000

Pin Kit | Packages STD & PRO

715900384

$10.30
