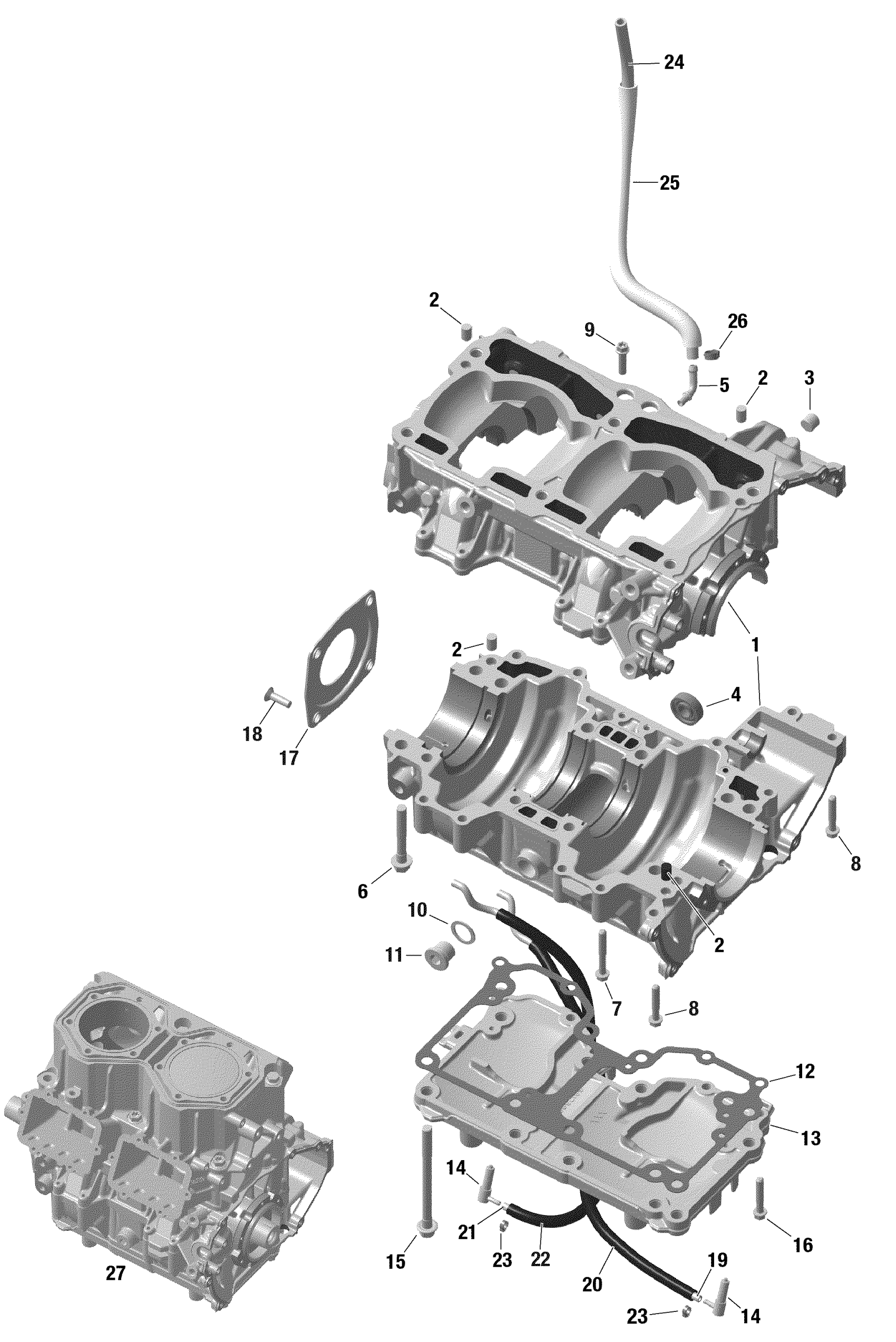

Ski-Doo SUMMIT 850 E-TEC - SP - Package 165" 2022 Rotax - Crankcase - Shot Diagram

#

Description
Price

1

Crankcase | Includes no. 1-6

420893774

$1,194.58

2

Center Pin 8 X 12

420632010

$3.07

3

Plug Screw M12x1,5

420840658

$7.31

4

Ball Bearing

420232100

$15.57

5

Impulse Fitting

420924529

$8.34

6

Hex. Screw M8 X 56.5

420941627

$8.34

7

Torx Flange Screw M6 X 45

420440324

$0.81

8

Torx Flange Screw M6 X 35

420440274

$0.83

9

Torx Flange Screw M6 X 25

420440234

$3.00

10

O-Ring

420430622

$3.61

11

Plug Screw

420640457

$14.54

12

Engine Support Gasket | Included in gasket kit

420430072

$23.82

13

Engine Support

420812688

$103.82

14

Check Valve

420956511

$28.57

15

Screw M8x105

420941518

$10.45

16

Torx Flange Screw M6 X 35

420440274

$0.83

17

Oil Seal Cover

420812422

$14.54

18

Screw M6 X 20

420941436

$2.37

19

Oil Line 585 mm This part replaces 420201921.

420201928

$5.22

20

Tube 390MM

420460042

$8.34

21

Oil Line 585 mm This part replaces 420201921.

420201928

$5.22

22

Slider Shoe This part replaces 420460045.

417223021

$6.09

23

Clamp

420851508

$12.52

24

Oil Line 310MM

420201551

$7.31

25

Protector Tube

420460047

$12.52

26

Clamp

420853653

$7.23

27

Engine

420084914

$3,153.83

27

Engine

420084914

$3,153.83
