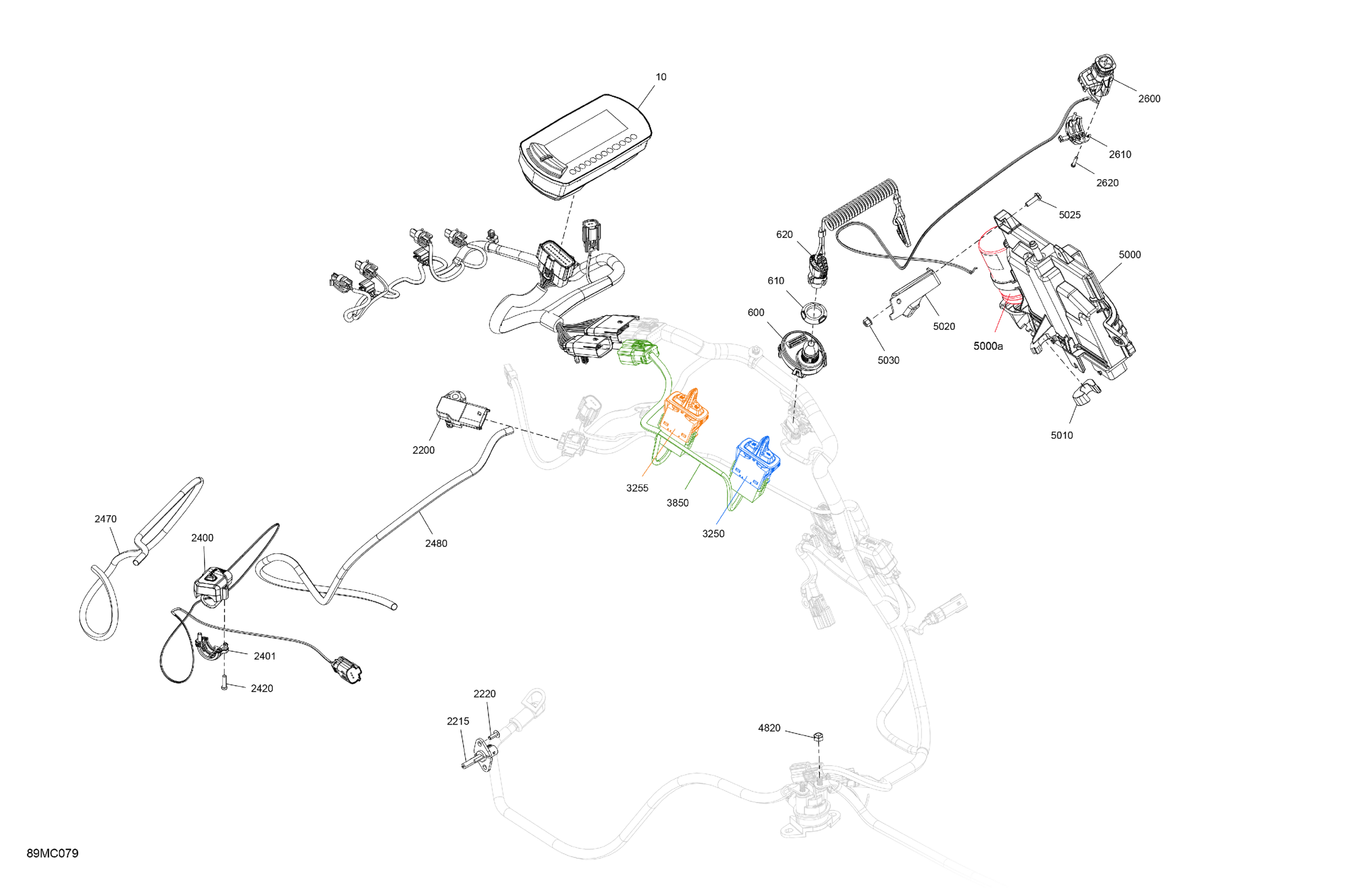

Ski-Doo SUMMIT 850 E-TEC - EDGE - Package 154" (CGPF) - 2023 Electric - Upper Section Diagram

Description

Price

2 Button Multifunction Gauge Full Size Color

515178226

$541.01

600

Ignition Switch

710006855

$75.34

610

Specialized Nut

278004274

$3.12

620

Grey, Ski-Doo DESS Key

515179475

$62.66

2200

Pressure And Temperature Sensor

707000995

$81.31

2215

Air Temperature Sensor

515176366

$17.88

2220

Torx Truss PT K40 x 12

250001131

$2.00

2400

Ignition Switch

515179056

$66.39

2401

Clamp

515177952

$8.31

2420

Torx Screw

250000671

$0.96

2470

Braided Sleeve

415130141

$54.45

2480

Braided Sleeve

415130141

$54.45

2600

Emergency Stop Switch

515177931

$72.36

2610

Emergency Stop Switch Support

515177310

$8.34

2620

Torx Screw #8-18

250000263

$0.99

3250

Switch Rocker Hand Warmer

515178462

$18.63

3255

Switch Rocker Headlignt

515178463

$18.63

3850

Console Wiring Harness

515179085

$70.12

4820

Elastic Stop Nut M6

232561434

$1.78

5000

ECM Module | Includes 5000a to 5000a2

515179352

$571.61

5000a

Capacitor

515177272

$82.81

5010

Rubber Stopper

515178430

$2.03

5020

Module Support

515178159

$4.15

5025

Hex. Flange Screw, Scotch Grip

207551634

$1.91

5030

Flange Elastic Nut M5

233251434

$1.91
