Description

Price

400a

RH Front Caliper Hose

705601559

$78.00

400b

Copper Washer

705601628

$4.34

400c

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

400d

LH Front Caliper Hose

705601560

$78.00

400f

Socket Head Screw M8 x 45, Scotch Grip

250000988

$1.00

400g

Rear Caliper Hose

705601561

$78.00

400h

Was 409902200 Tubing 25 mm

219704401

Unavailable

400j

Brake Fluid Reservoir Ass'y | Included 400j to 400j3

705601918

$71.00

400j2

Rubber Diaphragm (seal)

705601610

$18.00

400j3

Brake Fluid Cap | Included 400j3 to 400j3b

705601943

$2.00

400j3a

Not Available As Spare Part - Friction Washer

Unavailable

400j3b

Not Available As Spare Part - Friction Washer

Unavailable

400k

Master Cylinder Tandem Brake

705601580

$185.00

400m

Seal Master Cylinder

705601715

$1.00

400n

Spring Pin 5.3MM x 40MM

705601716

$1.00

400p

RH Caliper Slider

705013422

$71.00

400q

LH Caliper Slider

705013423

$71.00

400r

Washer

506151245

$0.91

400s

Screw-Socket Cap S.Grip M8 X 30

250001117

$2.00

400t

Hex. Screw M8 X 70

207087044

$1.73

400u

RH Sliding Block for Caliper Slider

705013976

$1.00

400v

Torx Cutting Screw, M4 X 10

250000453

$4.00

400w

Slider Clamp

705011404

$41.00

400x

Hose Master Cylinder

705601562

$99.00

400y

Deep Black, RH Footrest

705016550

$100.00

400z

RH Footrest Support

705016234

$52.00

400ab

Deep Black, LH Footrest

705016549

$100.00

400ac

LH Footrest Support

705016230

$52.00

400ad

Bleeder Screw

705600502

$11.06

400af

Bleeder Bolt Cap

705601190

$4.28

400ag

Open Clamp

515175507

$1.47

400ah

Pop Rivet 3/16"

390406500

$0.70

400aj

Deep Black, Pedal Brake

705601741

$99.00

400ak

Brake Pedal Spring

705601583

$2.00

400am

Pad Footrest Ass'y

705013975

$4.00

400an

Pressure Nut

250100163

$1.72

400ap

Socket Push Rod

705601585

$15.00

400aq

Jam Nut M8

705601586

$7.00

400ar

Spring

705006533

$18.00

400as

Brake Switch Spring

705601584

$3.00

400at

Rocker Ass'y

705601600

$36.00

400au

Hex. Screw M5 X 70

205457044

$4.00

400av

Black, Dart 10 mm

293730060

$4.42

400aw

Plain Bearing DIA. 18 MM, Plastic

709402254

$2.00

400ax

Plain Bearing DIA. 24 MM, Plastic

709402253

$6.00

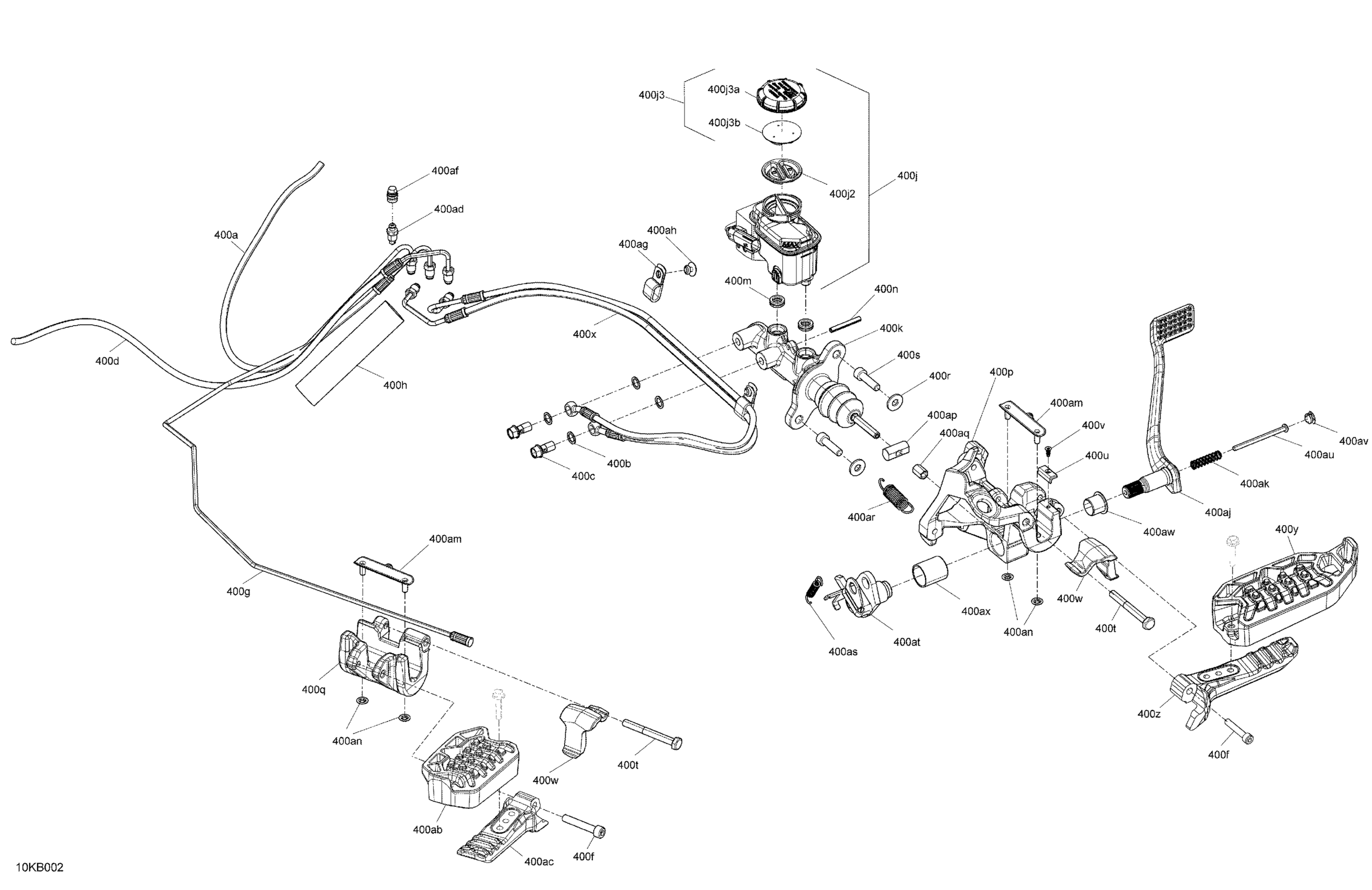

Can-Am RYKER Rally Edition 900 ACE - 2022 Mechanic - Brakes Diagram
