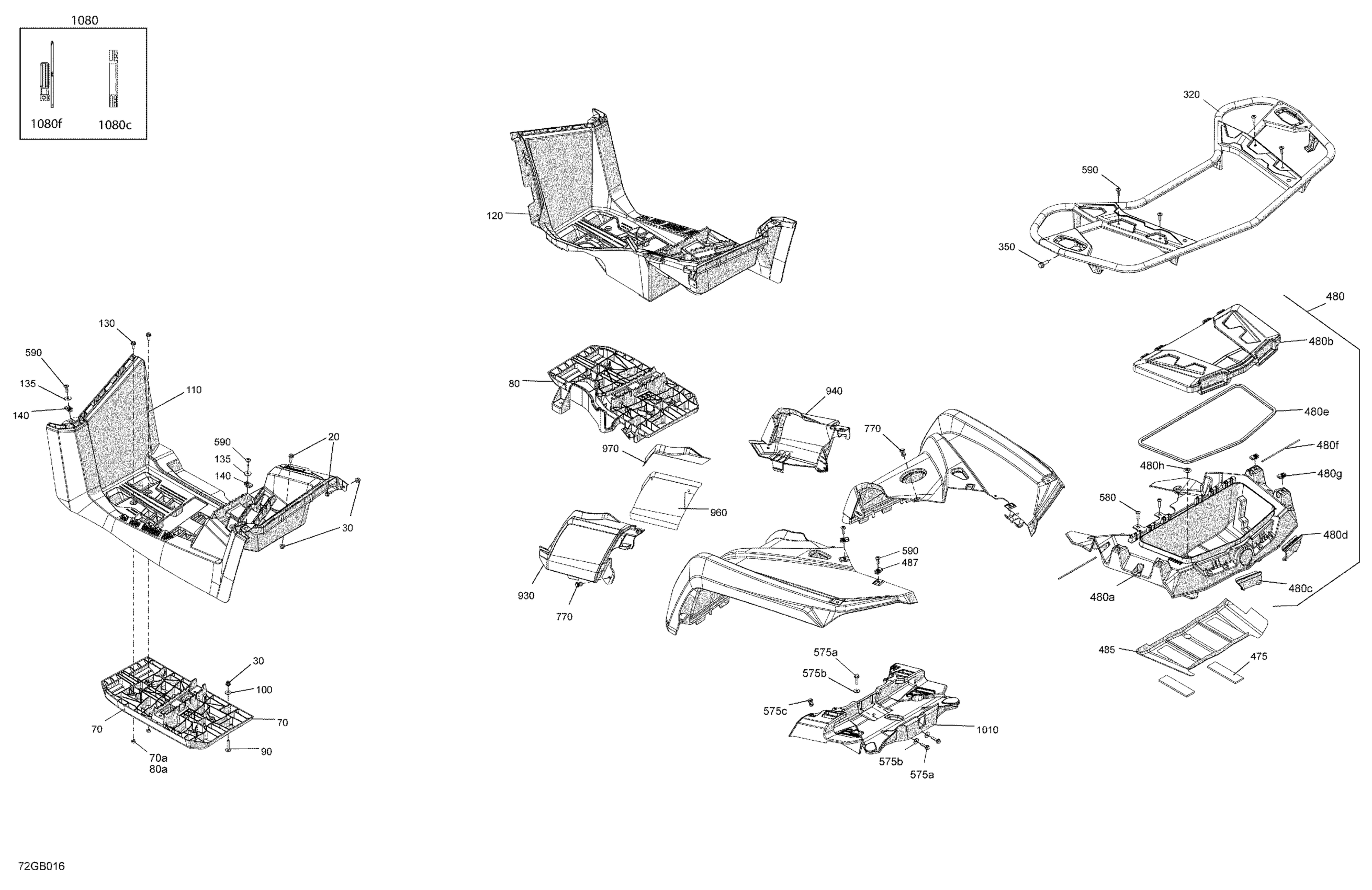

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2022 Body - Rear Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.83

30

Flange Elastic Nut M6

233261434

$3.61

70

LH Structural Footboard

705011540

$115.35

70a

Square Nut M6

232862412

$1.18

80

RH Structural Footboard

705011542

$98.43

80a

Square Nut M6

232862412

$1.18

90

Carriage Bolt M6 X 35

207763554

$1.70

100

Flat Washer 6 mm

234062410

$0.64

110

LH Footrest Max

705003525

$124.58

120

RH Footrest Max | Engine 450 MAX Model

705007724

$96.89

130

Hex. Flange Screw M6 X 20

207662054

$0.83

135

Flat Washer

224061201

$1.11

140

Panel Nut M6 X 1.0

250100198

$1.73

320

Black - Front Luggage Rack

705013392

$267.66

350

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

475

Rubber Pad

293830163

$8.05

480

Storage Cover | Model-Europe International

715004412

$207.66

480a

Storage Cover | Model-Europe International

715004412

$207.66

480b

Storage Cover | Model-Europe International

715004412

$207.66

480c

LH Box Rear Latch

705007448

$10.98

480d

RH Box Rear Latch

705007921

$10.77

480e

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$36.89

480f

Retaining Rod

705007531

$73.82

480g

Panel Nut M6 X 1.0

250100198

$1.73

480h

CAP - Call your local BRP dealership

414859400

$2.78

485

Heat Deflector Sheet

705007487

$4.62

487

Panel Nut M6 X 1.0

250100198

$1.73

575a

Hex Flange Screw M6 X 25

250000841

$6.15

575b

Stainless Steel Flat Washer

234062670

$1.74

575c

Tuflok Plastic Rivet

293150230

$1.21

580

Torx Truss Screw M6 X 25

250000807

$1.74

590

Torx Screw M6 X 20

250000722

$1.34

770

Tuflok Plastic Rivet

293150230

$1.21

930

LH Extension Panel

715001897

$27.66

940

RH Extension Panel

705004348

$27.66

960

Heat Shield

705006870

$5.52

970

Heat Shield

705006871

$5.52

1010

Seat Holder

705007948

$55.35

1080

Tool Kit

704700168

$44.99

1080c

Socket Wrench 14/16MM

529000085

$6.99

1080f

Screw Driver

529000021

$3.99

1110

Adjustment Wrench

529000035

$2.19
