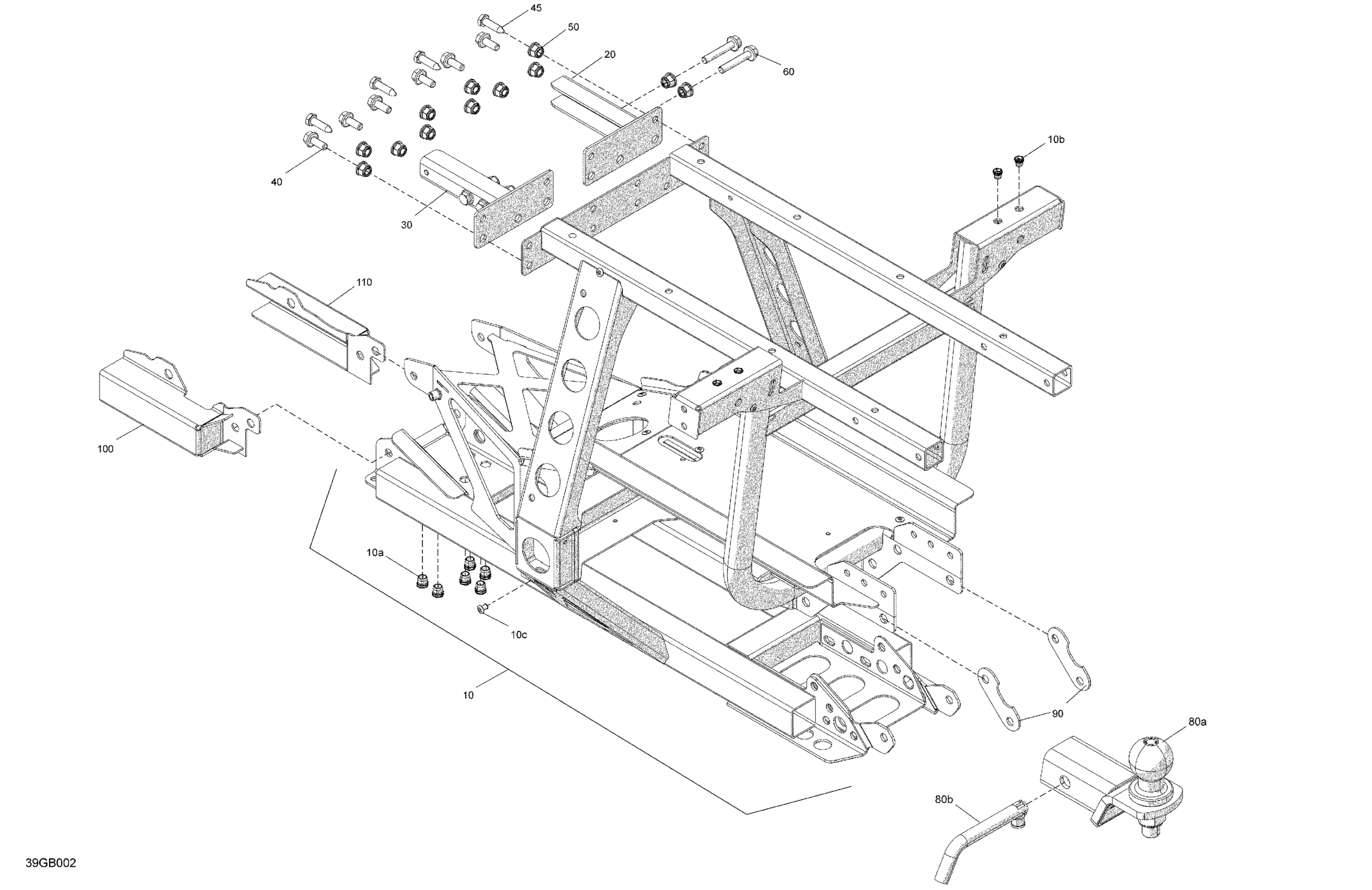

Can-Am Outlander MAX 6X6 - 450 EFI - DPS - 2022 Frame - System - Rear Section Diagram

#

Description
Price

10

Rear Frame

705206878

$1,039.99

10a

Clinching Nut Hexert M8 | Model-T3

250100065

$7.37

10b

Clinch Nut M6 Hexsert

605636003

$4.12

10c

Pop Rivet 3/16"

390402200

$0.26

20

RH Inner Support

705207086

$17.99

30

LH Inner Support

705207087

$17.99

40

Hex. Flange Screw M8 X 20

207682046

$1.82

45

Hex Screw M8 X 30

250000942

$0.92

50

Hex. Elastic Flange Nut M8

233281416

$1.25

60

Hex. Flange Screw M6 X 45

250001028

$1.07

80a

Trailer Hitch Kit | Package PRO International

705210328

$235.35

80b

Hitch Pin

705204490

$54.58

90

Support Plate

705203564

$24.49

100

LH Sheath

705207420

$18.43

110

RH Sheath

705207421

$18.43
