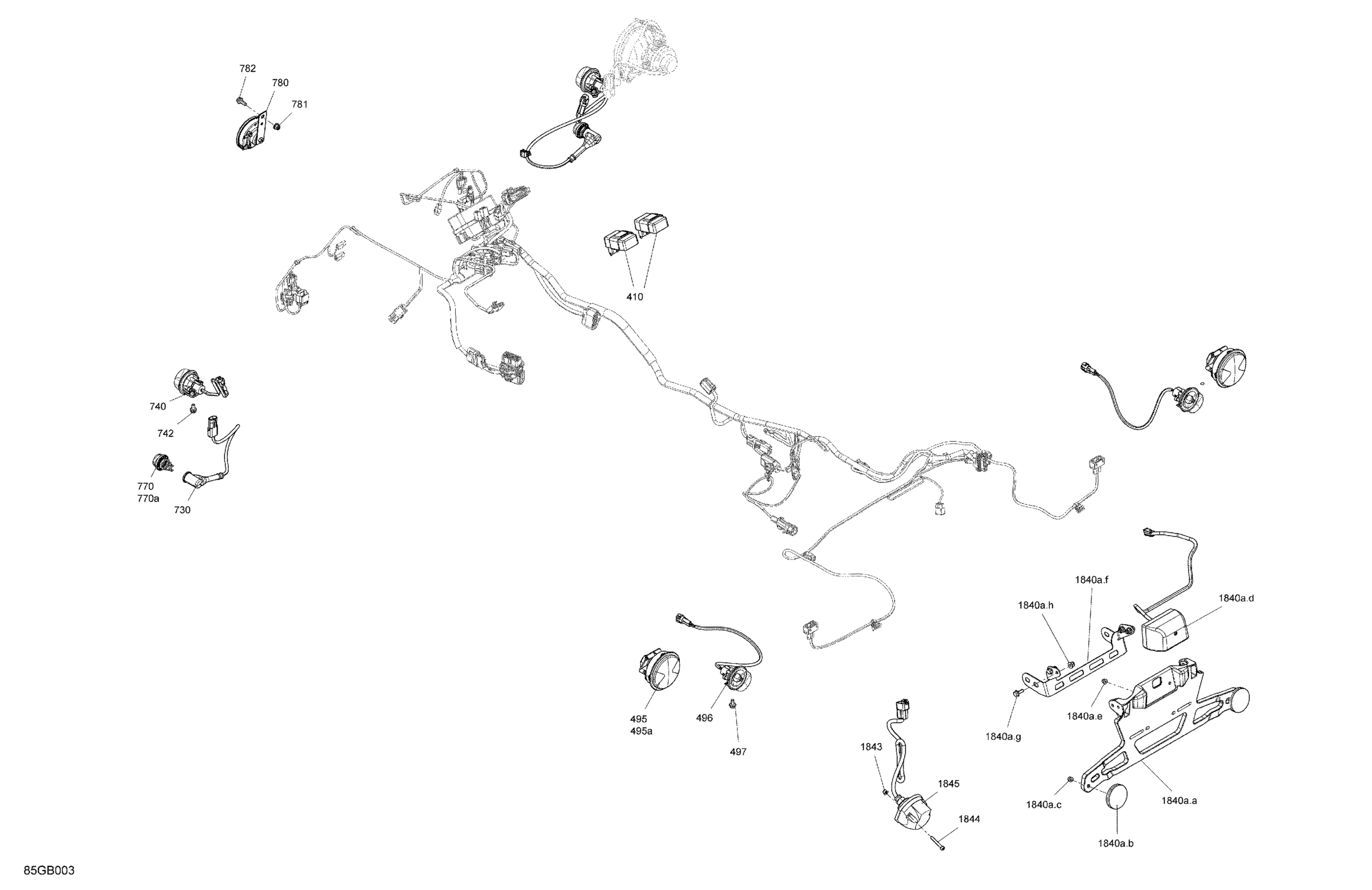

Can-Am Outlander T 570 EFI - STD - T Regulation, 2022 Electric - Flasher Lights Diagram

Description

Price

280

Clip

414227300

$1.40

281

Clip

414227300

$1.40

410

Flasher Unit

710003239

$73.10

495

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

495a

Bulb

520000758

$7.49

496

Flasher | Europe

710002964

$34.30

497

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

730

Position Light Harness

710005676

$12.61

740

Flasher | Europe

710002964

$34.30

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

770

Day Light | Europe

710001726

$32.81

770a

Cap Protector | Model-Europe

710003269

$10.12

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

782

Hex. Flange Screw M6 X 16

207661644

$0.61

1840a.a

Plate Support | Europe

708300434

$24.60

1840a.b

Red Reflector

705011221

$11.96

1840a.c

Flange Elastic Nut M5

233251434

$1.66

1840a.d

License Plate Light | Europe

710005563

$117.88

1840a.e

Flange Elastic Nut M5

233251434

$1.66

1840a.f

License Plate Support

710009520

$10.37

1840a.g

Hex. Flange Screw M6 X 16

207661644

$0.61

1840a.h

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1840b

Elastic Flange Nut M8

233281464

$0.83

1840c

Torx Truss Screw M8 X 50

250000761

$6.18

1843

Flange Elastic Nut M5

233251434

$1.66

1844

Socket Head Screw M5 X 35

205053588

$1.56

1845

Trailer Harness

710005846

$202.96
