Description

Price

10

Shaft Ass'y Kit

703500988

$313.82

10a

Rubber Boot

715900118

$13.83

10b

Universal Joint Ass'y | T3

703500846

$78.43

10ba

Grease Fitting | T3

715900295

$4.62

10c

Yoke

715900499

$23.05

10d

Yoke

715900438

$23.05

10h

Protector

705501123

$7.37

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

50

Wheel Hub

705503257

$101.51

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

90

Flat Washer M10 | 4X4

250200014

$1.17

130

Hex Flange Screw M12 X 16

250001039

$1.74

180

Conical Spring Washer M12

250200005

$2.65

190

Hex. Flange Castellated Nut M18

232291413

$2.82

195

Cotter Pin

250400071

$1.74

230

RH Half Shaft Ass'y

705501897

$233.82

230a

CV Joint

705401344

$253.82

230b

Plunging Joint

715900304

$115.35

230c

Circlip

705501781

$5.38

230d

Boot Kit, Wheel Side

705401345

$41.51

230da

Oetiker Clamp

715900282

$4.39

230db

Oetiker Clamp, Small

715900283

$4.39

230e

Boot Kit, Differential Side

705401346

$41.51

230ea

Oetiker Clamp, Large

715900284

$4.39

230eb

Oetiker Clamp, Small

715900261

$4.39

240

LH Half Shaft Ass'y

705501898

$233.82

240a

CV Joint

705401344

$253.82

240b

Plunging Joint

715900304

$115.35

240c

Circlip

705501781

$5.38

240d

Boot Kit, Wheel Side

705401345

$41.51

240da

Oetiker Clamp

715900282

$4.39

240db

Oetiker Clamp, Small

715900283

$4.39

240e

Boot Kit, Differential Side

705401346

$41.51

240ea

Oetiker Clamp, Large

715900284

$4.39

240eb

Oetiker Clamp, Small

715900261

$4.39

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Conical Spring Washer M18

250200171

$5.28

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

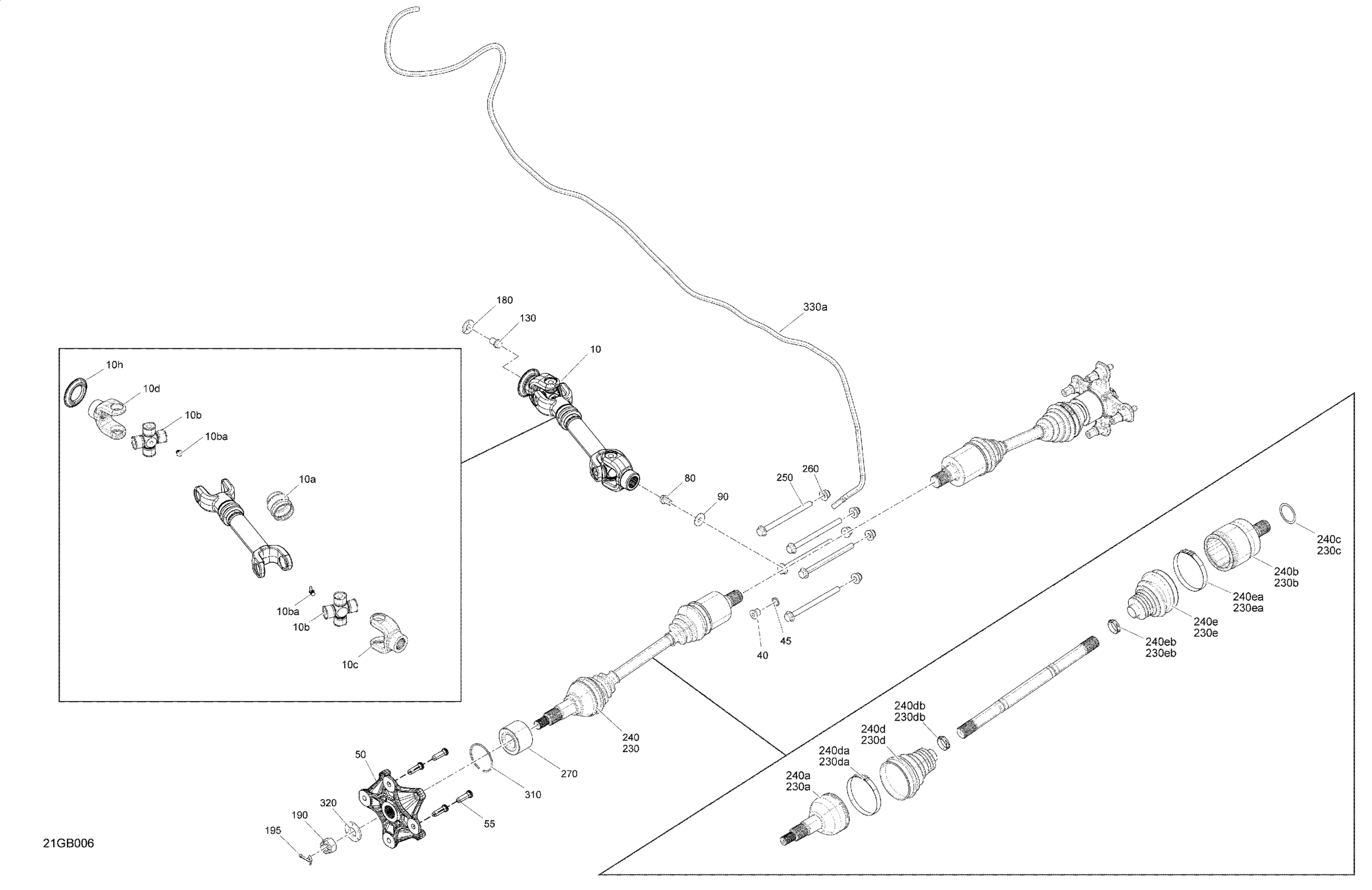

Can-Am Outlander T 570 EFI - STD - T Regulation, 2022 Drive - Rear - Common Parts Diagram
