Description

Price

1

Torx Flange Screw M6 X 45

420440324

$0.93

2

Gear Box Cover

420686891

$52.96

3

Gasket | Included in gasket kit

420651275

$18.63

4

Ball Bearing

420932822

$28.33

5

Intermediate Gear, 49 Teeth

420435966

$71.61

6

Intermediate Gear, 47 Teeth

420435962

$71.61

7

Washer

420245861

$2.45

8

Hex. Nut, M22 X 1.5

420842239

$16.39

9

3 Position Switch

420640192

$36.54

10

Camshft Position Sensor Ass'y

420265727

$104.45

11

Torx Flange Screw M6 X 16

420440162

$3.01

12

Oil Seal

420250455

$14.63

13

Oil Seal | Included in gasket kit

420931940

$29.07

14

Ball Bearing

420932822

$28.33

15

Oil Seal

420831178

$32.81

16

Ball Bearing

420932580

$8.82

17

Oil Seal 32X60X7 | Included in gasket kit

420830753

$35.79

18

Torx Screw M6X13

420240051

$0.90

19

Main Shaft Ass'y | Includes Ill. no. 19-31

420820327

$294.99

20

Shifting Sleeve

420257254

$44.00

21

Thrust Washer

420227864

$7.61

22

O-Ring

420931391

$9.91

23

Needle Bearing

420632359

$6.79

24

Pinion Gear 49 Teeth

420934190

$99.22

25

Thrust Washer

420626875

$2.96

26

Retaining Ring

420945620

$3.87

27

Shifting Sleeve

420257244

$44.00

28

Thrust Washer

420427012

$2.90

29

Needle Bearing

420632075

$6.79

30

Thrust Washer

420627301

$6.72

31

O-Ring

420230371

$8.60

32

Countershaft

420820330

$249.22

33

Chain

420898532

$91.01

34

O-Ring | Included in gasket kit

420631616

$2.97

35

Distance Ring

420247591

$18.63

36

Dowel Pin 12X140

420229242

$6.51

37

Shift Fork

420657695

$39.52

38

Shifting Block Ass'y

420657707

$34.30

39

Thrust Washer

420827590

$3.75

40

Spring

420638151

$4.12

41

Gearshift Fork Ass'y

420657685

$39.52

42

Snap Ring

420245330

$1.64

43

Aluminum Sealing Ring

420250016

$5.06

44

Bearing Screw M12X1.5

420240921

$10.22

45

Parking Lock Lever

420657760

$72.36

46

Collar Sleeve

420647132

$35.79

47

Helical Spring

420638185

$7.24

48

Shift Shaft Ass'y

420820346

$88.78

49

Shifting Drum Ass'y

420657666

$274.60

50

Isolating Washer

420637955

$5.10

51

Gasket Ring

420430624

$1.73

52

Index Screw Ass'y M16X1.5

420441395

$14.22

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

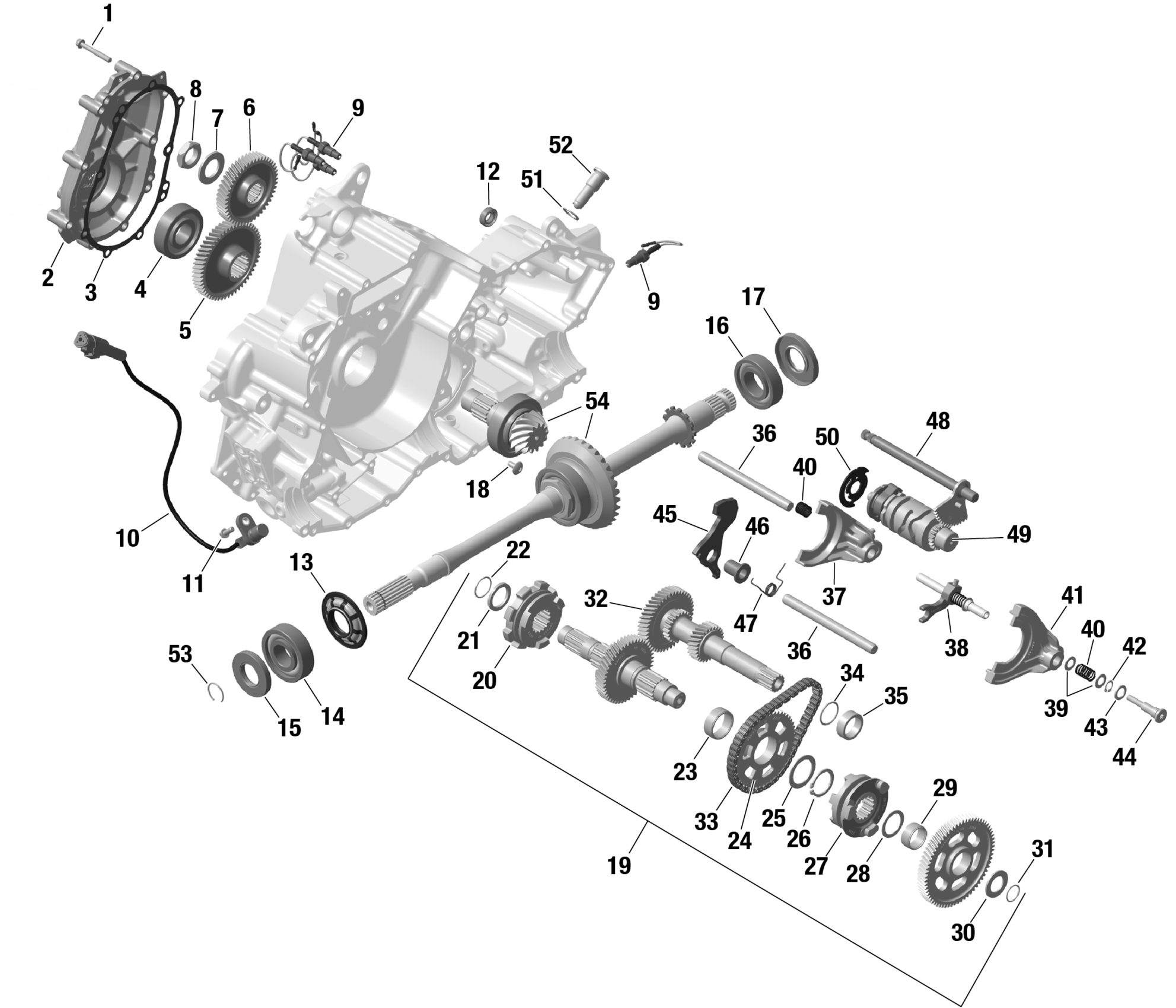

Can-Am Outlander MAX XT 700 - CE, 2023 ROTAX - GearBox Diagram
