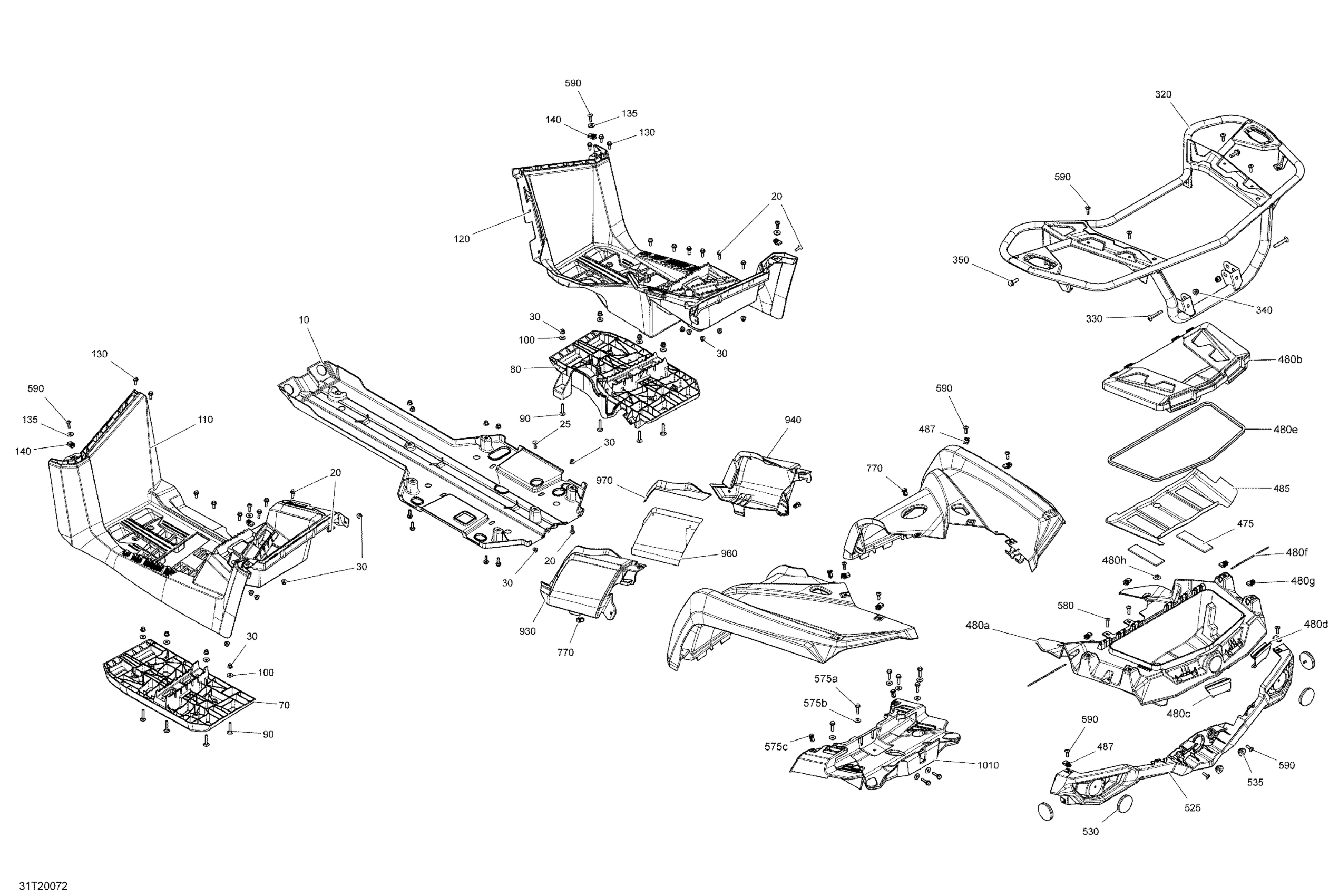

Can-Am Outlander MAX 570 EFI - 2020 Body - Rear Section - STD - DPS Diagram

Protective Plate Kit

715002374

$59.67

Hex. Flange Screw M6 X 20

207662054

$0.96

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

Flange Elastic Nut M6

233261434

$4.15

LH Structural Footboard

705011540

$108.18

RH Structural Footboard

705011542

$95.49

Carriage Bolt M6 X 35

207763554

$1.96

Flat Washer 6 mm

234062410

$0.73

LH Footrest Max

705003525

$117.88

RH Footrest Max

705003521

$117.88

Hex. Flange Screw M6 X 16

207661654

$2.00

Flat Washer

224061201

$1.27

Panel Nut M6 X 1.0

250100198

$1.99

Black, Rear Luggage Rack

715005986

$214.15

Torx Truss Screw M8 X 50

250000761

$7.09

Elastic Flange Nut M8

233281464

$0.96

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.22

Rubber Pad

293830163

$7.81

Storage Cover | Model-Europe International

715004412

$196.99

Storage Cover | Model-Europe International

715004412

$196.99

LH Box Rear Latch

705007448

$9.91

RH Box Rear Latch

705007921

$9.85

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$34.30

Retaining Rod

705007531

$70.87

Panel Nut M6 X 1.0

250100198

$1.99

CAP - Call your local BRP dealership

414859400

Unavailable

Heat Deflector Sheet

705007487

$3.81

Panel Nut M6 X 1.0

250100198

$1.99

Rear Facia | Except Model- Europe

705005576

$41.01

Red Reflector

705011221

$11.96

Stopper Rubber

705014429

$6.09

Hex Flange Screw M6 X 25

250000841

$7.06

Stainless Steel Flat Washer

234062670

$2.00

Tuflok Plastic Rivet

293150230

$1.39

Torx Truss Screw M6 X 25

250000807

$2.00

Torx Screw M6 X 20

250000722

$1.54

Tuflok Plastic Rivet

293150230

$1.39

LH Extension Panel

715001897

$24.60

RH Extension Panel

705004348

$23.85

Heat Shield

705006870

$4.76

Heat Shield

705006871

$4.76

Seat Holder

705007948

$52.21
