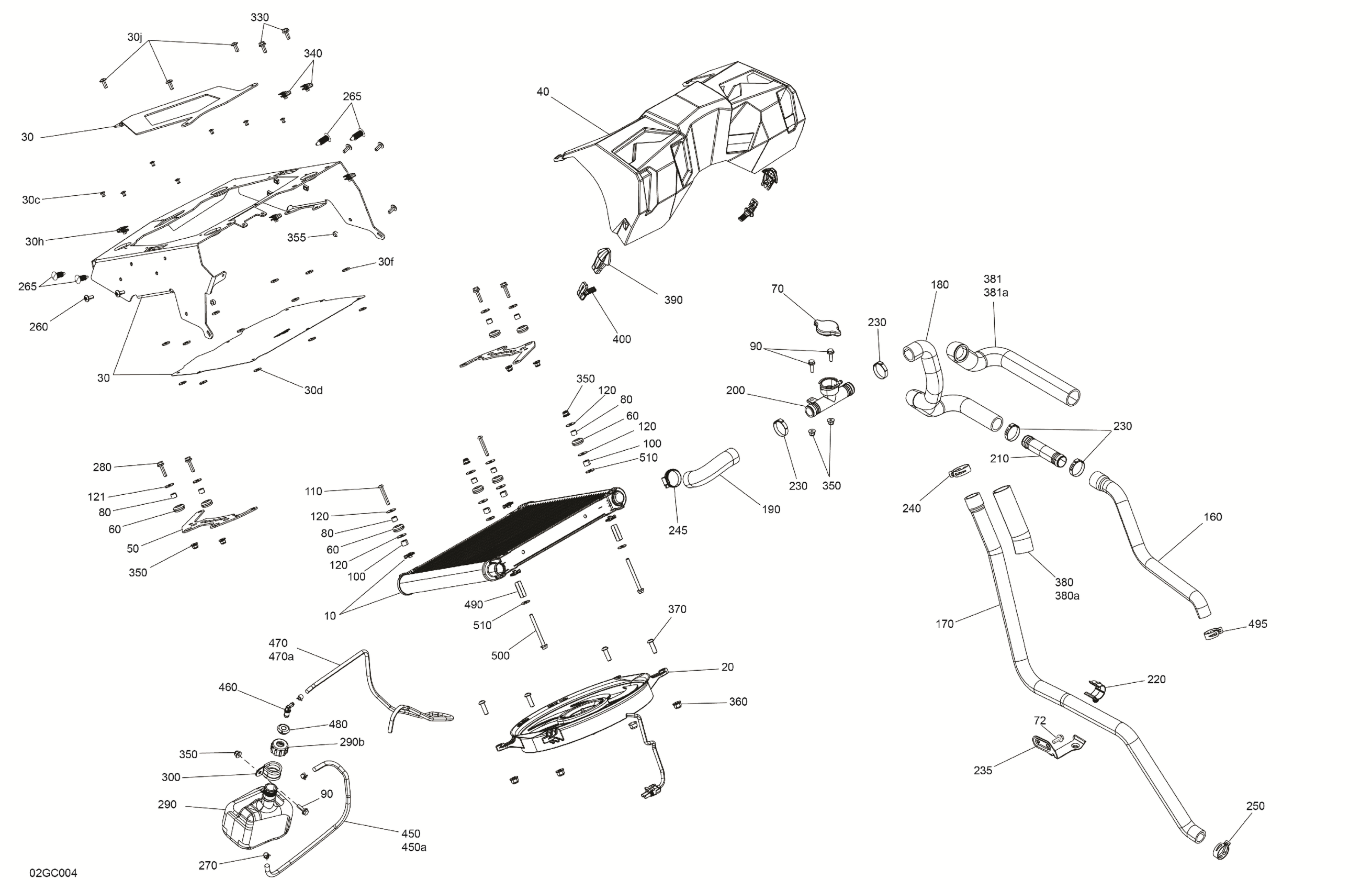

Can-Am Outlander 570 EFI - MR - 2023 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200286

$444.00

20

Fan Ass'y

709200567

$253.70

30

Deep Black, Radiator Support Kit | Includes 30 to 30j

709201336

$335.79

30c

Rivet 3/16"

293150102

$0.69

30d

Washer

517124300

$0.16

30f

Rubber Washer 5 mm

250200024

$1.77

30h

Panel Nut M6 X 1.0

250100198

$1.73

30j

Torx Head Screw M6 X 16

250000717

$1.74

40

Protection Cover Kit

703100399

$82.06

50

Aupport_Fan Ecoat

709201349

$25.34

60

Grommet

293720062

$4.16

70

Radiator Pressure Cap

709200207

$18.82

72

Hex. Flange Screw M6 X 16

210261640

$1.74

80

Spacer

707000058

$11.81

90

Hex. Flange Screw M6 X 20

207662034

$1.74

100

Bushing

708001129

$9.91

110

Torx Screw M6 X 30

235563054

$3.61

120

Flat Washer

250200040

$1.76

121

Flat Washer M6, Stainless

234062600

$0.64

160

Hose | Engine 570

709200896

$32.81

170

Hose

709200790

$46.24

180

Hose, Polyurethane | Engine 570

709200559

$43.25

190

Hose

709200891

$13.39

200

Filler Neck

709200422

$17.13

210

Nipple Tube 1"

709200448

$19.37

220

Retainer

275500526

$3.73

230

Gear Clamp

509000162

$5.84

235

Hose Support

709200641

$8.24

240

Norma Spring Clamp

293650166

$4.15

245

Norma Gear Clamp

293650098

$4.15

250

Norma Spring Clamp

293650166

$4.15

260

Torx Head Screw M6 X 16

250000717

$1.74

265

Dart

293730062

$1.63

270

Spring Clamp

414554800

$0.81

280

Hex. Flange Screw M6 X 25

207662544

$0.53

290

Coolant Tank Ass'y | Includes 290 to 290b

703501190

$91.76

290b

Cap

709200586

$10.12

300

Hose Anchor

709200036

$10.51

330

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

340

Panel Nut M6 X 1.0

250100198

$1.73

350

Flange Elastic Nut M6

233261434

$3.61

355

Elastic Stop Nut M6

232561434

$1.55

360

Hex. Flange Elastic Nut M8

233281414

$1.14

370

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

380

Tubing 35 MM 1000MM Long

219704428

$8.57

380a

Tubing 35 mm

515176260

Unavailable

381

Tubing 35 MM 1000MM Long

219704428

$8.57

381a

Tubing 35 mm

515176260

Unavailable

390

End Piece Latch

517304075

$4.30

400

Panel Latch

517303981

$9.49

450

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

450a

Hose 6 Mm 15000Mm Long

219704360

$104.62

460

Male Connector

414580700

$3.38

470

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

470a

Polyurethane Hose

293830193

Unavailable

480

Grommet

705003264

$3.43

490

Bushing

705202499

$6.16

495

Norma Spring Clamp

293650109

$3.88

500

Hex. Flange Screw M6 X 70

207667044

$0.70

510

Flat Washer M6, Stainless

234062600

$0.64
