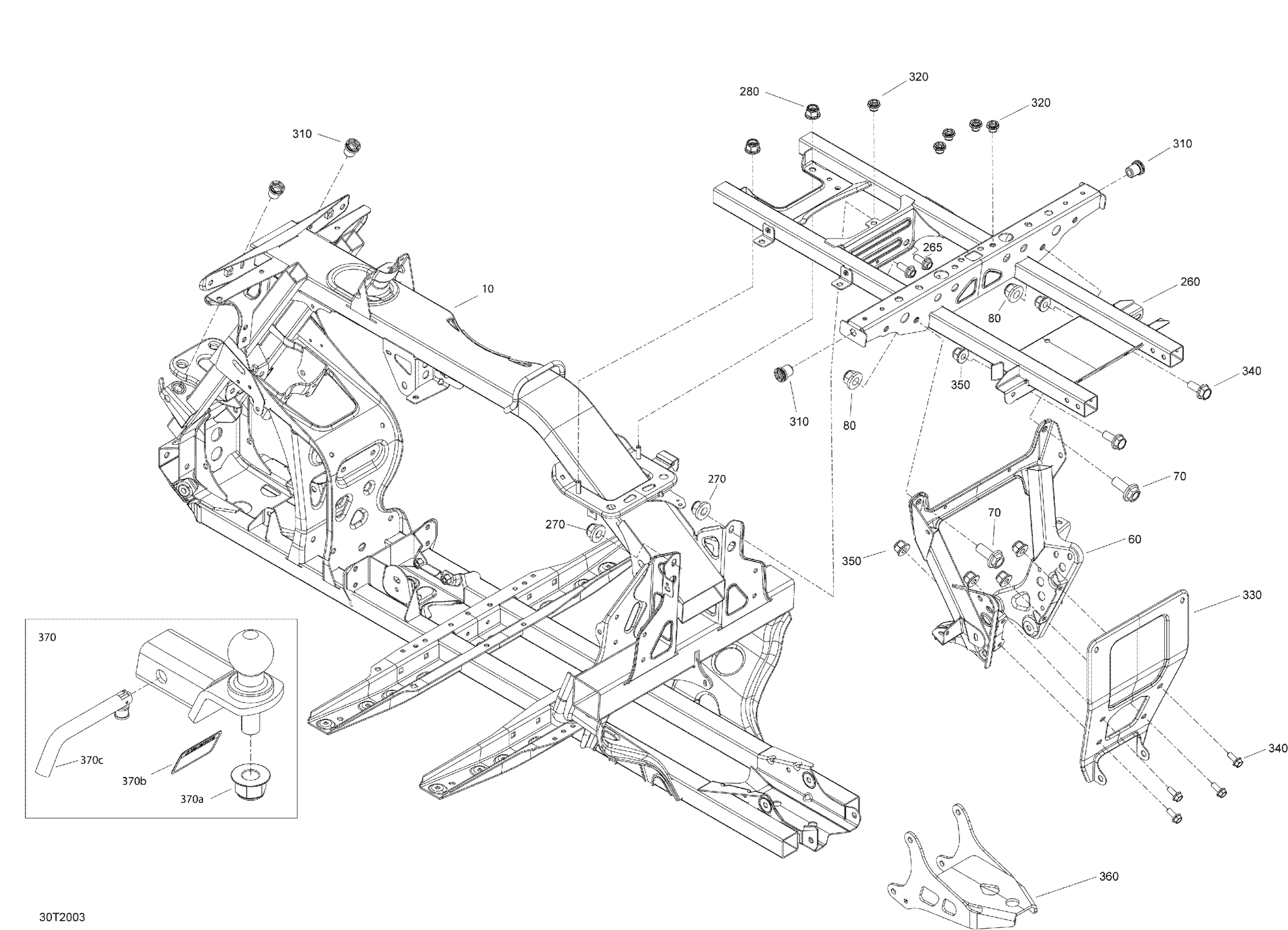

Can-Am Outlander 570 EFI - PRO - International - Non-European Communities, 2020 Frame Diagram

Description

Price

Chassis

705210815

$1,049.99

Rear Pillar

705210818

$69.99

Hex. Flange Screw M10 X 25

207602546

$1.74

Hex. Flange Elastic Nut M10

233201436

$1.74

260

Black, Frame Extension

705203362

$159.99

265

Hex. Flange Screw M10 X 25

207602546

$1.74

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Hex. Flange Elastic Nut M8

233281414

$1.14

310

Insert Half Hex Body M8 x 1.25

293450307

$2.03

320

Insert Half Hex Body M6 x 1.0

250100199

$2.54

330

Rear Support

705203541

$41.51

340

Hex. Flange Screw M8 X 20

207682046

$1.82

350

Hex. Elastic Flange Nut M8

233281416

$1.25

360

Black, Trailer Hitch

705206592

$50.74

370

Trailer Hitch Kit | Package PRO International

705210328

$235.35

370a

Elastic Flange Nut M20

250100104

$9.71

370b

Towing Capacity Label | Package PRO International

704908748

Unavailable

370c

Hitch Pin

705204490

$54.58
