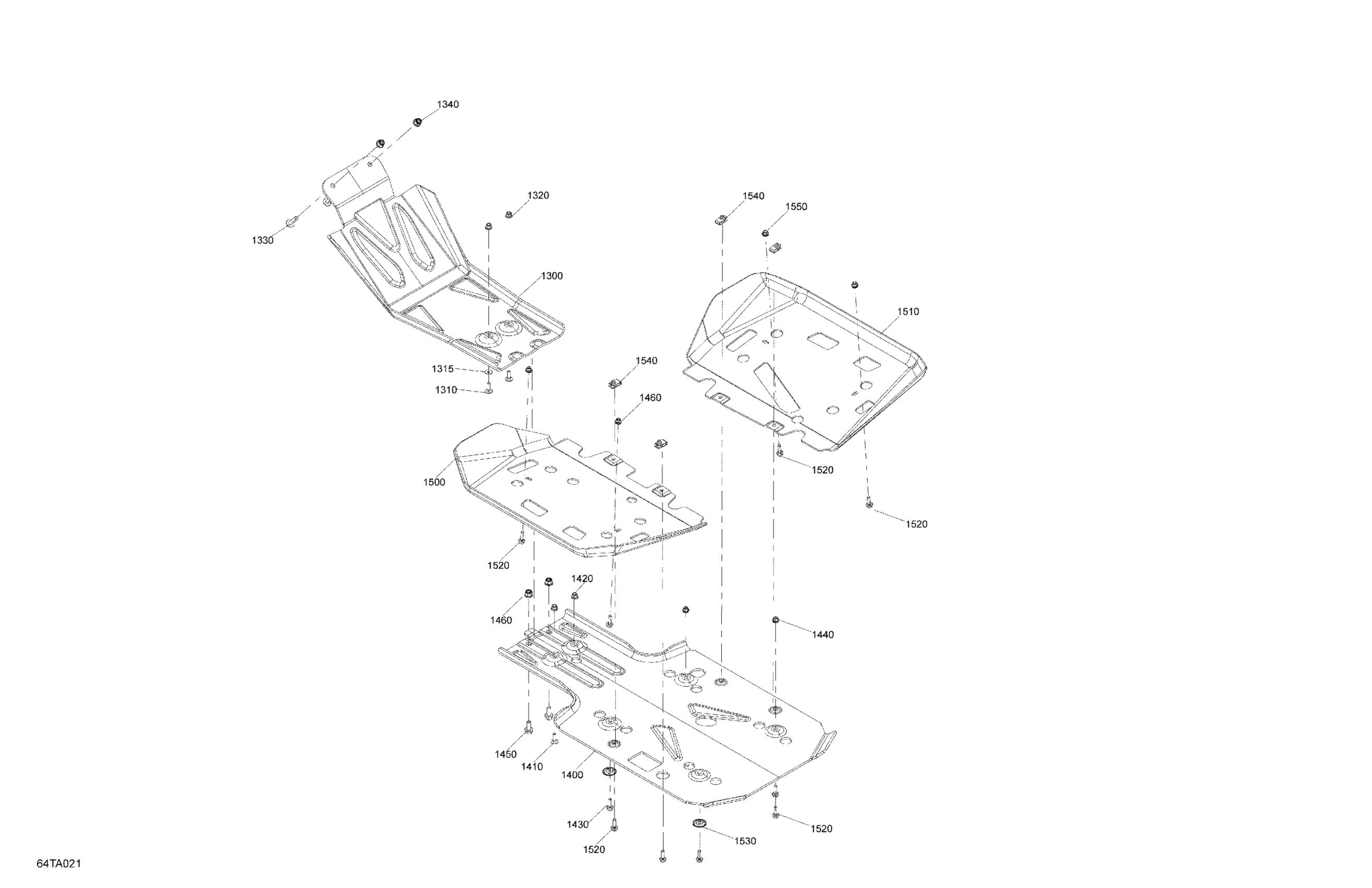

Can-Am Outlander 1000R EFI - XT_XTP_XXC - 2021 Body - Skid Plate - XXC Diagram

Description

Price

1300

Front Skid Plate | Package Hunter

715000926

$104.99

1300b

Decal "Can-Am" | Not Shown

704904566

$9.25

1300c

Front Skid Plate | Package Hunter

715000926

$104.99

1300d

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

1300e

Flange Elastic Nut M6

233261434

$3.61

1300f

Hex Torx Truss M8 X30

250000745

$3.05

1300g

Hex. Flange Elastic Nut M8

233281434

$1.74

1310

Torx Screw M6 X 20

250000712

$1.74

1315

Stainless Steel Flat Washer

234062670

$1.74

1320

Flange Elastic Nut M6

233261434

$3.61

1330

Hex Torx Truss M8 X30

250000745

$3.05

1340

Hex. Flange Elastic Nut M8

233281434

$1.74

1400

Central Skid Plate | Package-XXC

705204031

$166.12

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

1420

Flange Elastic Nut M6

233261434

$3.61

1430

Hex. Flange Screw M6 X 20

207662054

$0.83

1440

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1450

Hex. Flange Screw M8 X 25

207682534

$0.90

1460

Hex. Flange Elastic Nut M8

233281434

$1.74

1500

LH Skid Plate | Package Hunter

705010659

$115.35

1510

RH Skid Plate | Package Hunter

705010660

$115.35

1520

Hex. Flange Screw M6 X 20

207662054

$0.83

1530

Cup | Package Hunter

705007171

$6.18

1540

Panel Nut M6 X 1.0

250100198

$1.73

1550

Insert Half Hex Body M6 x 1.0

250100199

$2.54
