Description

Price

10

Ground Cable

710004382

$18.43

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

Lock Washer Helical M6

234161601

$0.92

15

Torx Head Screw M6 X 16

250000717

$1.74

16

Flat Washer

224061121

$0.44

17

Domed Nut M6

232361493

$1.77

20

Positive Cable

710004377

$27.66

21

Elastic Stop Nut M6

232561434

$1.55

40

Cable

710007437

$32.28

41

Battery Cable Cap

710006729

$7.37

100

Gauge Wiring Harness

710007503

$23.05

205

Clip

270000141

$8.33

206

Pop Rivet 3/16"

390402300

$0.64

207

Washer | DS 650 X

391301600

$0.48

240

Connector Bracket

710004118

$5.52

241

Hex. Flange Screw M6 X 20

210262040

$2.06

242

External Serrated Lock Washer 6 mm

234461608

$0.92

270

Protective Tubing

710003260

$32.28

280

Clip

414227300

$1.45

281

Clip

414227300

$1.45

282

Clip

414227300

$1.45

283

Clip

414227300

$1.45

292

Clip

414227300

$1.45

293

Clip

414227300

$1.45

295

Clip

414227300

$1.45

296

Clip

414227300

$1.45

366

Soft Protection Sleeve

710007255

$2.98

370

Mount Dart

293730040

$0.86

400

Starter Relay

710007777

$46.89

401

Lock Washer Helical M6

234161601

$0.92

402

Elastic Stop Nut M6

232561434

$1.55

404

Hex. Flange Screw M6 X 20

207662054

$0.83

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

500

Switch Handle

710006134

$69.20

501

Socket Head Screw M5 X 35

205053588

$1.56

530

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

600

Multifunction Gauge MID | Model XTP

710007409

$341.51

610

Switch Mode | XTP

710006717

$23.05

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$55.35

661

Handle

572106600

$9.31

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.91

700

Low Beam | Includes 54 to 55

710006177

$115.35

700a

Bulb 12V 55W

715900141

$41.51

701

RH High Front Housing

710002291

$27.66

704

LH High Front Housing

710002292

$23.05

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710a

Halogen Bulb

415129249

$39.97

720

Tail Light Ass'y | Includes 32 to 33

710001645

$81.51

720a

Bulb

520000758

$7.49

800

Voltage Regulator

710005842

$159.87

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

810

Rectifier Support

710001752

$7.11

811

Hex. Flange Screw M6 X 20

207662044

$1.66

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

850

Housing

710003006

$7.24

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

900a

Battery Bolt Kit

250000282

$2.95

903

Heat Shield

710006532

$17.66

904

Heat Shield

710006533

$32.28

905

Battery Support

710008370

$46.12

906

Hexagonal Head Screw

210262050

$1.74

907

Rubber Bumper

293830005

$5.33

908

Stainless Steel Flat Washer

234062670

$1.74

910

Push Nut

732610072

$1.72

920

Retaining Plate

710009129

$7.60

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.83

950

DC Outlet

710001248

$31.17

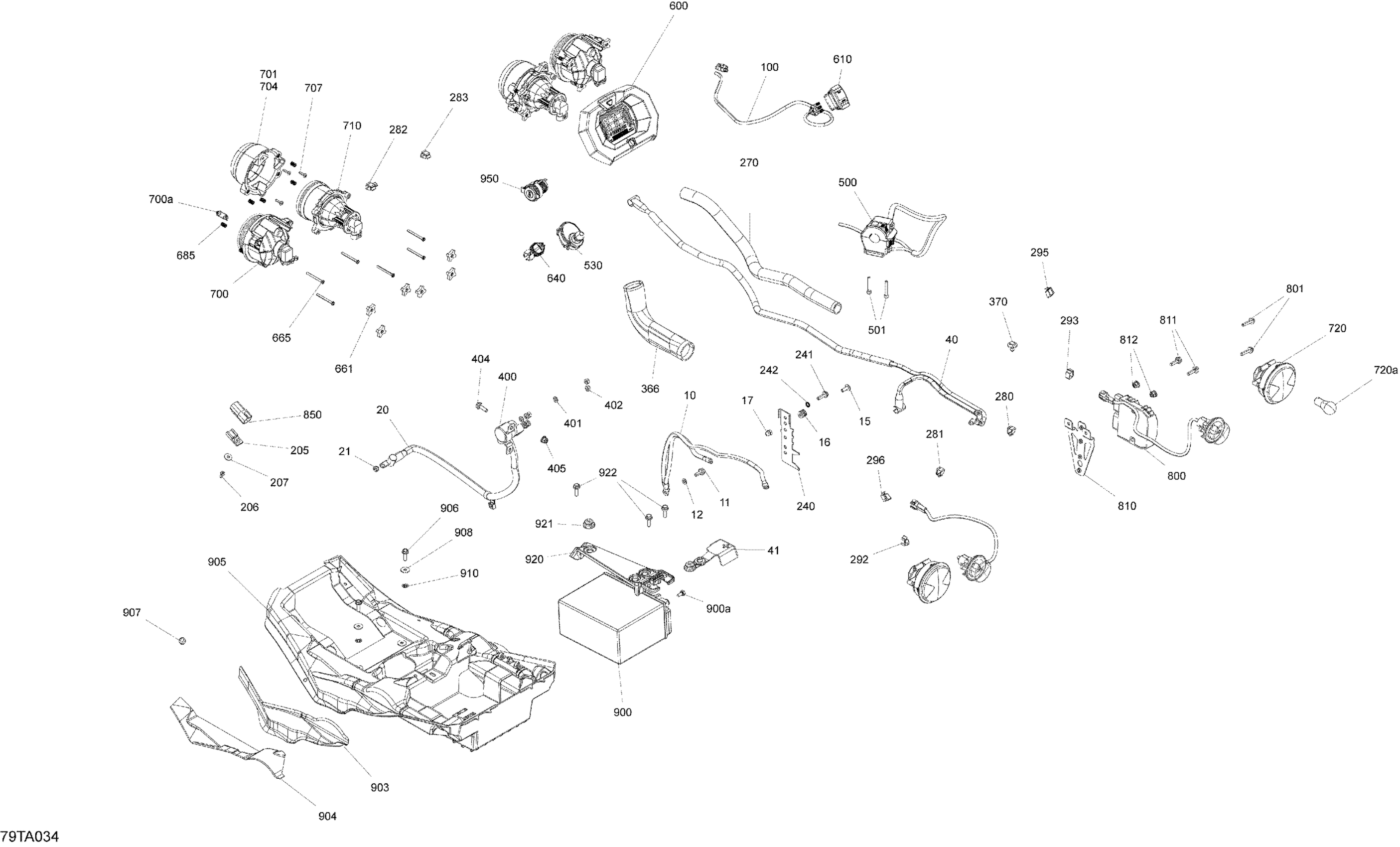

Can-Am Outlander 1000R EFI - XMR - CE, 2021 Electric - System Diagram
