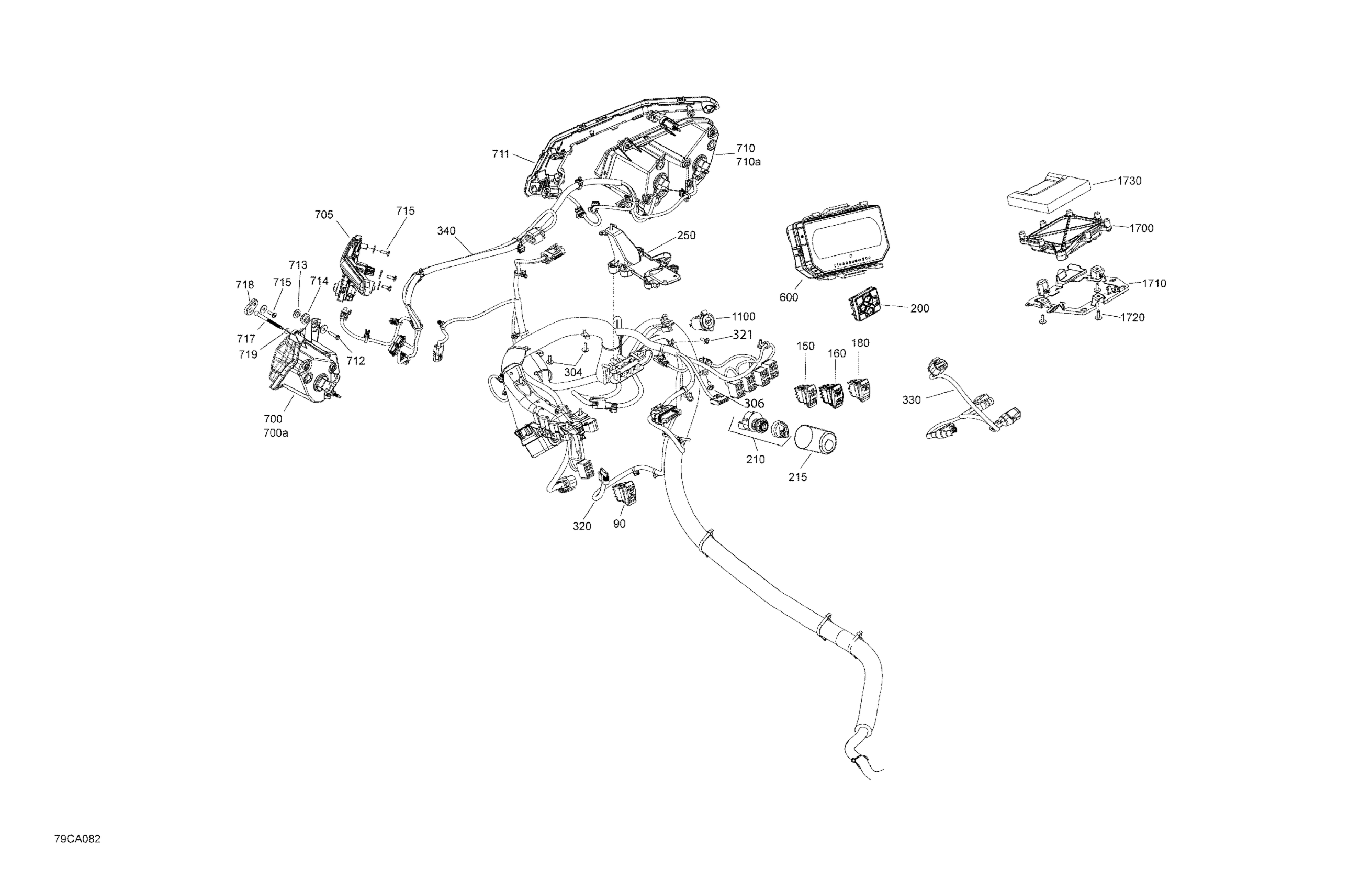

Can-Am Maverick Sport 1000R - XXC - 2021 Electric - Front System Diagram

Description

Price

Light Switch

710004492

$46.12

150

Differential Switch

710006040

$32.28

160

Differential Mode Switch

710006557

$32.28

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

200

Multifonction Switch

710006650

$87.66

210

Inter Allumage *Ignition

710007870

$55.35

215

Key Switch Protector

710005739

$2.69

250

Housing Support

710005672

$8.05

304

Screw PT Type K-50 X 16

250000959

$1.74

306

Screw PT Type K-50 X 16

250000959

$1.74

320

Trottle Pedal Harness

710005929

$226.12

321

Screw PT Type K-50 X 16

250000959

$1.74

330

Front Differential Wiring Harness

710006807

$46.12

340

Front Wiring Harness

710007441

$101.51

600

Multifunction Gauge MID | Model XTP

710007409

$341.51

700

LH Headlamp | Includes 700 to 700a

710008230

$189.20

700a

Bulb 12V 55W

715900141

$41.51

705

LH Signature Beam

710004994

$161.51

710

RH Headlamp | Includes 710 to 710a

710008231

$189.20

710a

Bulb 12V 55W

715900141

$41.51

711

RH Signature Beam

710004995

$161.51

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

713

Shoulder Bushing

710004749

$2.75

714

Grommet

709000582

$4.38

715

Screw PT Type K-50 X 16

250000959

$1.74

717

Ajustment Screw

710005837

$6.45

718

Adjustment Guide

710005097

$8.45

719

O-Ring

293300192

$3.85

1100

12V Power Outlet

710005374

$27.27

1700

Differential Module

710008871

$447.66

1710

FDM Support

710006104

$7.60

1720

Screw PT Type K-50 X 16

250000959

$1.74

1730

Protector Foam

710006580

$15.22
