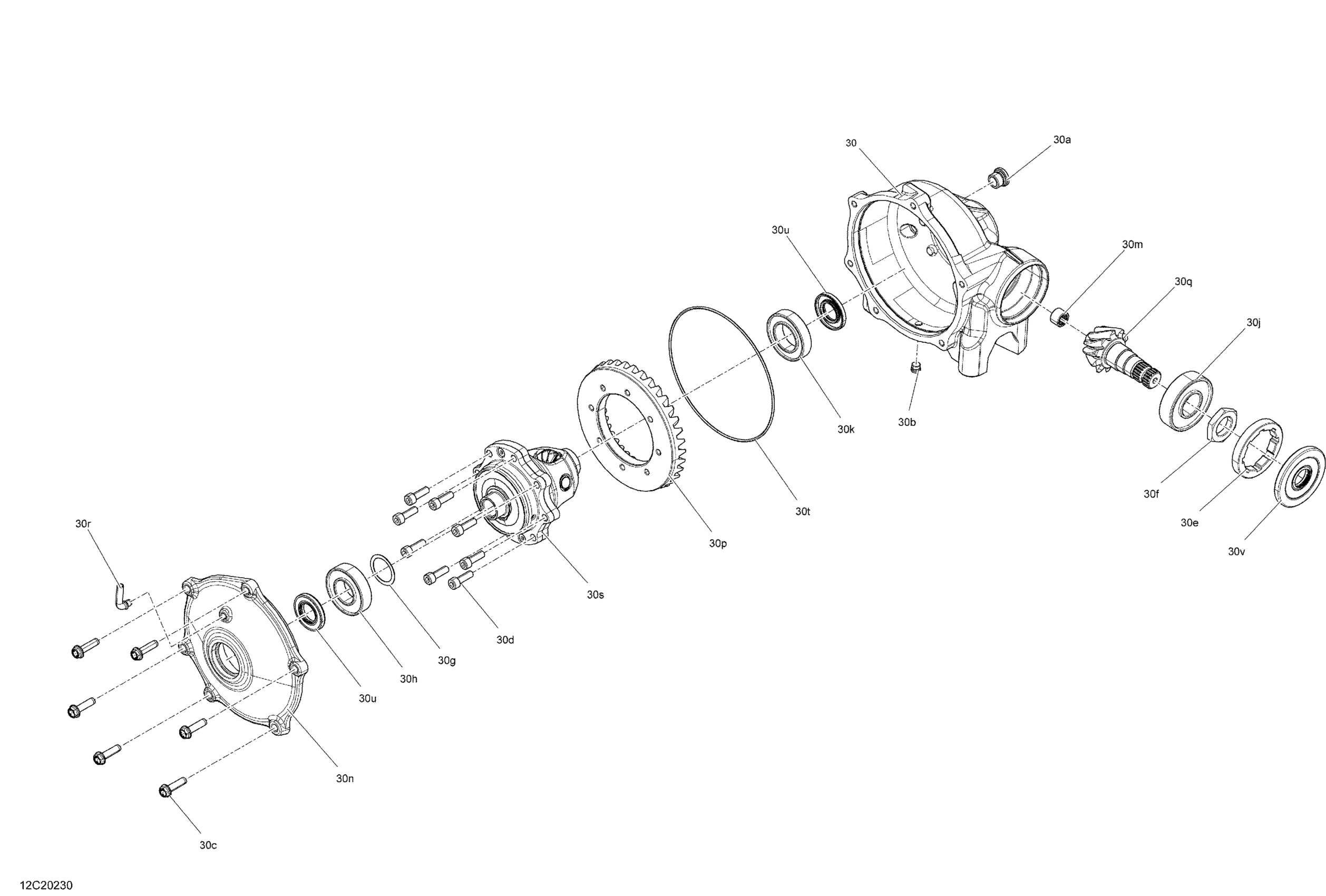

Can-Am Maverick Turbo R, Turbo RR - STD_XDS_XRS - 2020 Front Drive - Differential Parts - Diagram

Description

Price

Front Differential Ass'y | Includes 30 to 30y

705402995

$1,338.43

30a

Fill Level Plug

705501889

$18.43

30b

Drain Plug | After May 30, 2014

705501885

$12.68

30c

Bolt

705501886

$6.75

30d

Screw

705402375

$11.83

30e

Nut M75 X 1.5

705401819

$23.05

30f

Nut M27 X 1.5

705401820

$23.05

30g

Shim | 4X4

705401604

$55.35

30h

Ball Bearing

705402847

$46.12

30j

Ball Bearing | 4X4

705401606

$49.20

30k

Ball Bearing

705401821

$30.74

30m

Ball Bearing | After May 30, 2014

705402848

$46.12

30n

Front Cover

705401667

$152.28

30p

Ring Gear 36 Teeth

705402788

$359.97

30q

Pinion 10 th.

705401933

$179.97

30r

Vent Valve

705401935

$14.37

30s

Differential | Base Package

705402377

$1,174.99

30t

Oil Seal iDIA 6.737 oDIA 6.943

705501881

$8.45

30u

Oil Seal

705401836

$7.37

30v

Oil Seal, Triple Lip 25 X 79 X 8

705401827

$16.89
