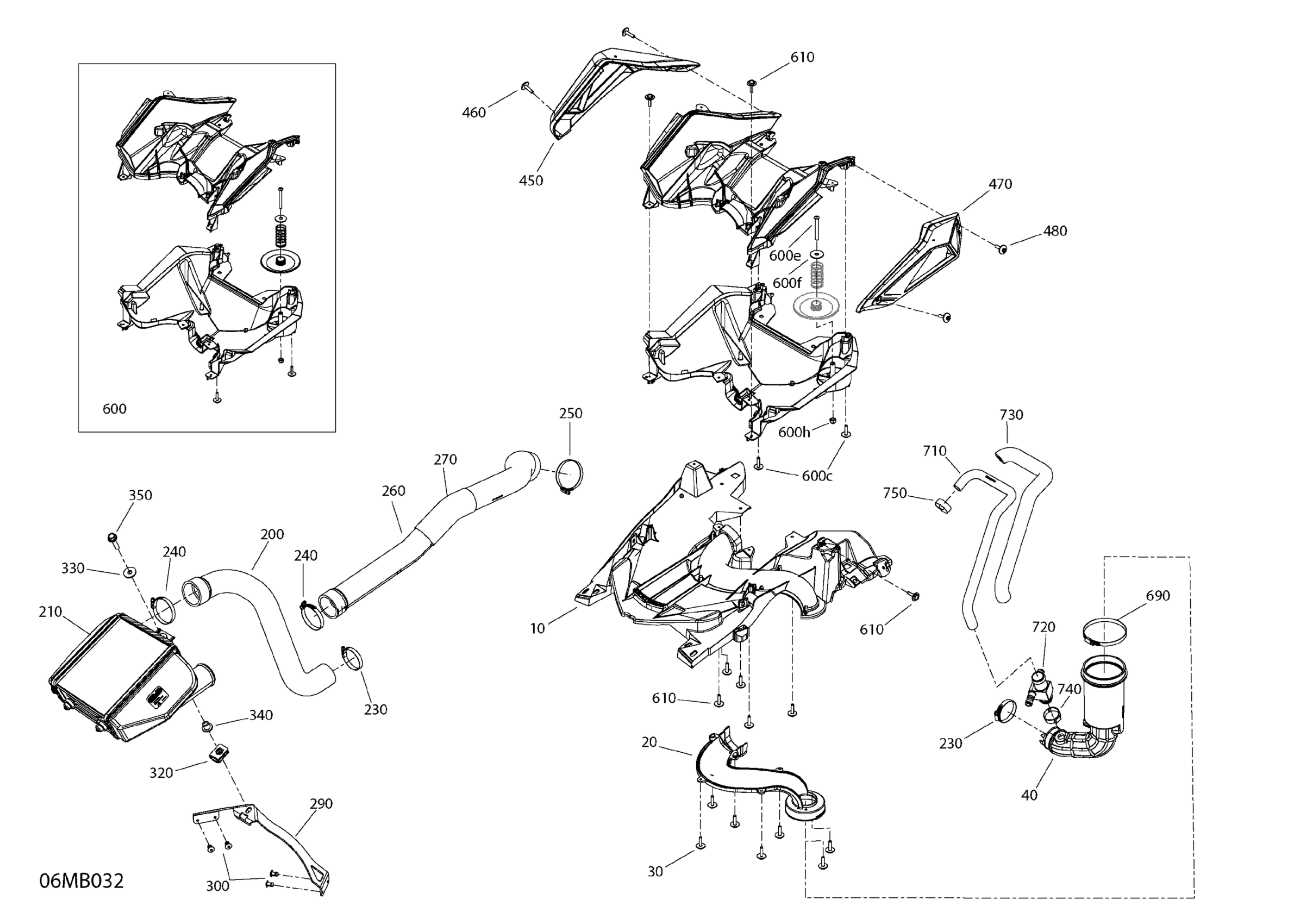

Ski-Doo GRAND TOURING 900 ACE TURBO R - LTD - 2022 Engine - Air Intake Diagram

Description

Price

Multi Purpose Plate

508001077

$37.66

Tube In

508000887

$11.57

Screw M4 X 16

250000725

$2.87

Intake Silencer

508001183

$51.51

200

Inlet Hose

508000856

$72.28

210

Intercooler

508001317

$419.99

230

Mounting Clamp

293650303

$3.68

240

Mounting Clamp

293650302

$3.79

250

Mounting Clamp

293650302

$3.79

260

Inlet Hose

508001010

$86.12

270

Protector Tube

508001033

$12.58

290

Rear Support

508000861

$36.12

300

Avex Rivet

390909100

$0.29

320

Panel Nut M6 X 1.0

250100208

$1.07

330

Flat Washer

250200082

$0.35

340

Bushing

293900100

$6.31

350

Hex. Flange Screw M6 X 25

207562544

$1.39

450

RH Air Filter (Nitex Mesh)

508000906

$36.89

460

Screw M4 X 16

250000889

$2.46

470

LH Air Filter (Nitex Mesh)

508000905

$36.89

480

Screw M4 X 16

250000889

$2.46

600

Air Duct Ass'y | Includes 600 to 600j

508001078

$61.51

600c

Screw M4 X 16

250000725

$2.87

600e

Socket Head Screw M4 X 40

205444056

$1.74

600f

Flat Washer

224060201

$1.15

600h

Elastic Stop Nut M4

232541414

$0.48

610

Screw M4 X 16

250000725

$2.87

690

Norma Clamp

514052924

$10.58

710

Vent Hose

508000862

$15.35

720

Heated Breather

508000946

$26.12

730

Insulating Tube

508000907

$15.35

740

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

750

Tridon Gear Clamp

293650172

$2.68
