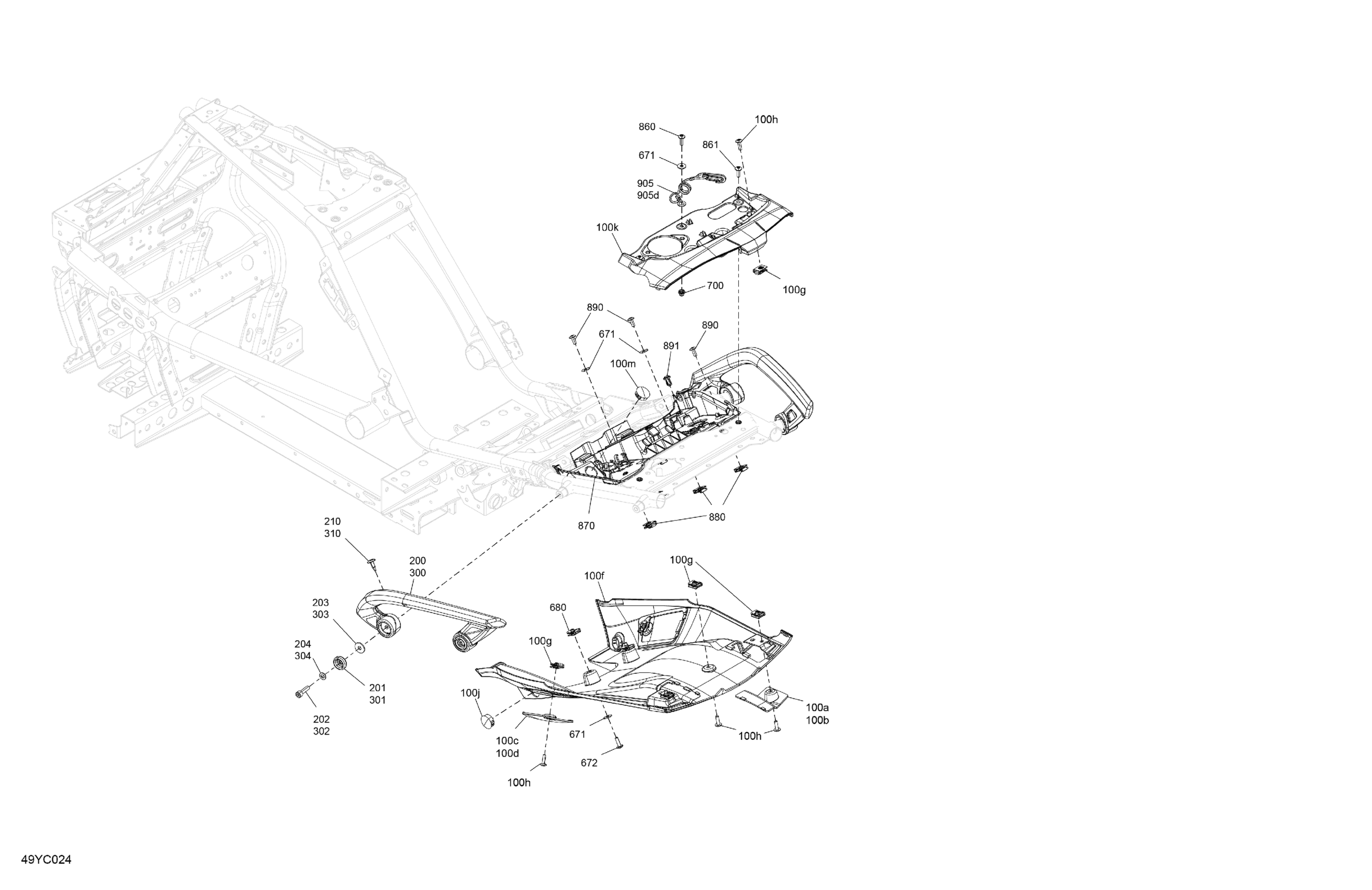

Can-Am F3 SPORT - Monolith Black Satin, 2023 Body - Cargo Diagram

#

Description
Price

100a

LH Rear Cap

708301449

$15.00

100b

RH Rear Cap

708301450

$15.00

100c

LH Front Cap

708301513

$17.00

100d

RH Front Cap

708301514

$17.00

100f

Under Tail Cover

708001415

$55.00

100g

Panel Nut M6 X 1.0

250100208

Unavailable

100h

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

100j

Black, Nylon Cap

414916600

Unavailable

100k

Taillight Support

708002814

$27.00

100m

Black, Nylon Cap

414916600

Unavailable

200

LH Rear Holding Handle

708003456

$106.00

201

Bushing

708302461

$19.00

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

203

Flat Washer 8 mm

234082410

Unavailable

204

Stainless Steel Flat Washer 8 mm

234081670

Unavailable

210

Tuflock Phillips Plastic Screw

414745900

Unavailable

300

RH Rear Holding Handle

708003457

$106.00

301

Bushing

708302461

$19.00

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

303

Flat Washer 8 mm

234082410

Unavailable

304

Stainless Steel Flat Washer 8 mm

234081670

Unavailable

310

Tuflock Phillips Plastic Screw

414745900

Unavailable

671

Stainless Steel Flat Washer

234062670

Unavailable

672

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

680

Panel Nut M6 X 1.0

250100208

Unavailable

700

Threaded Insert M6 X 1.0

250100242

Unavailable

860

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

861

Torx Screw M6 X 20, Scotch Grip

250000446

Unavailable

870

Cargo Rear Support

708301698

$90.00

880

Panel Nut M6 X 1.0

250100208

Unavailable

890

Torx Truss M8 X 16

250000881

Unavailable

891

Tuflok Plastic Rivet

293150230

Unavailable

905

Lanyard | Included 905 to 905d

708002532

$23.00

905d

Cord Decal

704905127

Unavailable
