Description

Price

10

Chassis | Included 10 to 10ag

705210350

Unavailable

20<20g

Kit Frame Extension

219800411

$560.00

20a

Hex Screw Washer Head M8 X 20

207582054

$2.61

20b

Panel Nut M8 X 1.25

250100069

$4.00

20c

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$3.61

20d

Flat Washer 10 mm

234001410

$0.98

20e

Threaded Insert M6 X 1.0

250100242

$2.54

20f

Riveting Adaptor | Not shown

705202624

$6.00

20g

Flat Washer | Not shown

391300800

$0.85

30

Carbon Black, RH Upper Lateral Support

705204607

$350.00

40

Carbon Black, LH Upper Lateral Support

705204612

$210.00

50

Hex Screw Washer Head M8 X 20

207582054

$2.61

50

Hex Screw Washer Head M8 X 20

207582054

$2.61

50

Hex Screw Washer Head M8 X 20

207582054

$2.61

50

Hex Screw Washer Head M8 X 20

207582054

$2.61

60

Panel Nut M8 X 1.25

250100069

$4.00

80

Panel Nut M8 X 1.25

250100118

$1.63

80

Panel Nut M8 X 1.25

250100118

$1.63

95

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.65

100

Lock Washer Helical M10

234101411

$0.22

120

Insert Half Hex Body M6 x 1.0

250100199

$2.54

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

140

Insert Half Hex Body M6 x 1.0

250100199

$2.54

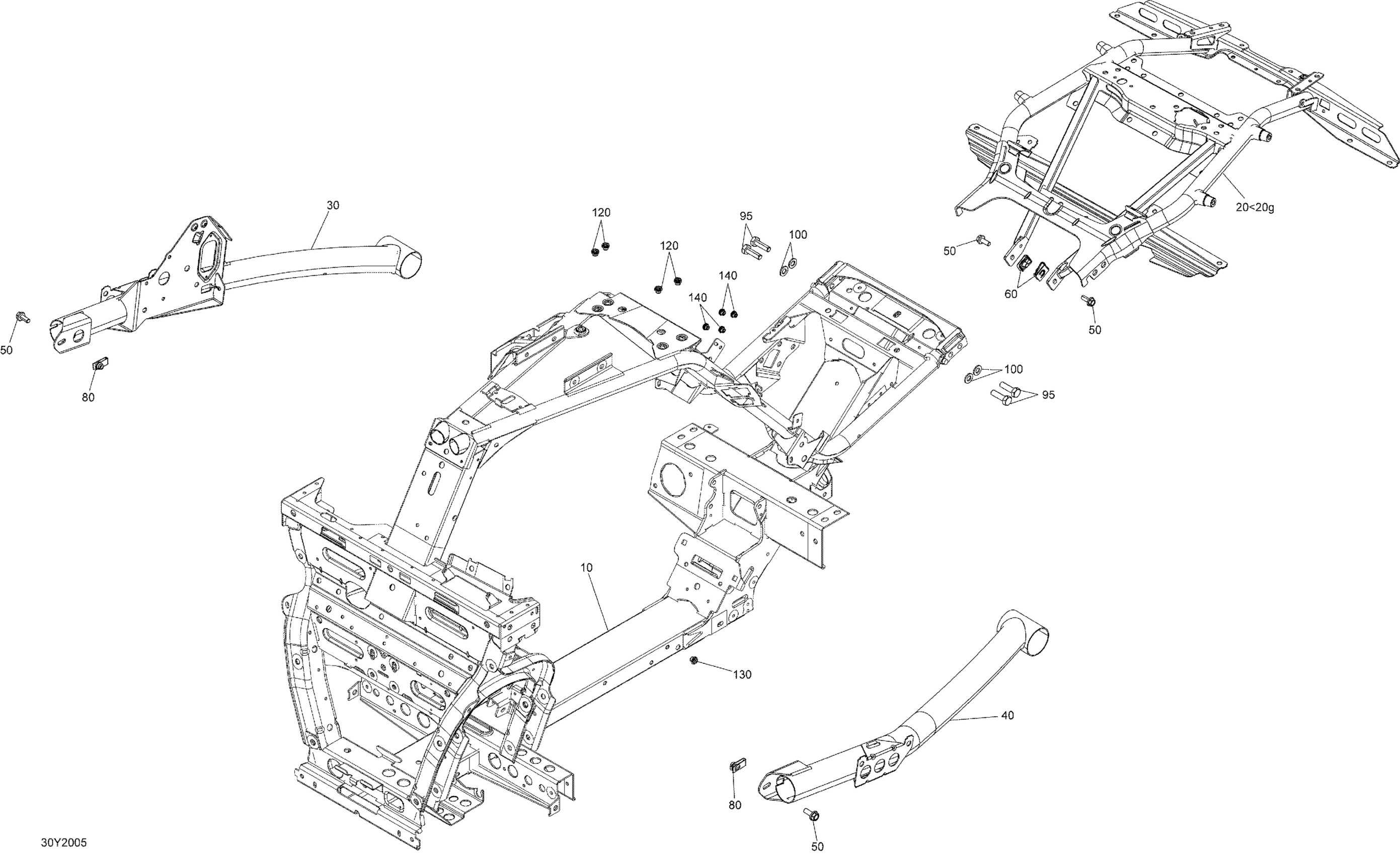

Can-Am F3 LTD SE6, 2020 Frame Diagram

Chassis | Included 10 to 10ag
