Description

Price

200

RH Front Skid Plate

705007786

$28.00

210

Tuflok Plastic Rivet

293150230

$1.21

220

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

230

Panel Nut M6 X 1.0

250100208

$1.07

400a

Carbon Black, RH Footrest Support | Includes 40 to 40b

705008954

$120.00

400b

RH Outer Protective Film

705014179

$10.00

400c

RH Inner Protective Film

705014175

$7.00

400d

Tube Support | Includes 150 to 150a

705008950

$23.00

400e

Washer

506152582

$4.42

400f

Hex. Cap Screw Full Thread M10 X 20

250000719

$6.00

400g

Carbon Black, RH Slider Outside | Includes 170 to 170b

705009463

$63.00

400i

Pivot Pin | Includes 220 to 220

705013628

$18.00

400l

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$40.00

400m

Socket Head Screw M8 X 25

250000830

$2.00

400n

Back Plate

705008553

$25.00

400o

Socket Head Screw M8 X 25

250000830

$2.00

400p

RH Foot Board | Includes 20 to 20b

705009455

$110.00

400q

RH Footrest Pad

705015847

$67.00

400s

Allen Plastite Screw #12

250000099

$2.31

400u

Thin Socket Screw, Scotch Grip, M10

250000997

$7.00

400v

Stainless Flat Washer, 10 mm

250200105

$1.74

400x

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

400y

Hex. Flange Elastic Nut M6

233261466

$1.66

400z

Bright Chrome, RH Rear Footrest Support | Includes 70 to 70a

705008277

$940.00

400z

Carbon Black, RH Rear Footrest Support | Includes 70 to 70b

705009402

$410.00

400aa

Spacer Bushing

705008166

$6.00

400ab

Pivot Pin | Includes 220 to 220

705013628

$18.00

400ad

Rubber Bumper

293830005

$5.33

400ae

Pivot Cap | Includes 540 to 540b

705010203

$28.00

400af

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

400ag

Carbon Black, RH Foot Board | Includes 210 to 210b

705010759

$110.00

400ah

Foot Board Pad, Passenger

705009234

$54.00

400ai

Allen Plastite Screw #12

250000099

$2.31

400aj

Rubber Stopper

708000759

$3.61

400ak

Socket Head Screw M8 X 25

250000830

$2.00

400am

RH Fairing Support

705008962

$16.00

400an

Black, Flat Washer 6 mm

234061670

$1.00

400ao

Hex. Flange Screw M6 X 12

210261250

$1.56

400ap

Panel Nut M6 X 1.0

250100198

$1.73

400aq

Brake Pedal | Includes 800 to 800a3

705601419

$105.00

400ar

Rubber Pad

705004933

$21.00

400as

Hex. Flange Screw M6 X 12

210261250

$1.56

400at

Bearing

705600458

$7.03

400au

Washer

503192496

$0.75

400av

Washer

503183800

$3.20

400aw

Elastic Locking Nut M10

233601466

$1.74

400ax

Hex. Cap Screw M10 X 60

207006056

$6.18

400ay

Master Cylinder Rocker | Includes 900 to 900d

705601308

$50.00

400az

Bearing

705600458

$7.03

400ba

Bushing

705600541

$15.00

400bb

O-Ring

293300191

$1.00

400bc

Washer

503183800

$3.20

400bd

Locking Tab | Includes 940 to 940b

705601229

$26.00

400be

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

400bf

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

400bg

Brake Master Cylinder Stopper

705601375

$12.00

400bh

Screw M4 X 16

250000725

$2.87

400bi

Brake Linkage Kit (410.7 mm) | Includes 1000 to 1000a2a

219400628

$21.00

400bj

Flange Screw M6 X 26

250000714

$4.00

400bl

Hex. Flange Elastic Nut M6

233261466

$1.66

400bm

Quick-Attach Bracket

705601350

$13.00

400bn

Push Nut

250100178

$0.58

400bo

Light Switch Bracket | Includes 1100 to 1100b

705601342

$12.00

400bp

Torx Head Screw M6 X 16

250000717

$1.74

400bq

Switch Deflector

705601343

$14.00

400br

Torx Head Screw M6 X 16

250000717

$1.74

400bs

MASTER CYLINDER TIE-ROD END - Call your local BRP dealership

705601340

Unavailable

400bt

Piston Rod

705600468

$23.00

400bu

Hex. Nut M8

232081414

$0.60

400bv

Hexagonal Head Cap Screw M8 X 35

207283544

$3.00

400bw

Hex. Elastic Stop Nut M8

232581414

$0.47

410

Spacer

705008219

$13.00

420

Hex. Flange Screw M6 X 60

250000778

$3.61

430

Hex. Flange Elastic Nut M6

233261466

$1.66

440

Washer M6

250200029

$1.83

450

Pivot Cap

705010202

$23.00

460

Socket Head Screw

205505560

$7.00

470

Hex Screw Washer Head M8 X 20

207582054

$2.61

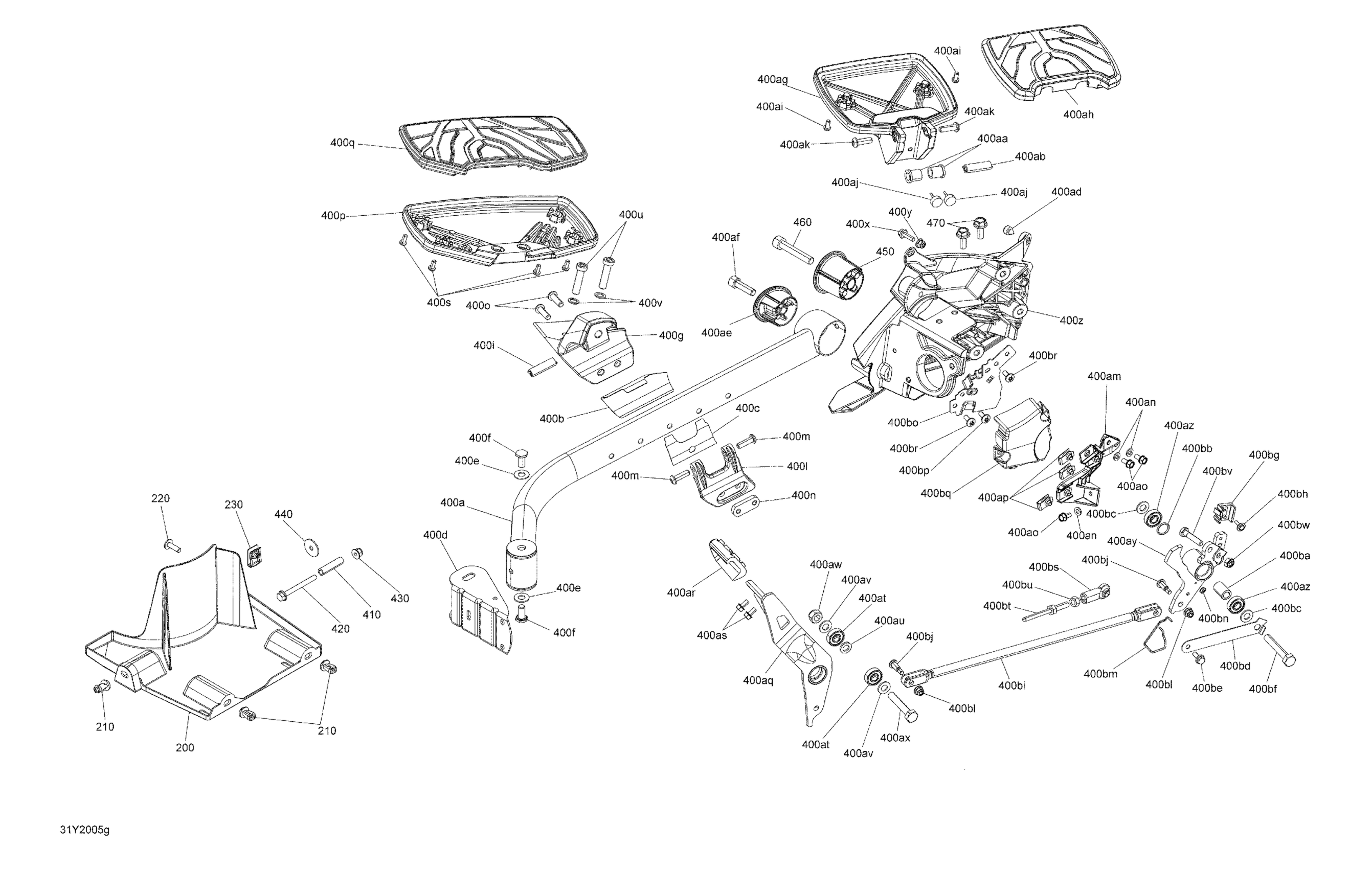

Can-Am F3 LTD SE6, 2020 Body And Accessories RH Footrest Diagram
