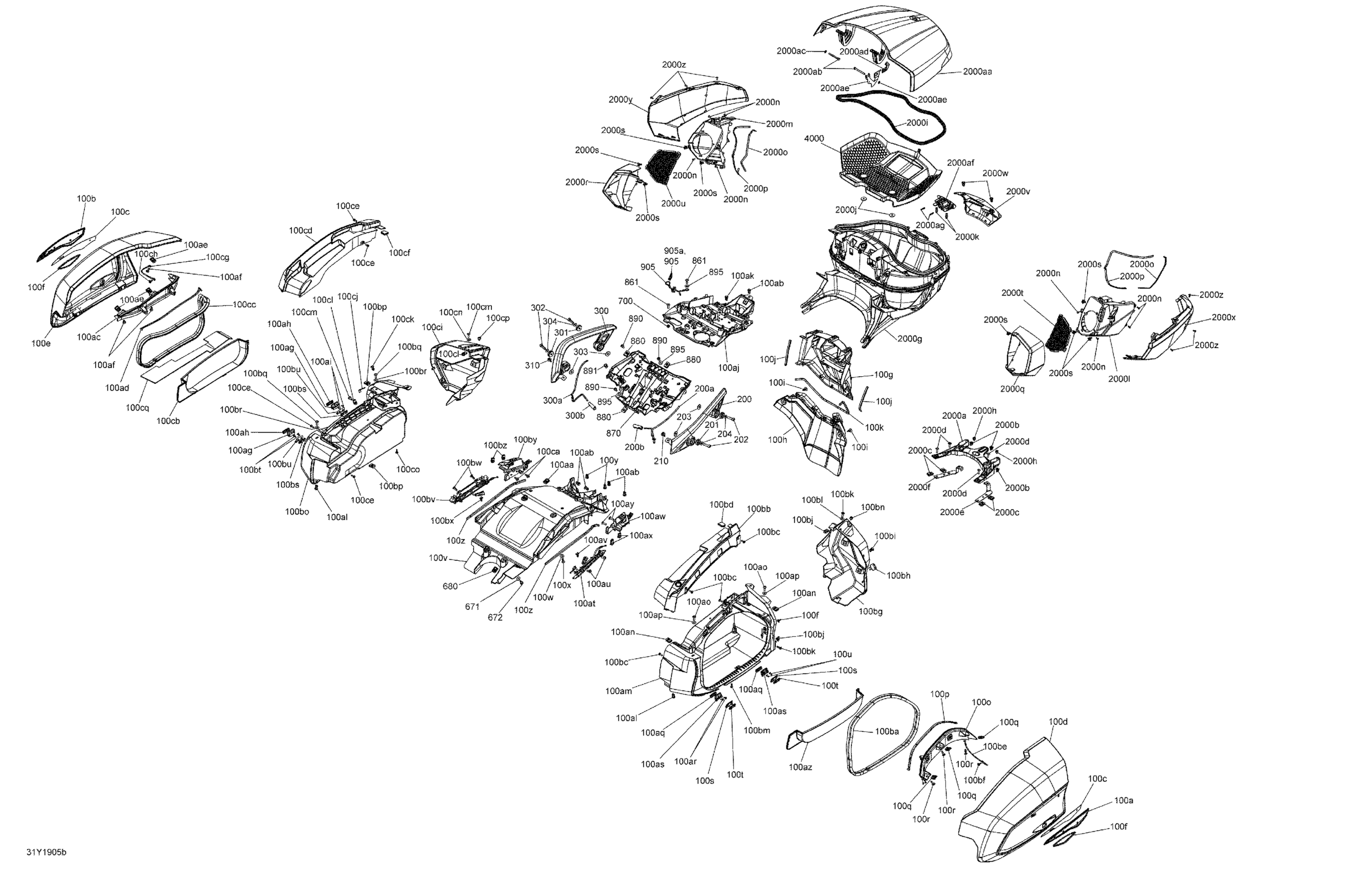

Can-Am F3 LTD SE6, 2019 Body And Accessories Cargo Diagram

#

Description
Price

100a

LH Trim Box

708301587

$130.00

100b

RH Trim Box

708301588

$130.00

100c

Trim Box Double Face Tape

704905469

$4.00

100d

Steel Black, LH Trunck Cover

708301268

$460.00

100d

Vegas White, LH Trunk Cover

708301917

$460.00

100d

LH Trunk Cover, Oxford Blue Metallic | Model Oxford
Blue

708302450

$460.00

100d

LH Trunk Cover, Pheonix Orange Metallic | Model B-424 Pheonix Orange Metallic

708302826

$460.00

100e

Steel Black, RH Trunk Cover

708301269

$460.00

100e

Vegas White, RH Trunk Cover

708301922

$460.00

100e

RH Trunk Cover, Oxford Blue Metallic | Model Oxford
Blue

708302451

$450.00

100e

RH Trunk Cover, Pheonix Orange Metallic | Model B-424 Pheonix Orange Metallic

708302827

$460.00

100f

Amber, Lateral Reflector

705002423

$13.28

100f

Red, Lateral Reflector

705003412

$13.28

100g

Rear Fender

708301584

$205.00

100h

Rear Fender Extention

708301747

$205.00

100i

Tuflock Phillips Plastic Screw

414745900

$1.30

100j

Neoprene Seal, 150 MM

293250385

$3.00

100k

Seal 1000Mm Long

219704373

$8.29

100o

LH Inner Cover | Included 100s to 100s3

708301663

$84.00

100p

Gasket, Neoprene 2000Mm Long

219704476

$12.64

100q

Panel Nut M6 X 1.0

250100208

$1.07

100r

Torx Screw M6 X 20

250000722

$1.34

100s

Female Hinge

708302044

$11.00

100t

Retaining Plate

708302046

$13.00

100u

Torx Truss Screw K40 X 12

250000577

$1.74

100v

Under Tail

708301609

$46.00

100w

Stainless Steel Flat Washer

234062670

$1.74

100x

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

100y

Tuflok Plastic Rivet

293150230

$1.21

100z

Neoprene Seal, 150 MM

293250385

$3.00

100aa

Panel Nut M6 X 1.0

250100208

$1.07

100ab

Tuflok Plastic Rivet

293150230

$1.21

100ac

RH Inner Cover | Included 100ah to 100ah3

708301664

$84.00

100ad

Gasket, Neoprene 2000Mm Long

219704476

$12.64

100ae

Panel Nut M6 X 1.0

250100208

$1.07

100af

Torx Screw M6 X 20

250000722

$1.34

100ag

Female Hinge

708302044

$11.00

100ah

Retaining Plate

708302046

$13.00

100ai

Torx Truss Screw K40 X 12

250000577

$1.74

100aj

Electronic Component Support

708302571

$24.00

100ak

Tuflok Plastic Rivet

293150230

$1.21

100al

Tuflok Plastic Rivet

293150230

$1.21

100am

LH Cargo

708302404

$95.00

100an

Panel Nut M6 X 1.0

250100208

$1.07

100ao

Torx Screw M6 X 20

250000722

$1.34

100ap

Flat washer M6

250200164

$0.83

100aq

Retaining Plate

708302046

$13.00

100ar

Torx Truss Screw K40 X 12

250000577

$1.74

100as

Male Hinge

708302045

$11.00

100at

LH Latch Assembly

708301794

$155.00

100au

Torx Screw M6 X 20

250000722

$1.34

100av

Connector Holder

710002033

$3.22

100aw

LH Control

708301222

$44.00

100ax

Panel Nut M6 X 1.0

250100198

$1.73

100ay

Torx Screw M6 X 20

250000722

$1.34

100az

Cargo Separator LH | Package T and LTD

708301719

$15.00

100ba

Molded Weather Strip

293250420

$31.00

100bb

LH Cargo Fairing

708302401

$79.00

100bc

Torx Screw K50 X 16

250000720

$1.39

100bd

Antena Cap

708301805

$4.00

100be

Retainer Cable

708300385

$39.00

100bf

Screw M4 X 16

250000725

$2.87

100bg

LH Light Support

708302283

$50.00

100bh

Brace

708302284

$13.00

100bi

Tuflok Plastic Rivet

293150230

$1.21

100bj

Panel Nut M6 X 1.0

250100198

$1.73

100bk

Torx Screw M6 X 20

250000722

$1.34

100bl

Flat washer M6

250200164

$0.83

100bm

Torx Screw K50 X 16

250000720

$1.39

100bn

Rubber Bumper

293830005

$5.33

100bo

RH Cargo

708302405

$95.00

100bp

Panel Nut M6 X 1.0

250100208

$1.07

100bq

Torx Screw M6 X 20

250000722

$1.34

100br

Flat washer M6

250200164

$0.83

100bs

Retaining Plate

708302046

$13.00

100bt

Torx Truss Screw K40 X 12

250000577

$1.74

100bu

Male Hinge

708302045

$11.00

100bv

RH Latch Assembly

708301795

$155.00

100bw

Torx Screw M6 X 20

250000722

$1.34

100bx

Connector Holder

710002033

$3.22

100by

RH Control

708301697

$44.00

100bz

Panel Nut M6 X 1.0

250100198

$1.73

100ca

Torx Screw M6 X 20

250000722

$1.34

100cb

Cargo Separator RH | Package T and LTD

708301862

$15.00

100cc

Molded Weather Strip

293250420

$31.00

100cd

RH Cargo Fairing

708302402

$79.00

100ce

Torx Screw K50 X 16

250000720

$1.39

100cf

Antena Cap

708301805

$4.00

100cg

Retainer Cable

708300385

$39.00

100ch

Screw M4 X 16

250000725

$2.87

100ci

RH Light Support

708302285

$50.00

100cj

Brace

708302284

$13.00

100ck

Tuflok Plastic Rivet

293150230

$1.21

100cl

Panel Nut M6 X 1.0

250100198

$1.73

100cm

Torx Screw M6 X 20

250000722

$1.34

100cn

Flat washer M6

250200164

$0.83

100co

Torx Screw K50 X 16

250000720

$1.39

100cp

Rubber Bumper

293830005

$5.33

100cq

Heat Shield

705009908

$48.00

200>200b

LH Rear Heated Holding Handle

708304250

$175.00

200a

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

200b

Male Housing, 2 Circuits

710000667

$7.48

201

Bushing

708302461

$19.00

202

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

203

Flat Washer 8 mm

234082410

$1.11

204

Stainless Steel Flat Washer 8 mm

234081670

$0.56

210

Tuflock Phillips Plastic Screw

414745900

$1.30

300>300b

RH Heated Passenger Handle | Package LTD

708301657

$143.00

300a

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

300b

Male Housing, 2 Circuits

710000667

$7.48

301

Bushing

708302461

$19.00

302

Socket Head Screw M8 X 30, Scotch Grip

250000823

$3.00

303

Flat Washer 8 mm

234082410

$1.11

304

Stainless Steel Flat Washer 8 mm

234081670

$0.56

310

Tuflock Phillips Plastic Screw

414745900

$1.30

671

Stainless Steel Flat Washer

234062670

$1.74

672

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

680

Panel Nut M6 X 1.0

250100208

$1.07

700

Insert Half Hex Body M6 x 1.0

250100199

$2.54

861

Torx Screw M6 X 20

250000722

$1.34

870

Cargo Rear Support

708301698

$90.00

880

Panel Nut M6 X 1.0

250100208

$1.07

890

Torx Truss M8 X 16

250000881

$1.74

891

Tuflok Plastic Rivet

293150230

$1.21

895

Flat washer M6

250200164

$0.83

905>905a

Lanyard | Included 905 to 905d

708002532

$23.00

905a

Cord Decal

704905127

Unavailable

2000a

Central Pillar | Package LTD

708301989

$10.00

2000b

Edge Clip

517302785

$0.70

2000c

Panel Nut M6 X 1.0

250100208

$1.07

2000d

Torx Screw M6 X 20

250000722

$1.34

2000e

LH Central Pillar Stiffener | Package LTD

708302556

$26.00

2000f

RH Central Pillar Stiffener | Package LTD

708302557

$26.00

2000g

Storage Box | Package LTD

708302228

$490.00

2000h

Rubber Bumper

293830005

$5.33

2000i

Trim

293250579

$16.00

2000j

Washer | Not Shown

503193995

$4.38

2000k

Stud

518333307

$13.00

2000l

LH Speaker Enclosure

708302113

$20.00

2000m

RH Speaker Enclosure

708302114

$20.00

2000n

Torx Truss Screw K40 X 12

250000577

$1.74

2000o

Seal 1000Mm Long

219704373

$8.29

2000p

Seal 1000Mm Long

219704373

$8.29

2000q

LH Rear Speaker Trim

708302692

$45.00

2000r

RH Rear Speaker Trim

708302693

$45.00

2000s

Edge Clip

517302785

$0.70

2000t

LH Speaker Grille

708302106

$4.00

2000u

RH Speaker Grille

708302107

$4.00

2000v

Light Support

708302152

$12.00

2000w

Tuflok Plastic Rivet

293150230

$1.21

2000x

Vegas White Pearl, LH Trunk Panel | Package LTD White

708302229

$220.00

2000x

Steel Black, LH Trunk Panel | Model Steel
Black

708302230

$215.00

2000x

LH Trunk Panel, Oxford Blue | Model Oxford
Blue

708302534

$220.00

2000x

LH Trunk Panel, Pheonix Orange Metallic | Model B-424 Pheonix Orange Metallic

708302830

$220.00

2000y

Vegas White Pearl, RH Trunk Panel | Package LTD White

708302232

$220.00

2000y

Steel Black, RH Trunk Panel | Model Steel
Black

708302233

$220.00

2000y

RH Trunk Panel, Oxford Blue | Model Oxford
Blue

708302535

$220.00

2000y

RH Trunk Panel, Pheonix Orange Metallic | Model B-424 Pheonix Orange Metallic

708302831

$220.00

2000z

Torx Truss Screw K40 X 12

250000577

$1.74

2000aa

Kit Cover Trunk R B-266 | Package LTD Red

219800479

$300.00

2000aa

Vegas White Pearl, Trunk Cover | Package LTD White

708302201

$310.00

2000aa

Trunk Cover, Oxford Blue Metallic | Model Oxford
Blue

708302540

$310.00

2000aa

Kit Cover Trunk R B-424 | Model B-424 Pheonix Orange Metallic

219800483

$400.00

2000ab

Hex. Screw M6 X 65

207066544

$0.46

2000ac

Pressure Nut

250100163

$1.72

2000ad

Stopper | Package LTD

708302446

$6.00

2000ae

Unlocking Lever | Not Shown

708302444

$19.00

2000af

Trunk Control Ass'y

708302100

$24.00

2000ag

Spring

708302198

$2.00

4000

Inner Liner | Package LTD

708302203

$31.00
