Description

Price

500

Radiator Hose In

509001275

$15.35

520

Norma Spring Clamp

293650264

$4.28

600

Engine Outlet Hose

509001013

$18.43

620

Oetiker Gear Clamp 36.1MM

509000045

$3.55

720

Norma Spring Clamp

293650264

$4.28

1200

Coolant Tank Hose

509001083

$15.35

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$25.35

1210

Crimp Clamp

293650099

$4.60

1220

Hose

509001035

$23.82

1230

Oetiker Clamp

293650046

$2.33

1240

Oetiker Clamp

293650046

$2.33

1250

Oetiker Clamp

509001041

$2.75

1275

Oetiker Clamp

293650046

$2.33

2000

Cooling Tank

509001033

$86.12

2100

Hose 6 Mm 15000Mm Long

219704360

$104.62

2105

Protector Tube | Not shown

503195447

$13.85

2250

Radiator Pressure Cap

509000180

$11.69

2500

Coolant Pipe | Includes 2500 to 2500f

509001030

$25.35

2500a

Insert M5 X 0.8

293450268

$1.95

2510

Protector

512061214

$2.06

2600

Clamp

509001049

$4.08

2700

Torx Screw M5 X 14

250000742

$1.20

3010

Crimp Clamp

293650099

$4.60

3075

Panel Nut M6 X 1.0

250100208

$1.07

3100

Hose Radiator In

509001350

$13.99

3110

Oetiker Clamp

293650141

$4.28

3120

Hose Radiator Out

509001084

$15.35

3150

Hex. Flange Screw M6 X 25

207562544

$1.39

3300

Front Radiator This part replaces 509001465.

509001057

$165.35

3325

Clip

414227300

$1.45

3350

Fan Ass'y

509001302

$222.28

3360

Central Radiator Support

509001023

$18.43

3370

Lower Radiator Support

509001024

$4.00

3375

Avex Rivet

390909100

$0.29

3390

Bushing

293900151

$5.33

3395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

4050

Flat Washer

250200082

$0.35

8120

Hex. Flange Screw K50 X 20

241152060

$1.57

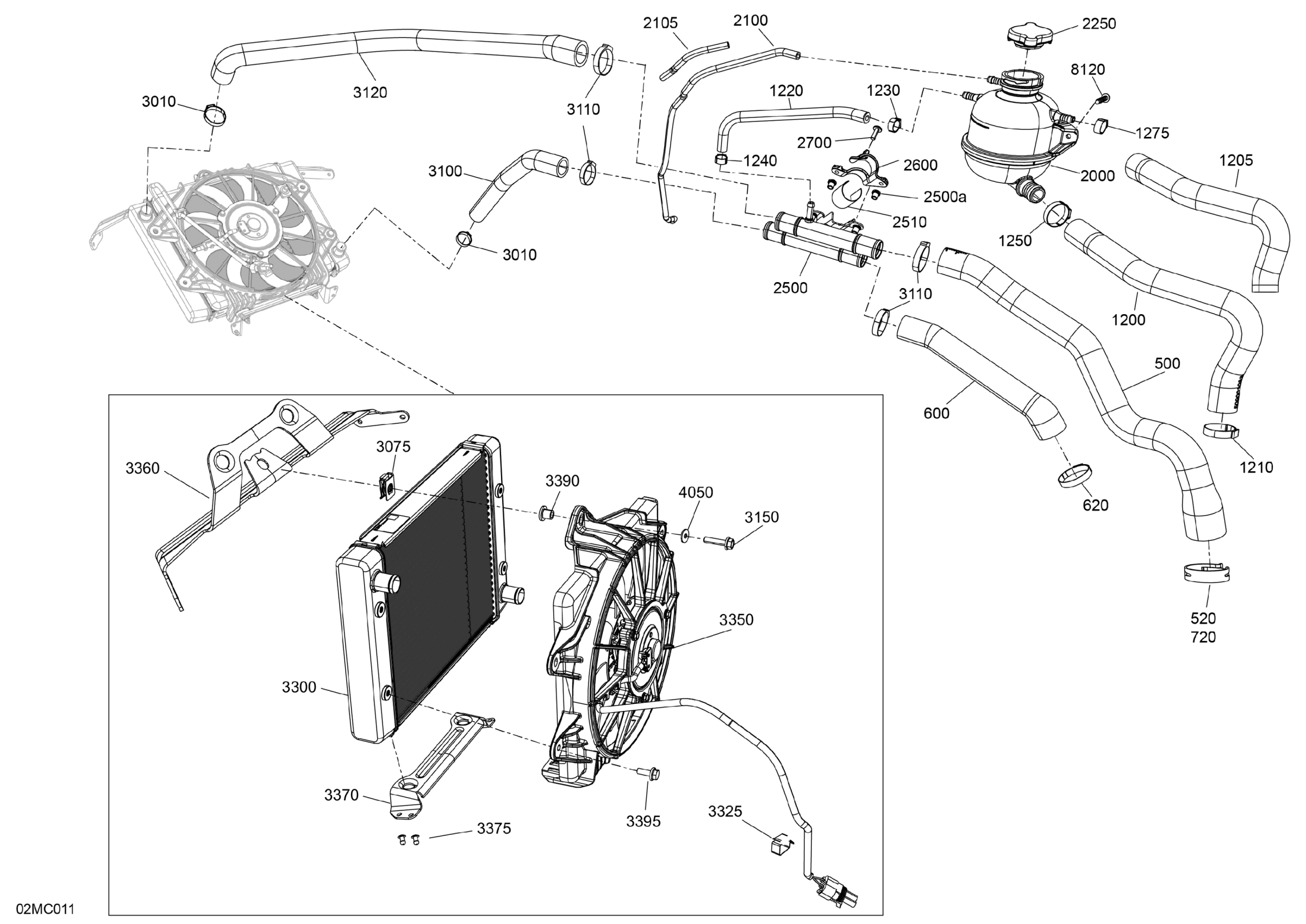

Ski-Doo EXPEDITION SPORT 900 ACE - (KDPA) - 2023 Engine - Cooling Diagram
