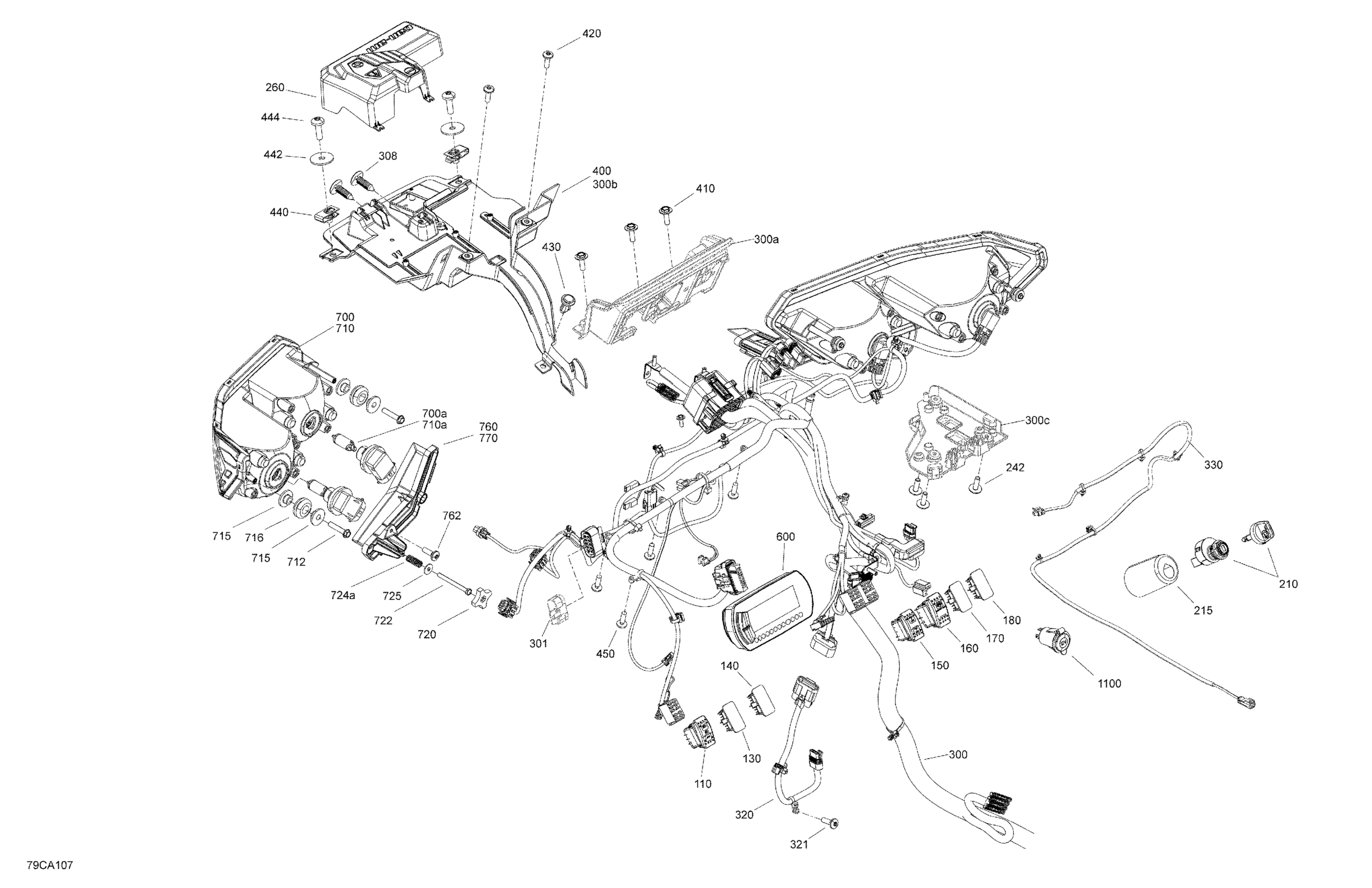

Can-Am Defender PRO HD10 - DPS_XT - 2021 Electric - Front System - DPS Diagram

#

Description
Price

110

Light Switch

710004492

Unavailable

130

Plug Carling | Australia, Brazil, Europe, Japan

710007173

Unavailable

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

Unavailable

150

Switch 2X4

710005489

Unavailable

160

Differential Lock Switch

710005470

Unavailable

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

Unavailable

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

Unavailable

210

Inter Allumage *Ignition

710007870

Unavailable

215

Key Switch Protector

710005739

Unavailable

242

Screw PT Type K-50 X 16

250000959

Unavailable

260

Junction Block Cover

710006707

Unavailable

300

Main Wiring Harness | Includes 300 to 300c

710006377

Unavailable

300a

Fusebox Support

710006640

Unavailable

300c

Connector Support

710006706

Unavailable

300

Main Wiring Harness | Includes 300 to 300c

710006377

Unavailable

300a

Fusebox Support

710006640

Unavailable

300b

Connector Support

710006706

Unavailable

300

Main Wiring Harness | Includes 300 to 300a

710007339

Unavailable

300a

Fuse Box Decal

710007486

Unavailable

301

DPS Connector Cap | Not Shown

710005760

Unavailable

308

Black, Dart

293730006

Unavailable

320

Throttle Pedal Harness

710006837

Unavailable

321

Torx Screw K50 X 16

250000720

$1.39

330

Safety Belt Wiring Harness

710007042

Unavailable

400

Wiring Harness Support

710006649

Unavailable

410

Screw PT Type K-50 X 16

250000959

Unavailable

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

Unavailable

440

Panel Nut M6 X 1.0

250100198

Unavailable

442

Washer M6

250200029

Unavailable

444

Torx Screw M6 X 20

250000712

$1.74

450

Torx Screw K50 X 16

250000720

$1.39

600

Multifunction Compact Gauge

710007407

Unavailable

700

LH Beam | Includes 700 to 700a

710008316

Unavailable

700a

Halogen Bulb H8 12V 35W Blue

715900653

Unavailable

710

RH Beam | Includes 710 to 710a

710008317

Unavailable

710a

Halogen Bulb H8 12V 35W Blue

715900653

Unavailable

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

Unavailable

716

Grommet

709000582

$4.38

720

Handle

572106600

Unavailable

722

Hex. Screw K40 X 45

250000718

Unavailable

724a

Spring

517168600

Unavailable

725

Flat Washer 4 mm, Stainless

234042600

Unavailable

760

Deep Black, LH Front Headlight Trim

710008973

Unavailable

762

Screw PT Type K-50 X 16

250000959

Unavailable

770

Deep Black, RH Front Headlight Trim

710008974

Unavailable

1100

12V Power Outlet

710005374

Unavailable
