Description

Price

10

Deep Black, Chassis Kit

715009077

$3,159.99

30

Front Cage Profile Ass'y

715006528

$649.99

35

Rear Cage Profile Ass'y

715006532

$649.99

50

Deep Black, Front Bumper

705207588

$519.97

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

52

Hex. Elastic Flange Nut M8

233281416

$1.25

70

Module Support

705209388

$52.28

71

Hex. Flange Screw M8 X 20

207682044

$0.92

72

Hex. Elastic Flange Nut M8

233281416

$1.25

73

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

80

Power Steering Support

705208741

$65.35

81

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

82

Hex. Elastic Flange Nut M8

233281416

$1.25

83

Hex. Flange Screw M8 X 20

207682044

$0.92

90

Steering Column Support | Includes 90 to 90d

705209190

$34.58

90a

Insert Half Hex Body M6 x 1.0

250100199

$2.54

91

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

100

Deep Black, LH Protector Tube

705204594

$46.12

110

Deep Black, RH Protector Tube

705204592

$46.12

120

Support

705208742

$28.43

121

Hex. Elastic Flange Nut M8

233281416

$1.25

122

Hex. Flange Screw M8 X 20

207682044

$0.92

130

Insert Half Hex Body M6 x 1.0

250100199

$2.54

135

Insert Half Hex Body M6 x 1.0

250100199

$2.54

145

Insert Half Hex Body M6 x 1.0

250100199

$2.54

150

Heat Shield

705014849

$2.75

155

Heat Shield

705015496

$2.75

160

Heat Shield

707002709

$49.97

165

Pop Rivet 3/16"

293150103

$0.54

500

Rear Chassis Reinforcement

705207753

$31.51

510

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

600

Voltage Regulator Support

710007522

$16.12

605

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

607

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

610

Spacer

705208203

$17.66

615

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1300

Central Chassis Extension

705207484

$124.99

1310

Spacer

705207818

$13.49

1320

Support

705208025

$13.18

1330

Hex. Elastic Flange Nut M8

233281416

$1.25

1340

Hex. Flange Screw M8 X 20

207682046

$1.82

1350

Hex. Flange Screw M10 X 70

207607046

$2.91

1360

Hex. Flange Elastic Nut M10

233201436

$1.74

1510

Hex. Flange Screw M10 X 35

250000855

$1.46

1520

Hex. Flange Elastic Nut M10

233201436

$1.74

1530

Flange Elastic Nut M10

233201466

$2.63

1540

Hex. Flange Screw M10 X 6

207606046

$3.38

1550

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1560

Offset Washer

705202223

$4.98

1570

Torx Truss M6X14

250000789

$4.41

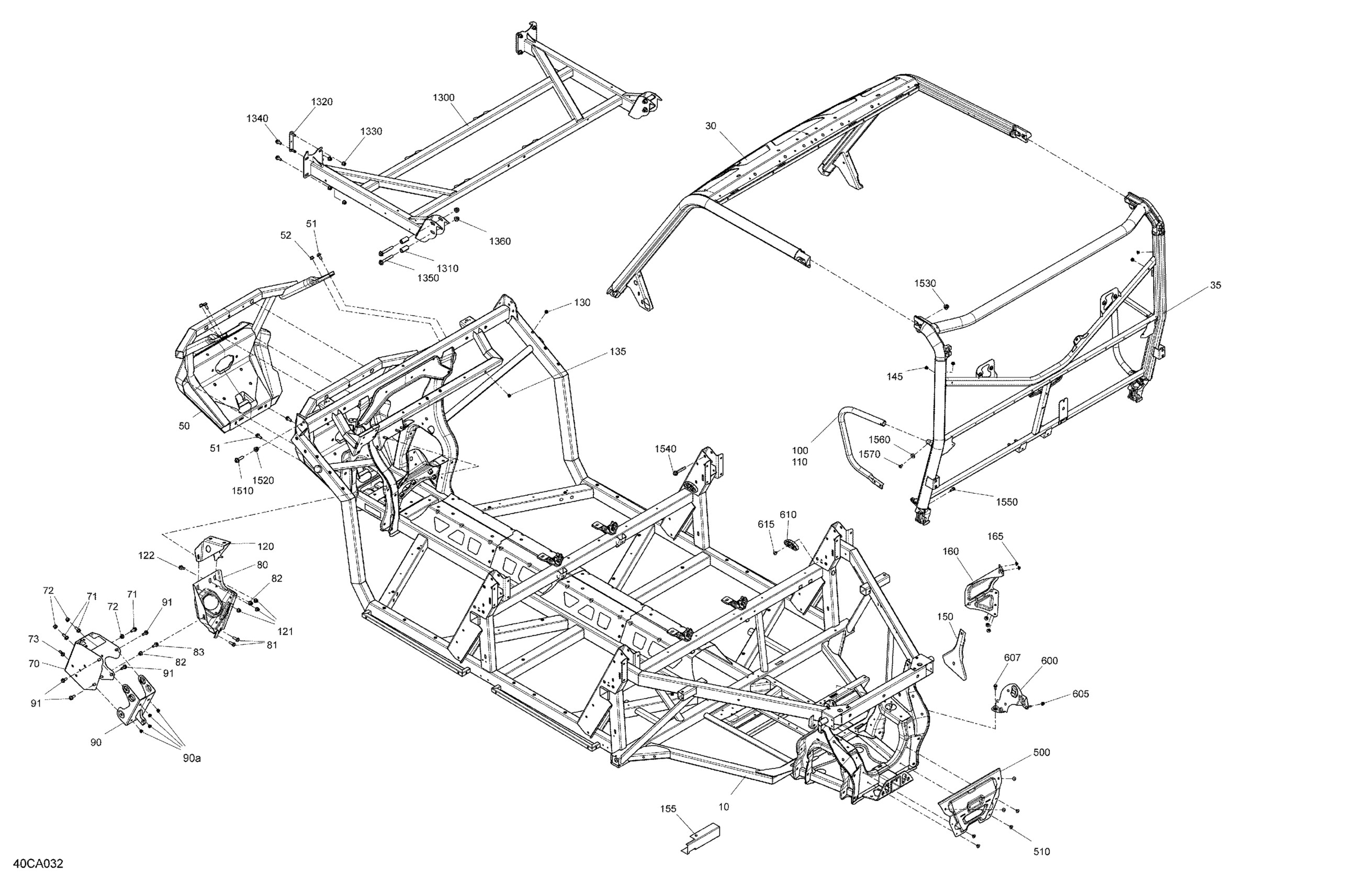

Can-Am Defender PRO HD10 - DPS - International, 2021 Frame - System Diagram
