Description

Price

10

Timeless Black, LH Front Fender

705015673

$189.97

10

Squadron Green, LH Front Fender | Green Model

705012590

$285.35

15

Panel Nut M6 X 1.0

250100198

$1.73

20

Timeless Black, RH Front Fender

705015674

$189.97

20

Squadron Green, RH Front Fender | Green Model

705012591

$285.35

25

Panel Nut M6 X 1.0

250100198

$1.73

30

Tuflok Plastic Rivet

293150230

$1.21

40

Washer

503192494

$3.11

100

Multi Purpose Support

705013766

$40.74

105

Torx Screw M6 X 20

250000722

$1.34

110

Panel Nut M6 X 1.0

250100198

$1.73

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

116

Stainless Steel Flat Washer

234062670

$1.74

120

Hex. Flange Screw M6 X 75

207667554

$3.61

130

Push Nut

732610072

$1.72

135

Bushing

293900125

$2.75

160

Timeless Black, Front Hood

705015666

$350.74

160

Squadron Green, Front Hood

705014054

$130.74

320

Grille

705013590

$24.58

330

Clip

517306478

$1.37

395

Screw M4 X 16

250000725

$2.87

400

Deep Black, Front Fascia

705014165

$213.05

401

LH Flasher Cap

705012285

$11.00

402

RH Flasher Cap

705012286

$11.00

403

Torx Screw M6 X 20

250000722

$1.34

404

Panel Nut M6 X 1.0

250100198

$1.73

410

Torx Screw M8 X 30

250000886

$1.74

420

Washer

503192494

$3.11

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Grommet

705010718

$2.69

510

Torx Screw M6 X 20

250000722

$1.34

520

Panel Nut M6 X 1.0

250100198

$1.73

525

Torx Screw M6 X 20

250000722

$1.34

530

Stainless Steel Flat Washer

234062670

$1.74

550

Torx Screw K50 X 16

250000720

$1.39

555

Flat Washer M5

234051670

$1.74

860

LH Front Lateral Panel

705008152

$59.97

870

RH Front Lateral Panel

705008153

$59.97

935

Torx Screw K50 X 16

250000720

$1.39

940

LH Rear Body Panel Ass'y

715007497

$106.12

941

Black, Nylon Cap

414916600

$4.32

945

Tuflok Plastic Rivet

293150230

$1.21

950

RH Rear Body Panel Ass'y

715007498

$106.12

955

Tuflok Plastic Rivet

293150230

$1.21

960

Torx Screw M6 X 20

250000722

$1.34

970

Panel Nut M6 X 1.0

250100198

$1.73

1000

Deep Black, LH Central Panel

705019037

$69.20

1005

Torx Truss Screw M6 X 25

250000807

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1020

Deep Black, RH Central Panel

705019038

$73.82

1025

Torx Truss Screw M6 X 25

250000807

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1030

Pop Rivet 3/16”

293150108

$1.23

1035

Pop Rivet 3/16”

293150108

$1.23

1100

LH Central Body Panel

705015817

$106.12

1105

Torx Truss Screw M6 X 25

250000807

$1.74

1115

Tuflok Plastic Rivet

293150230

$1.21

1120

Torx Truss Screw M6 X 25

250000807

$1.74

1122

Flat Washer M6.6 X 22

250200162

$1.91

1125

Stainless Steel Flat Washer

234062670

$1.74

1125

Stainless Steel Flat Washer

234062670

$1.74

1200

RH Central Body Panel

705015818

$106.12

1205

Torx Truss Screw M6 X 25

250000807

$1.74

1215

Tuflok Plastic Rivet

293150230

$1.21

1220

Torx Truss Screw M6 X 25

250000807

$1.74

1222

Flat Washer M6.6 X 22

250200162

$1.91

1225

Stainless Steel Flat Washer

234062670

$1.74

1225

Stainless Steel Flat Washer

234062670

$1.74

1300

LH Rear Cage Cover Kit

715006542

$27.66

1330

Tuflok Plastic Rivet

293150230

$1.21

1335

Washer

503192494

$3.11

1350

Deep Black, LH Rear Body Panel

705014748

$110.74

1360

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1370

Washer M5

250200025

$0.61

1400

RH Rear Cage Cover Kit

715006543

$26.12

1430

Tuflok Plastic Rivet

293150230

$1.21

1435

Washer

503192494

$3.11

1450

Deep Black, RH Rear Body Panel

705014749

$110.74

1460

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1470

Washer M5

250200025

$0.61

1880

Tuflok Plastic Rivet

293150230

$1.21

2100

Tuflok Plastic Rivet

293150230

$1.21

5000a

LH Front Deflector

705015795

$26.12

5000b

RH Front Deflector

705015796

$26.12

5000c

Torx Screw Truss Head PT.K50 X 25

250000907

$1.48

5400

LH Rear Deflector

705016336

$47.66

5410

Flat Washer 8 mm, Nylon

292001663

$1.18

5450

RH Rear Deflector

705016337

$47.66

5460

Flat Washer 8 mm, Nylon

292001663

$1.18

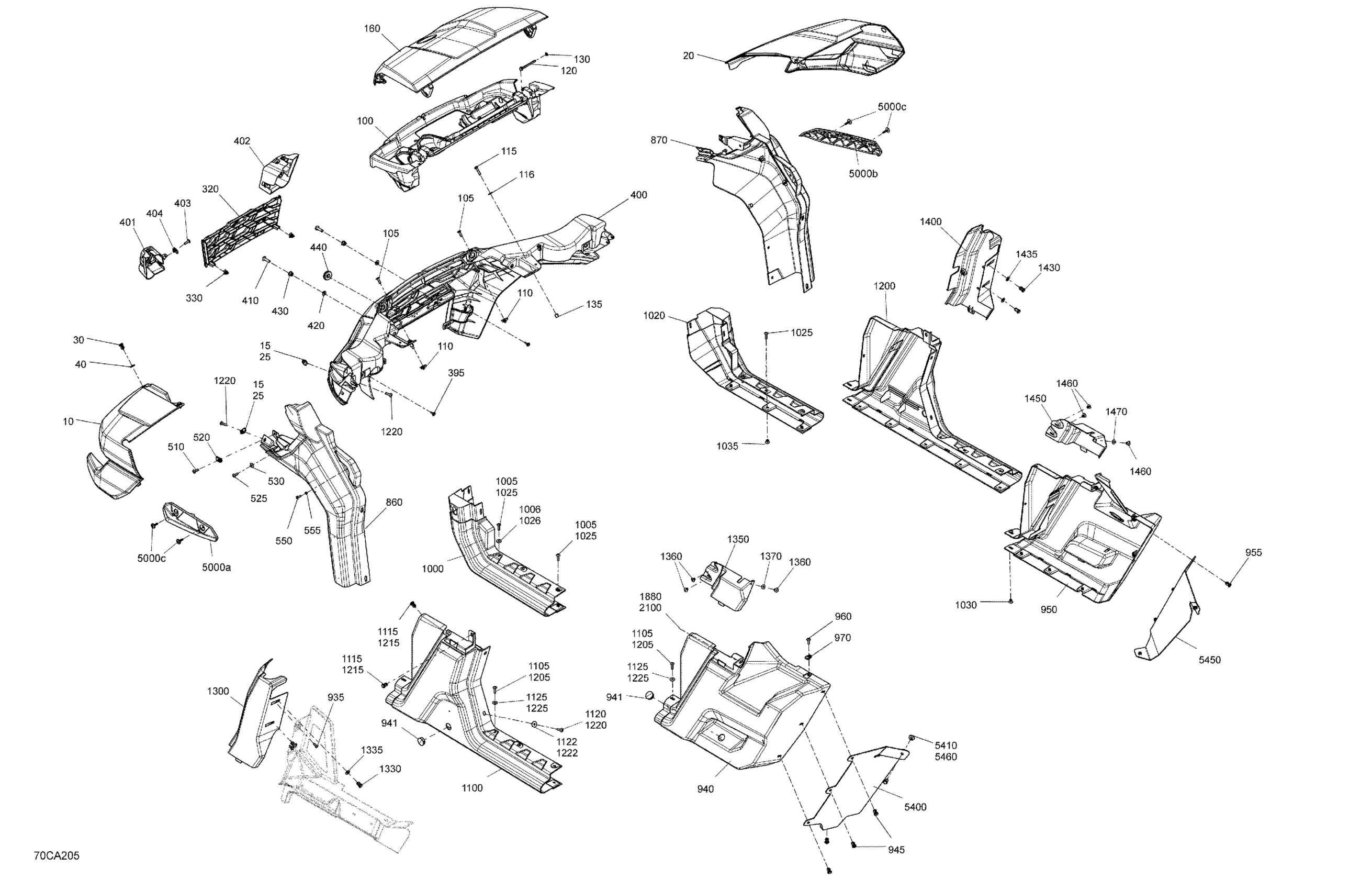

Can-Am Traxter PRO T HD10 - DPS - T Regulation, 2021 Body - System Diagram
