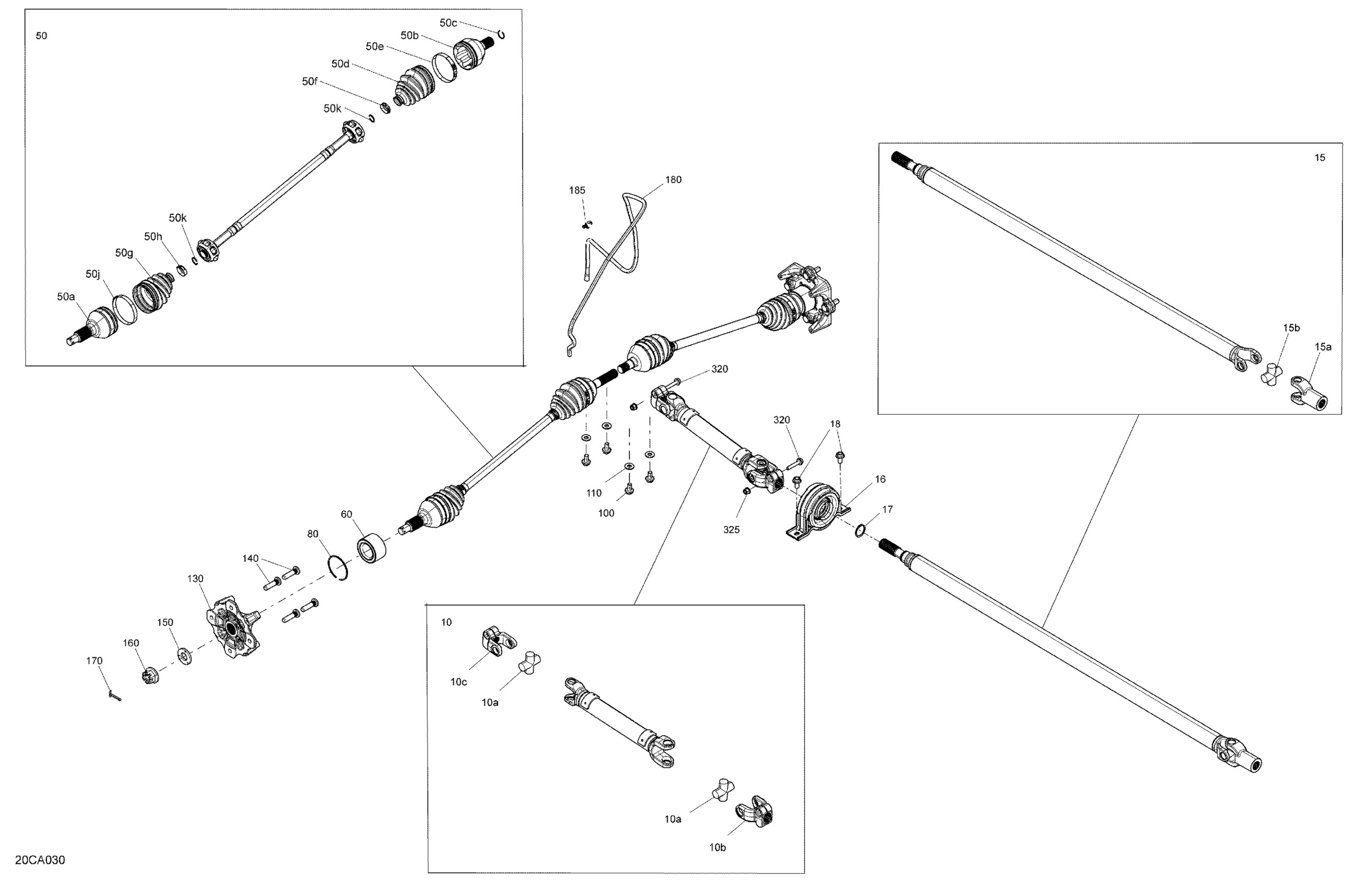

Can-Am Traxter PRO T HD10 - DPS - T Regulation, 2021 Drive - Front Section - Common Parts Diagram

Description

Price

Axle Ass'y

705402125

$203.05

10a

J-Joint Cross Kit

715900402

$87.66

10b

Fixed Yoke

715900400

$59.97

10c

Yoke

715900401

$36.89

Drive Axle Ass'y | Includes 15 to 15b

705403287

$313.82

15a

Yoke

715900401

$36.89

15b

J-Joint Cross Kit

715900402

$87.66

Ball Bearing Ass'y

705403522

$46.12

Snap Ring

293370098

$3.11

Hex. Flange Screw M10 X 20

207502046

$1.74

CV Joint | Includes 50 to 50k

705402778

$233.82

50a

Exterior CV Joint

715900621

$253.82

50b

Plunging Joint

715900624

$115.35

50c

Circlip

715900569

$5.52

50d

Boot Kit, Wheel Side

705401345

$41.51

50e

Oetiker Clamp

715900282

$4.39

50f

Oetiker Clamp, Small

715900283

$4.39

50g

Boot Kit, Différential Side

705401355

$41.51

50h

Oetiker Clamp, Small

715900261

$4.39

50j

Oetiker Clamp, Large

715900262

$7.84

50k

O-ring

715900580

$2.31

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 25

207502546

$1.74

110

Conical Spring Washer 10 mm

234201474

$1.39

130

Wheel Hub

705502338

$115.35

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

150

Conical Spring Washer M20

250200170

$11.00

160

Castle Nut M20

250100193

$6.66

170

Cotter Pin

250400084

$1.79

180

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

185

Clip

414227300

$1.45

320

Hex. Flange Screw M8 X 42

250001050

$0.95

325

Hex. Elastic Flange Nut M8

233281416

$1.25
