Description

Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10a

LH Brake Pads

715900379

$111.51

10b

Pin Kit | Packages STD & PRO

715900384

$10.98

10c

Bleeding Screw

705601017

$6.45

10d

Cap Spring Kit

715900385

$17.66

20

RH Front Brake Caliper | RH Front

705601888

$230.74

20a

RH Brake Pads

715900380

$111.51

20b

Pin Kit | Packages STD & PRO

715900384

$10.98

20c

Bleeding Screw

705601017

$6.45

20d

Cap Spring Kit

715900385

$17.66

30

Master Cylinder | Includes 30 to 30b

705601803

$276.89

30a

Boot Rod Kit

715900373

$50.74

30b

Fork Kit

715900374

$27.66

40

LH Front Caliper Hose | Includes 40 to 40a

705601906

$138.43

41

RH Front Caliper Hose | Includes 41 to 41a

705601907

$152.28

42

Front Master Cylinder Hose

705601915

$138.43

43

Rear Master Cylinder Hose

705601916

$138.43

45

LH Rear Caliper Hose | Includes 45 to 45a

705601910

$152.28

46

RH Rear Caliper Hose | Includes 46 to 46a

705601911

$152.28

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Copper Washer

705601628

$4.34

90

Hex. Flange Screw M8 X 25

207682534

$0.90

95

Hex. Elastic Flange Nut M8

233281416

$1.25

140

Pop Rivet 3/16"

390402200

$0.26

145

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

150

Brake Switch

705601669

$50.74

155

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

170

LH Rear Brake Caliper | Includes 170 to 170d

705601889

$210.74

170a

LH Brake Pads

715900386

$111.51

170b

Pin Kit | Packages STD & PRO

715900384

$10.98

170c

Bleeding Screw

705601017

$6.45

170d

Cap Spring Kit

715900385

$17.66

180

RH Rear Brake Caliper | Includes 180 to 180d

705601890

$210.74

180a

RH Brake Pads

715900387

$111.51

180b

Pin Kit | Packages STD & PRO

715900384

$10.98

180c

Bleeding Screw

705601017

$6.45

180d

Cap Spring Kit

715900385

$17.66

250a

Brake Pedal | Includes 250 to 250a

705601777

$55.35

250b

Lever

705601725

$11.83

250c

Bushing

705601722

$8.45

250d

Spring

705601729

$9.22

250e

Circlip

705601770

$2.99

250f

Hose

219704549

$47.66

250g

Adjustment Handle

708002655

$15.22

260

Brake Pedal Spring

705600792

$9.22

300

O-Ring

293300144

$3.98

350

Inside Sleeve

705601373

$10.98

360

Hex. Flange Screw, M10 X 130

230603046

$6.08

370

Hex. Flange Elastic Nut M10

233201436

$1.74

385

Brake Disc

705601511

$106.12

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

445

Hex. Flange Screw M10 X 25

207502546

$1.74

500

Support

705601567

$13.52

505

Stopper Bracket

705601608

$6.15

510

Hex. Flange Elastic Nut M8

233281414

$1.14

515

Hex. Flange Screw M8 X 20

207682044

$0.92

525

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$110.74

525b

Diaphragm Cover Ass'y

219800350

$17.66

525c

Diaphragm Cover Ass'y

219800350

$17.66

525d

Oil Level Sensor

705601073

$50.74

525f

Spindle Lock

705601294

$14.37

525g

Push Nut | Not shown

211100002

$0.83

530

Hose

705601603

$9.29

535

Oetiker Clamp

293650046

$2.33

540

Pop Rivet 3/16"

390402200

$0.26

1000

Module ESP Wet Prog & Grommet Kit | Includes 1000 to 1000b

703501118

$1,453.82

1001

Shock Damper

710003279

$10.14

1025

Hex. Flange Screw M6 X 16

207661644

$0.61

1035

Hose Clip

705601818

$16.89

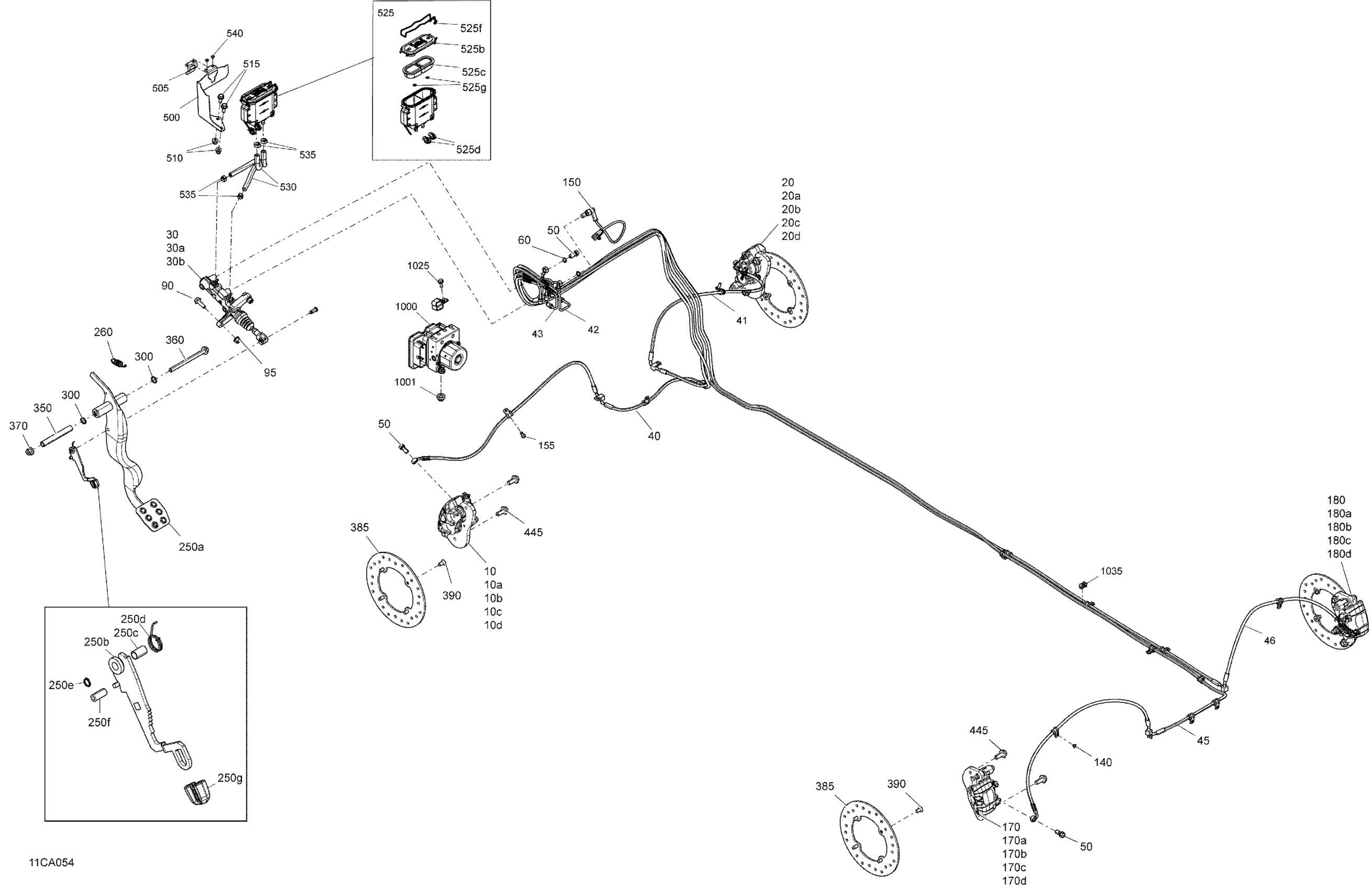

Can-Am Traxter PRO T HD10 - DPS - T Regulation, 2021 Mechanic - Brakes Diagram
