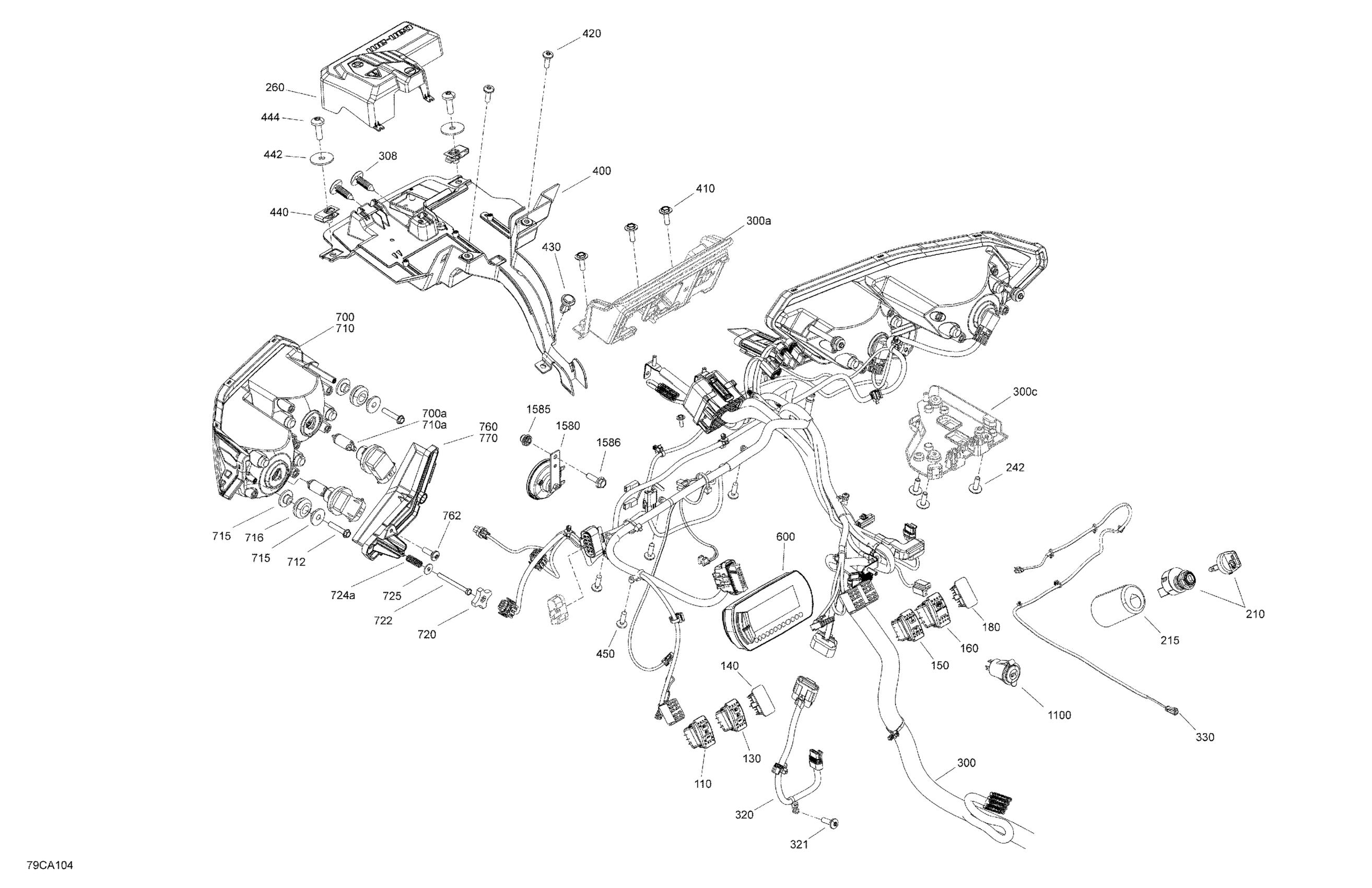

Can-Am Traxter PRO HD10 - DPS - CE, 2021 Electric - Front System Diagram

#

Description
Price

110

Light Switch

710004492

Unavailable

130

Horn Switch

710006788

Unavailable

140

Plug Carling | Australia, Brazil, Europe, Japan

710007173

Unavailable

150

Switch 2X4

710005489

Unavailable

160

Differential Lock Switch

710005470

Unavailable

180

Plug Carling | Australia, Brazil, Europe, Japan

710007173

Unavailable

210

Inter Allumage *Ignition

710007870

Unavailable

215

Key Switch Protector

710005739

Unavailable

242

Screw PT Type K-50 X 16

250000959

Unavailable

260

Junction Block Cover

710006707

Unavailable

300

Main Wiring Harness

710006843

Unavailable

300a

Fusebox Support

710006640

Unavailable

300c

Connector Support

710006706

Unavailable

308

Black, Dart

293730006

Unavailable

320

Throttle Pedal Harness

710006837

Unavailable

321

Torx Screw K50 X 16

250000720

$1.39

330

Safety Belt Wiring Harness

710007042

Unavailable

400

Wiring Harness Support

710006649

Unavailable

410

Screw PT Type K-50 X 16

250000959

Unavailable

420

Torx Screw K50 X 16

250000720

$1.39

430

Tuflok Plastic Rivet

293150230

Unavailable

440

Panel Nut M6 X 1.0

250100198

Unavailable

442

Washer M6

250200029

Unavailable

444

Torx Screw M6 X 20

250000712

$1.74

450

Torx Screw K50 X 16

250000720

$1.39

600

Multifunction Gauge MID | Model XTP

710007409

Unavailable

700

LH Beam | Includes 700 to 700a

710008316

Unavailable

700a

Halogen Bulb H8 12V 35W Blue

715900653

Unavailable

710

RH Beam | Includes 710 to 710a

710008317

Unavailable

710a

Halogen Bulb H8 12V 35W Blue

715900653

Unavailable

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

715

Shoulder Bushing

710004749

Unavailable

716

Grommet

709000582

$4.38

720

Handle

572106600

Unavailable

722

Hex. Screw K40 X 45

250000718

Unavailable

724a

Spring

517168600

Unavailable

725

Flat Washer 4 mm, Stainless

234042600

Unavailable

760

Deep Black, LH Front Headlight Trim

710008973

Unavailable

762

Screw PT Type K-50 X 16

250000959

Unavailable

770

Deep Black, RH Front Headlight Trim

710008974

Unavailable

1100

12V Power Outlet

710005374

Unavailable

1580

Horn

710004791

Unavailable

1585

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

1586

Hex. Flange Screw M6 X 20

207662054

$0.83
