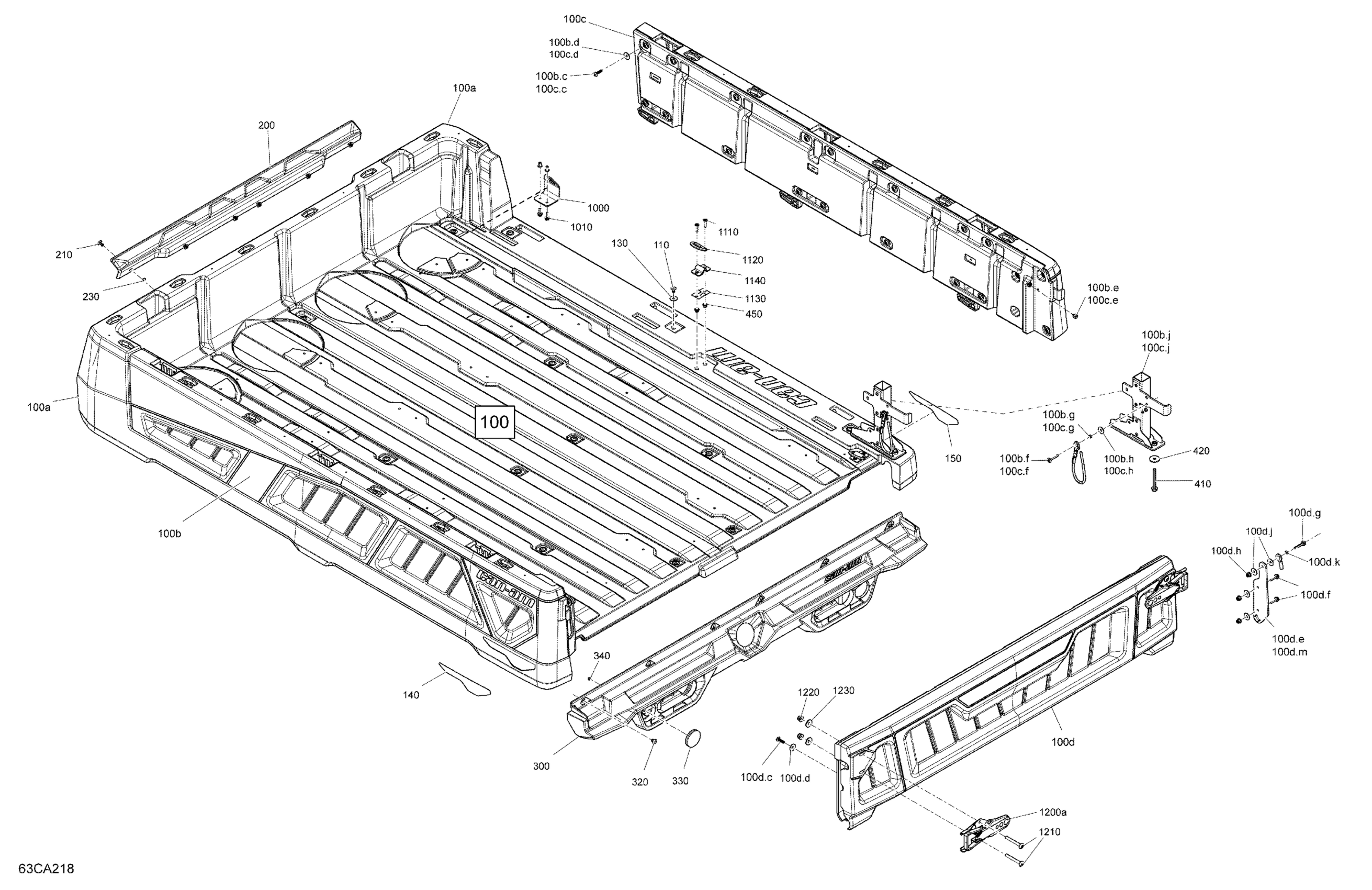

Can-Am Traxter PRO HD10 - DPS - CE, 2021 Body - Cargo - Upper Section Diagram

#

Description
Price

100

Cargo Box Inside Ass'y

715007495

$1,999.97

100a

Cargo Box Inside Ass'y

715007479

$1,999.97

100b

LH Cargo Panel

708303499

Unavailable

100b.c

Hex. Screw Pt K60 X 25

250000980

Unavailable

100b.d

Flat Washer M6.6 X 22

250200162

Unavailable

100b.e

Rubber Bumper

293830005

$5.33

100b.f

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

Unavailable

100b.g

Bushing

293900101

Unavailable

100b.h

Flat Washer M6.6 X 22

250200162

Unavailable

100b.j

LH Panel Support | Includes 100b9 to 100b9a7

708304595

Unavailable

100c

RH Cargo Panel

708303500

Unavailable

100c.c

Hex. Screw Pt K60 X 25

250000980

Unavailable

100c.d

Flat Washer M6.6 X 22

250200162

Unavailable

100c.e

Rubber Bumper

293830005

$5.33

100c.f

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

Unavailable

100c.g

Bushing

293900101

Unavailable

100c.h

Flat Washer M6.6 X 22

250200162

Unavailable

100c.j

RH Panel Support | Includes 100c9 to 100c9a7

708304596

Unavailable

100d

Tailgate Ass'y

708303501

Unavailable

100d.c

Hex. Screw Pt K60 X 25

250000980

Unavailable

100d.d

Flat Washer M6.6 X 22

250200162

Unavailable

100d.e

LH Tailgate Support

708303138

Unavailable

100d.f

Hex. Flange Screw M6 X 25

207662554

$1.48

100d.g

Hex. Flange Screw M6 X 35

207663554

Unavailable

100d.h

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

100d.j

Flat Washer M6.6 X 22

250200162

Unavailable

100d.k

Bushing

293900101

Unavailable

100d.m

RH Tailgate Support

708303141

Unavailable

110

Pop Rivet 3/16”

293150108

$1.23

130

Flat Washer M6.6 X 22

250200162

Unavailable

140

LH Rear Reflector

708303264

Unavailable

150

RH Rear Reflector

708303265

Unavailable

200

Deflector

708303216

Unavailable

210

Pop Rivet 3/16”

293150108

$1.23

230

Washer

517124300

Unavailable

300

Taillight Support

708303496

Unavailable

320

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

330

Red Reflector

705011221

Unavailable

340

Elastic Stop Nut M5

232551414

Unavailable

410

Hex. Flange Screw M8 X 70

207587044

Unavailable

420

Flat Washer M8

250200187

$2.08

450

Insert Half Hex Body M6 x 1.0

250100199

Unavailable

1000

Retaining Plate

708301480

Unavailable

1010

Hex. Flange Screw M6 X 20

207662054

$0.83

1110

Torx Flat Head Screw T-30 S.Grip M6X25

250001107

Unavailable

1120

D-Ring

708302990

Unavailable

1130

Tie-Down Ring Spring

708302991

Unavailable

1140

Tie-Down Ring Bracket

708302992

Unavailable

1200a

Latch Ass'y

511001014

Unavailable

1210

Torx Truss M8 X 65

250000901

$1.56

1220

Elastic Flange Nut M8

233281464

$0.83

1230

Stainless Steel Flat Washer

234082670

Unavailable
